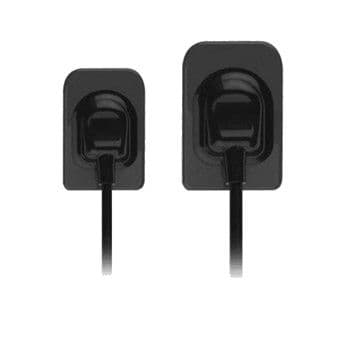

The HV - 01X/02X Intraoral Sensor is designed for advanced dental imaging, featuring a durable Kevlar shell and an ergonomic design for patient comfort. It offers simple PC connection without an external control box, providing efficient and high-quality imaging.
Model-specific documentation
Check the covered model, language and document status before use. The manual supplied with the actual unit remains the controlling reference.
Product datasheet · English
HQS datasheet for the HV-01X/02X: product overview, features and the technical specifications published for this model. Confirm the ordered configuration in your quotation.
Mechanical | Intraoral sensor 01X | 02X |
|---|---|---|
Dimensions (mm³) | 25.0 * 38.5 * 4.5 mm | 31.0* 40.0* 4.5mm |
Effective imaging area (mm²) | 20 * 30 mm | 26* 36 mm |
Pixel matrix | (1.5 M) 1000* 1500 | (2.34 M) 1300 * 1800 |
Detector type | APS CMOS | APS CMOS |
Scintillator type | Direct Deposition CsI | Direct Deposition CsI |
Line length (m) | Standard 3m, optional 5m | Standard 3m, optional 5m |
Pixel size (μm) | 20 | 20 |
Spatial resolution (lp/mm) | Theoretical 25 lp/mm; actual 14–16 lp/mm (high sensitivity), 18–20 lp/mm (high resolution) | Theoretical 25 lp/mm; actual 14–16 lp/mm (high sensitivity), 18–20 lp/mm (high resolution) |
Grayscale | 16 bits, 65535 levels | 16 bits, 65535 levels |
Exposure mode | Smart AED mode | Smart AED mode |
Protection level | Ip68 | Ip68 |
Protocol Support | TWAIN protocol | TWAIN protocol |
Operating system | Windows 7 or above ， 32 / 64 bit | Windows 7 or above ， 32 / 64 bit |
