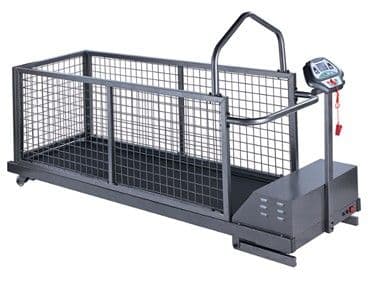

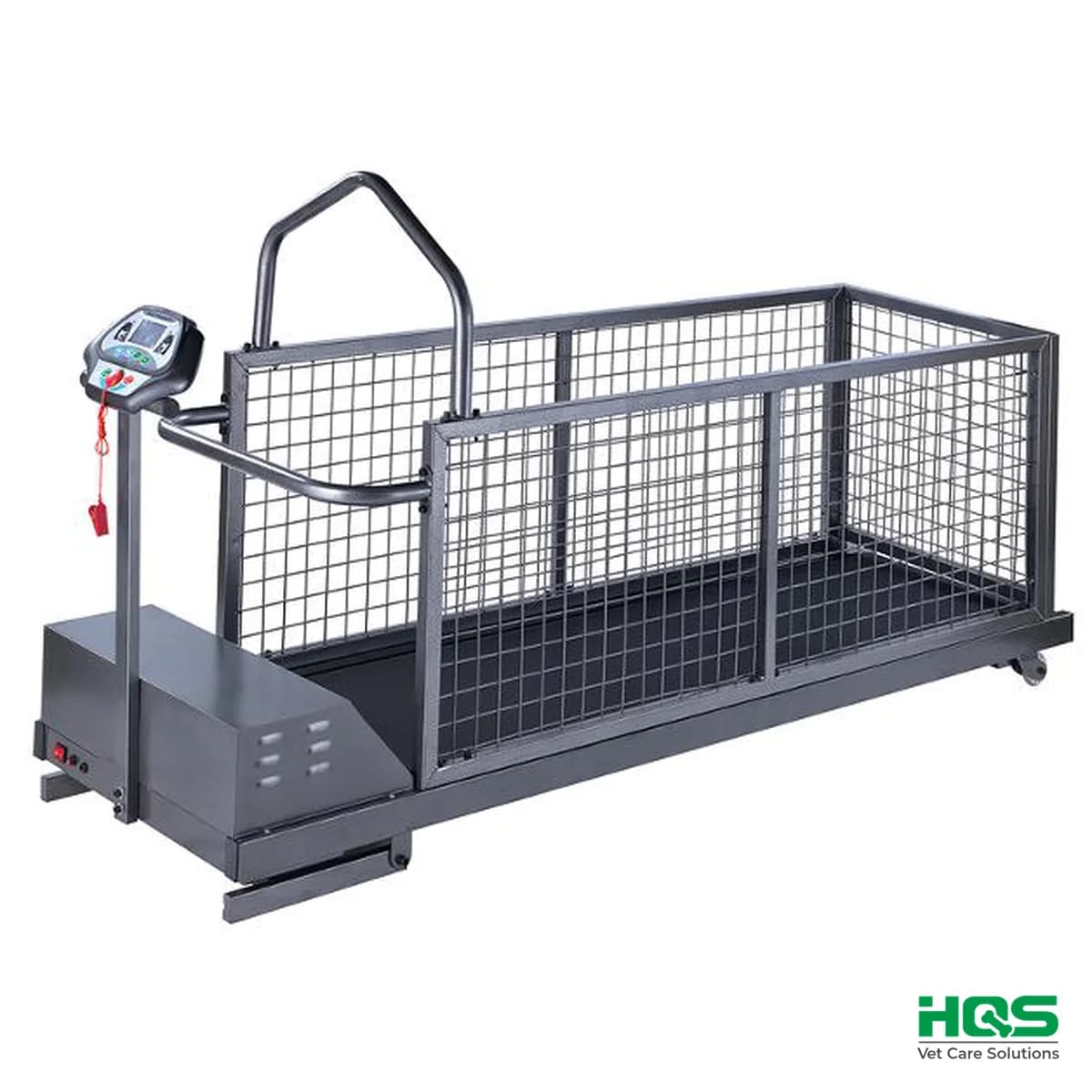

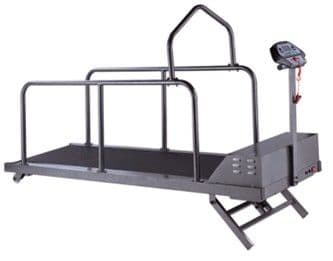

The TM - C400S/C400WS Pet Treadmill is designed for professional veterinary use, offering a robust platform for animal rehabilitation and exercise. With adjustable speed and a durable running surface, it provides a safe and effective environment for pets under veterinary supervision.
Model-specific documentation
Check the covered model, language and document status before use. The manual supplied with the actual unit remains the controlling reference.
Product datasheet · English
HQS datasheet for the TM-C400S/C400WS: product overview, features and the technical specifications published for this model. Confirm the ordered configuration in your quotation.
PARAMETER | SPECIFICATION |
|---|---|
Run Surface Size | 46*177cm |
Run Surface Thickness | 1.6mm |
Run Board Thickness | 15mm |
Allowable Weight | 110KGS |
Lifting Maximum Height | 27cm |
Speed Range | 0.8 - 12km/hour |
Motor | 3HP |
Weight Net Weight | 53.2KGS(C400S),70KGS(C400WS) |
Gross Weight | 65.2KGS(C400S),82KGS(C400WS) |
Product Size | 203*62*116cm |
Różnice podano na podstawie specyfikacji opublikowanych dla poszczególnych modeli. Ostateczną konfigurację prosimy potwierdzić w ofercie.
Ten model należy do serii TM-C300F. Na stronie serii zestawiono wszystkie modele. Przegląd serii
| Parametr | TM-C100/C100W | TM-C200/C200W | TM-C300/C300W | TM-C300F | TM-C300S/C300WS | TM-C400/C400W | TM-C400G/C400WG | TM-C400S/C400WSTen model | TM-C400SG/C400WSG | TM-C400WSH | TM-C402W | TM-C600WSG | TM-J100 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Run Surface Size | 28*85cm | 34*105cm | 40*145cm | — | 40*145cm | 46*177cm | 46*177cm | 46*177cm | 46*177cm | 46*177cm | 68*177cm | 68*259.5cm | 28*85cm |
| Run Surface Thickness | 1.2mm | 1.6mm | 1.6mm | — | 1.6mm | 1.6mm | 1.6mm | 1.6mm | 1.6mm | 1.6mm | 1.6mm | 1.8mm | 1.2mm |
| Run Board Thickness | 12mm | 15mm | 15mm | — | 15mm | 15mm | 15mm | 15mm | 15mm | 15mm | 15mm | 15mm | 12mm |
| Allowable Weight | 80KGS | 100KGS | 100KGS | — | 100KGS | 110KGS | 110KGS | 110KGS | 110KGS | 110KGS | 110KGS | 150KGS | 80KGS |
| Speed Range | 0.8 - 6km/hour | 0.8 - 12km/hour | 0.8 - 12km/hour | — | 0.8 - 12km/hour | 0.8 - 12km/hour | 0.8 - 20km/hour | 0.8 - 12km/hour | 0.8 - 20km/hour | 0.8 - 12km/hour | 0.8 - 12km/hour | 0.8 - 20km/hour | 0.8 - 6km/hour |
| Motor | 200W | 1.75HP | 1.75HP | — | 1.75HP | 3HP | 5HP | 3HP | 5HP | 3HP | 5HP | Inverter motor | 200W |
| Gross Weight | — | — | — | — | — | — | 67KGS(C400G), 79KGS(C400WG) | 65.2KGS(C400S),82KGS(C400WS) | 71KGS(C400SG), 88KGS(C400WSG) | — | — | — | — |
| Product Size | 110*42*93cm | 131*50*86cm | 172*56*98cm | — | 172*56*98cm | 203*62*116cm | 203*62*116cm | 203*62*116cm | 203*62*116cm | 203*62*116cm | 203*85*119cm | 286*87*124cm | 110*42*93cm |
| Weight | Net Weight: 19KGS | Net Weight: 32KGS | Net Weight: 37KGS Gross Weight: 42KGS | — | Net Weight: 48KGS Gross Weight: 53KGS | Net Weight: 55KGS(C400),69KGS(C400W) | Net Weight: 55KGS(C400G),71KGS(C400WG) | — | — | Net Weight: 70KGS Gross Weight: 81KGS | Net Weight: 89KGS G ross Weight: 105KGS | Net Weight: 150KGS Gross Weight: 177KGS | Net Weight: 30KGS Gross Weight: 33KGS |
