Weterynaryjny system radiografii cyfrowej DR-A10

Wprowadzenie — Weterynaryjny system radiografii cyfrowej

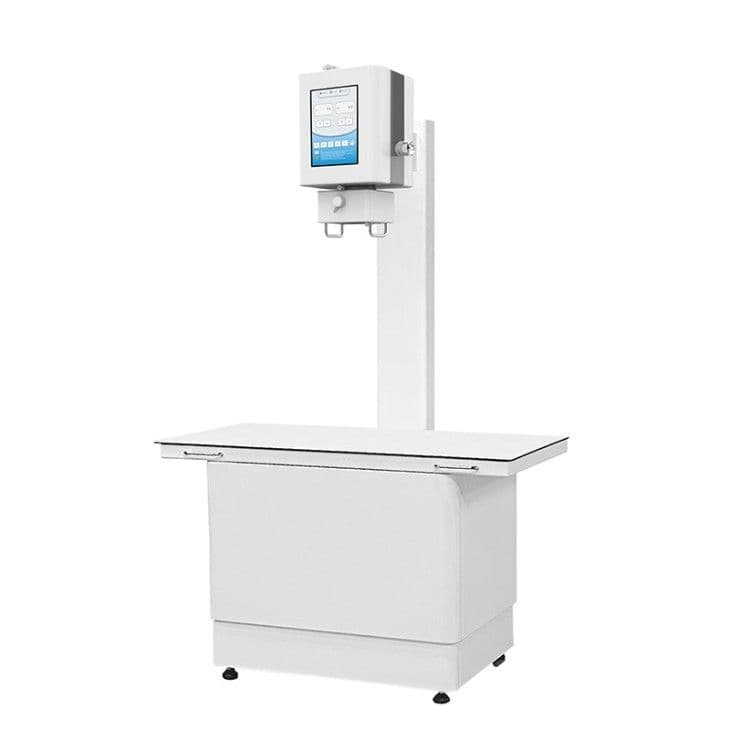

The DR - A10 Veterinary Digital Radiography System is a cost-effective solution applicable to multiple scenarios, including hospitals and field use. It features an integrated X-ray head, three exposure modes (remote, handle, and touch screen control), and a 17x17 inch amorphous silicon flat panel detector for clear imaging. The system also incorporates AED automatic exposure technology for optimal image quality and Bizcon image acquisition software with independent intellectual property rights for an intuitive workflow and practical measurement tools.

Najważniejsze funkcje — DR-A10

• Applicable to multiple scenarios, cost - effective choice.

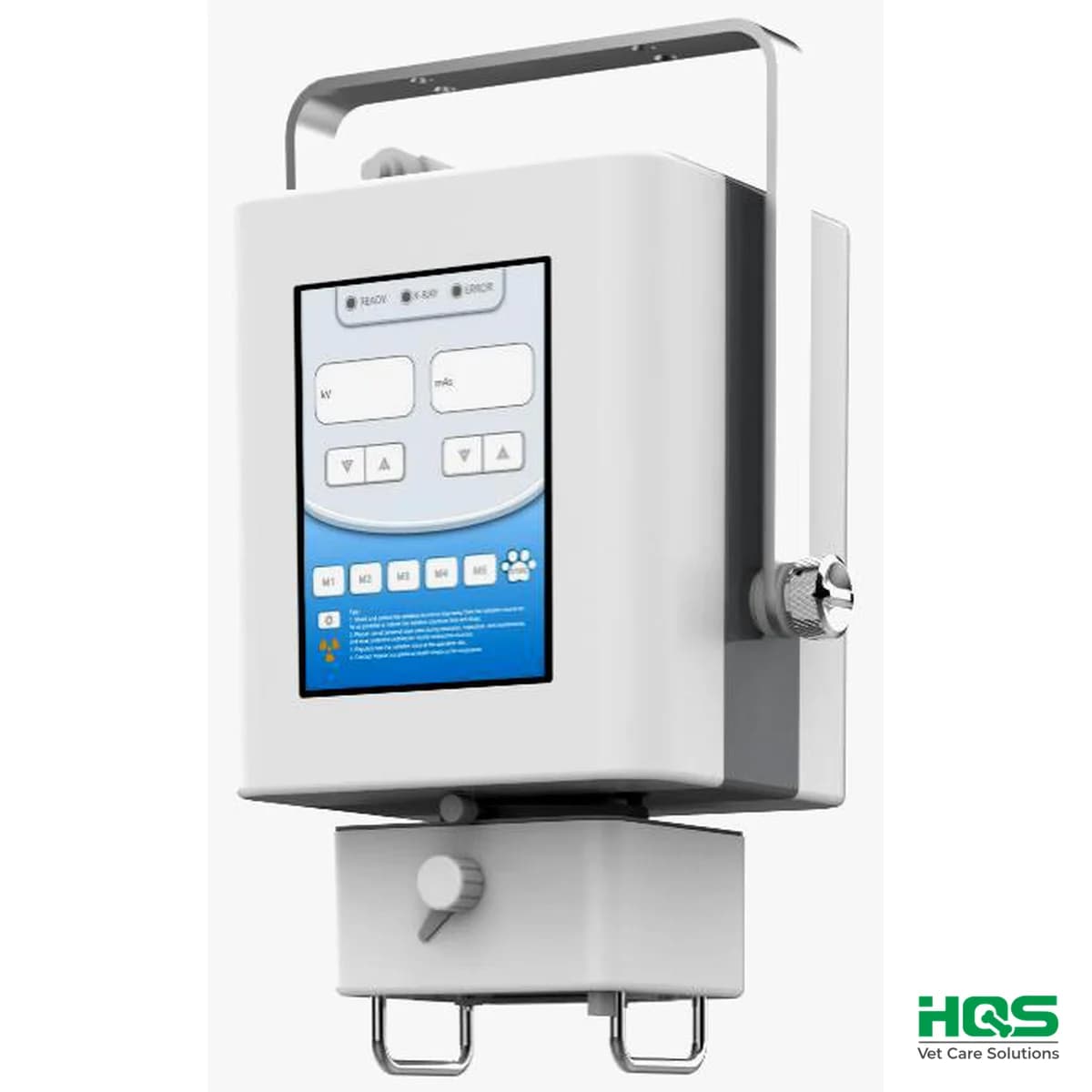

• Removable, integrated integrated X - ray head, suitable for various use scenarios such as hospital and field.
• Three exposure modes: remote control, handle control and touch screen control, to meet the needs of different scenes.
• 17*17 inch amorphous silicon flat panel detector, clear imaging and clear layers.
• AED automatic exposure technology to ensure image quality, reduce scrap rate, and reduce repeated shooting.
• Bizcon image acquisition software with independent intellectual property rights, simple and intuitive workflow design, and practical measurement tools for medical specialists.
• KV, mA, mAS, Thumb nail View, patient Info and so on
• Main Screen Console: Veterinary patient information
• Automatic Pre & Post image enhancement .
• Expands image processing for optimized viewing
• Enhances variable density and form shading
• Variety Measurements
• Application measurements & teaching tools (such as VHS, HD, TPLO, TTA etc)
• One key to capture images into Clipboard
• DICOM sending and Report writing and Printing
• Easy Calibration & User setting
• Anatomical program APR (Kvp, mAs, AEC, focal spot, etc)
• Light and sound indication for X - ray exposure
• Hand - Switch for preparation and exposure control.
• Manual collimator with 6 pair of leafs .
• Accessory rails (cones, filters, etc.)
• Field LED lamp of 160 LUX
• Light indicator for alignment with Bucky .
• Retractable measuring tape .
