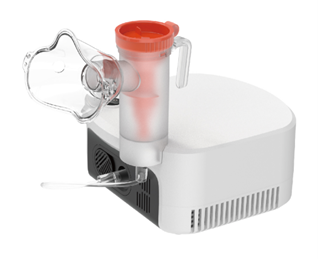

HV-N2 Veterinary Nebulizer

Features

1.Medical-Grade Nebulization Performance

  • Delivers fine, therapeutic-grade mist particles that effectively reach the upper airways, trachea, alveoli, and lower respiratory tract, ensuring optimal respiratory care coverage.

2.Consistent & Gentle Nebulization

  • Stable mist output prevents throat irritation, with smooth, continuous operation for uninterrupted therapy.

  • Oil-free lubricated piston pump enhances durability and promotes healthier, longer-lasting performance.

3.Pet-Friendly & Hygienic Design

  • Soft, hypoallergenic mask material ensures comfort, is odor-free, and supports daily disinfection for safe reuse.

  • Eco-friendly construction maintains safety even with repeated long-term use.

4.Versatile Drug Compatibility

  • Water-free nebulization technology works seamlessly with a wide range of medications, preserving efficacy.

5.Efficient Cooling System

  • Mesh cooling design ensures effective heat dissipation, enabling 24/7 stable operation with intermittent use.

  • Extended lifespan even under prolonged workloads

Technical Specifications

PARAMETER

SPECIFICATION

Power supply

Input: AC220V,50Hz

Maximum atomization rate

0.2mL/ min

The residual amount of liquid medicine

≤1.0mL

Mist particle size(MMD)

4um ± 25%

Output pressure

60-130kPa

Fuse tube

T2A/ 250VΦ2×10

Free flow of compression pump

≥4.5L/ min

Noise

≤60dB(A)

Input power

≤100W

Safety classification

-Equipment that cannot be used in the

-presence of flammable anesthetic gas

-mixed with air or flammable anesthetic

-gas mixed with oxygen or nitrous oxide

Protection level

IPX0

Contraindications

None

Dimension

L 15 x W 15 x H 9CM

Weight (without battery)

About 1250g (without battery)

Normal operating conditions

-Temperature range: 5°C ~ 40°C

-Relative humidity range: 30%~80%

-Atmospheric pressure range: 86kPa~106kPa

Transportation and storage

environment restrictions

Ambient temperature range: -20°C~+55°C

Relative humidity range: 10%~93%

Atmospheric pressure range: 70kPa~106kPa
