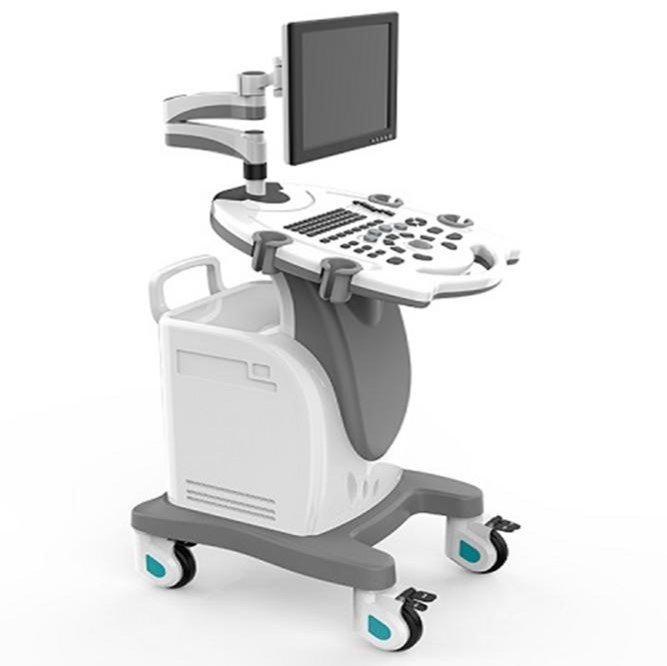

US-S35 Digital B/W Animal Ultrasound Scanner

I. Features

Applications:

• Designed for canine, feline, porcine, bovine, ovine, and equine diagnostics (includes dedicated veterinary imaging software)

System Configuration:

• Mobile cart-based B/W full digital ultrasound platform

• Features three active probe ports for simultaneous connectivity

• Delivers superior image clarity with enhanced resolution

• Intuitive user interface for streamlined operation

Display:

• 15" high-definition LCD monitor

Advanced Imaging Features:

• Tissue Harmonic Imaging (THI) technology

• Real-time histogram analysis

Reporting & Documentation:

• Comprehensive OB reporting functionality

Language Support:

• Multilingual interface: Chinese, English, Spanish, French, Portuguese, Russian

 II. Technical Specifications

 III. Various Probes

1. Convex Array Probe

• Frequency Range: 2.0MHz, 2.5MHz, 3.5MHz, 4.0MHz, 5.0MHz

• Adjustable Depth Settings (16 levels):
  126, 142, 158, 173, 189, 195, 205, 213, 221, 229, 237, 245, 253, 261, 269, 307mm

2. Linear Array Probe

• Frequency Range: 5.5MHz, 6.5MHz, 7.0MHz, 7.5MHz, 9.0MHz

• Adjustable Depth Settings (16 levels):
  35, 42, 49, 62, 69, 76, 83, 90, 97, 104mm

3. Micro-Convex Probe

• Frequency Range: 4.0MHz, 4.5MHz, 5.0MHz, 6.5MHz, 7.0MHz

• Adjustable Depth Settings (16 levels):
  62, 69, 83, 97, 111, 125, 139, 152, 166, 180mm

4. Rectal Linear Probe

• Frequency Range: 5.5MHz, 6.5MHz, 7.0MHz, 7.5MHz, 9.0MHz

•


Adjustable Depth Settings (16 levels):
35, 42, 49, 62, 69, 76, 83, 90, 97, 104mm
