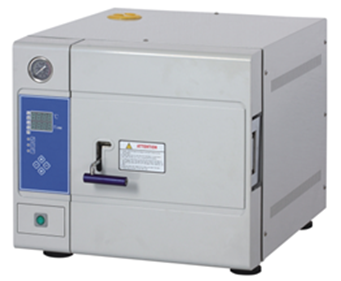

50L-V Table Type Pulse Vacuum Steam Sterilizer For Animal

Product Introduction

1. Air Removal Phase:

• Pulsed exhaust system effectively eliminates cold air pockets

• Ensures uniform temperature distribution throughout the chamber

2. Drying Mechanism:

• Combined vacuum exhaust and jacket heating system

• Achieves complete drying of processed items

3. Sterilization Science:

• Utilizes the latent heat release principle during steam condensation

• Maintains precise high-temperature, high-humidity conditions

• Sustains these parameters for optimized exposure time

4. Microbial Elimination:

• Effectively destroys all pathogenic microorganisms

• Neutralizes even resistant bacterial spores

• Delivers reliable sterilization outcomes

•


The system combines proven physical sterilization principles with advanced process control to ensure consistently effective results.

Technical Specifications

Features

1. Automated Operation

• Fully automated sterilization process with no manual supervision required

• User-friendly operation for convenient handling

2. Advanced Air Removal System

• Pulse-vacuum exhaust (minimum 3 cycles) ensures efficient air removal

• Suitable for both wrapped and unwrapped instruments, including hollow devices

3. Drying Function

• Integrated drying system ensures moisture-free sterilization outcomes

4. Data Recording & Documentation

• Built-in printer for complete sterilization cycle documentation

5. Performance Validation

• Bowie & Dick test function for steam penetration verification

6. Self-Diagnosis & Maintenance

• Automatic fault detection for quick troubleshooting

• Simplified maintenance design

7. Comprehensive Safety Protections

a.Safety Locking System

• Door interlock: Steam injection blocked if door is improperly sealed (audible alarm activated)

• Pressure lock: Door remains locked if chamber pressure exceeds 0.027 MPa

b.Over-Pressure Protection

• Safety valve automatically releases excess pressure if exceeding operational limits

c.Low Water Protection

• Startup prevention if water level is insufficient

• Automatic power cutoff in case of water deficiency

d.Electrical Safety

• Overcurrent protection: Circuit breaker trips to cut power during electrical faults
