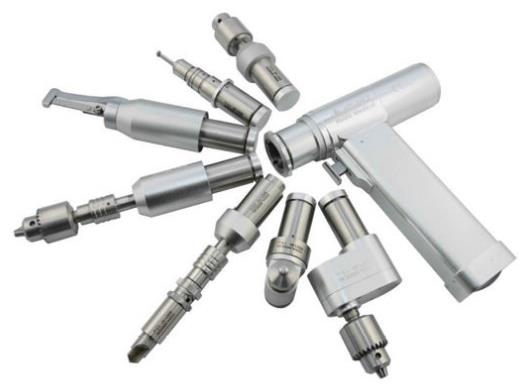

H-DS1 Multifunctional Drill and Saw

Technical data

SPECIFICATION	PARAMETERS
Bone drill speed	0-1300r/m
Cannulated drill speed	0-600r/m
Oscillating saw	0-18000osc/m
Acetabular bone drill	0-500r/m
Craniotomy drill	0-900r/m
Craniotomy mill	0-40000r/m
Sternum saw	0-15000osc/m
Saw non-load noise	≤75dB
Drill non-load noise	≤65dB
Diameter run-out	≤0.5mm
Oscillations	0-15000r/min
Bone drill speed	0-1300r/m

Main Technical Data

Item	Content	Specifications
Hand Piece	Working Voltage	14.4V
	Output Power	≥20W
	Unit rise in temperature	≤25°C
Charger	Input Voltage	AC 220V，50Hz
	Output Power	14.4V，900mA
	Input Power	30VA
Battery	Voltage	14.4V
Battery	Charging time	About 3 hours

Application and Feature

Electric Surgical Drill & Saw: Advanced Orthopedic Power Tools

The?electric surgical drill and saw?is a widely used?power tool in orthopedic surgery, offering significant advantages over traditional industrial-grade equipment. Designed for?medical sterilization, it withstands?high-temperature autoclaving at 135°C and high-pressure conditions up to 1.6Mpa—effectively eliminating bacteria that?fumigation cannot destroy.

Composition

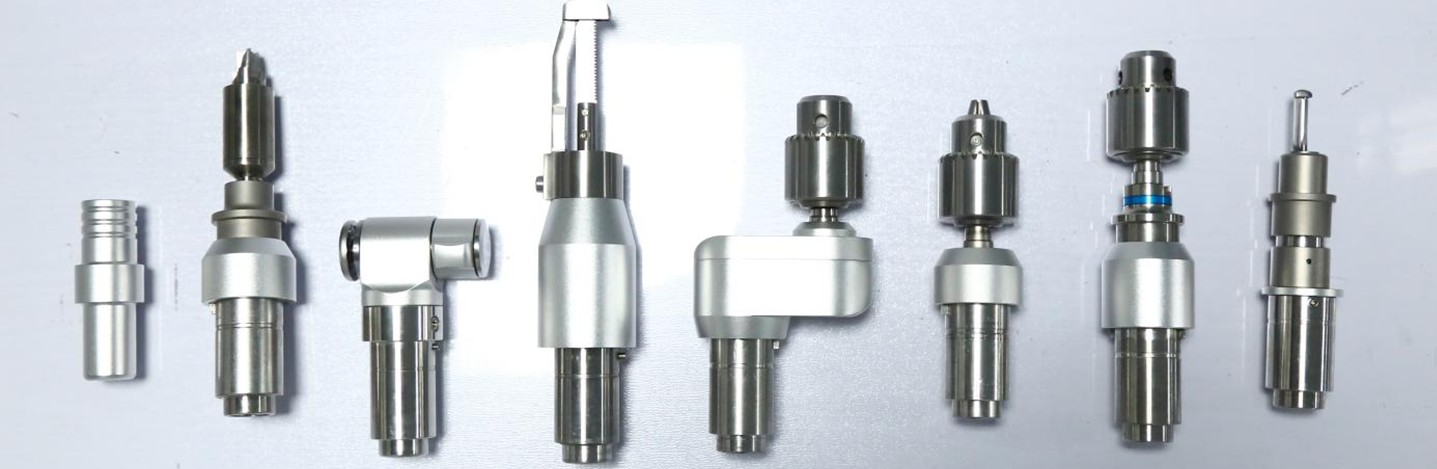

The battery-operated surgical drill and saw consists of three primary components:
