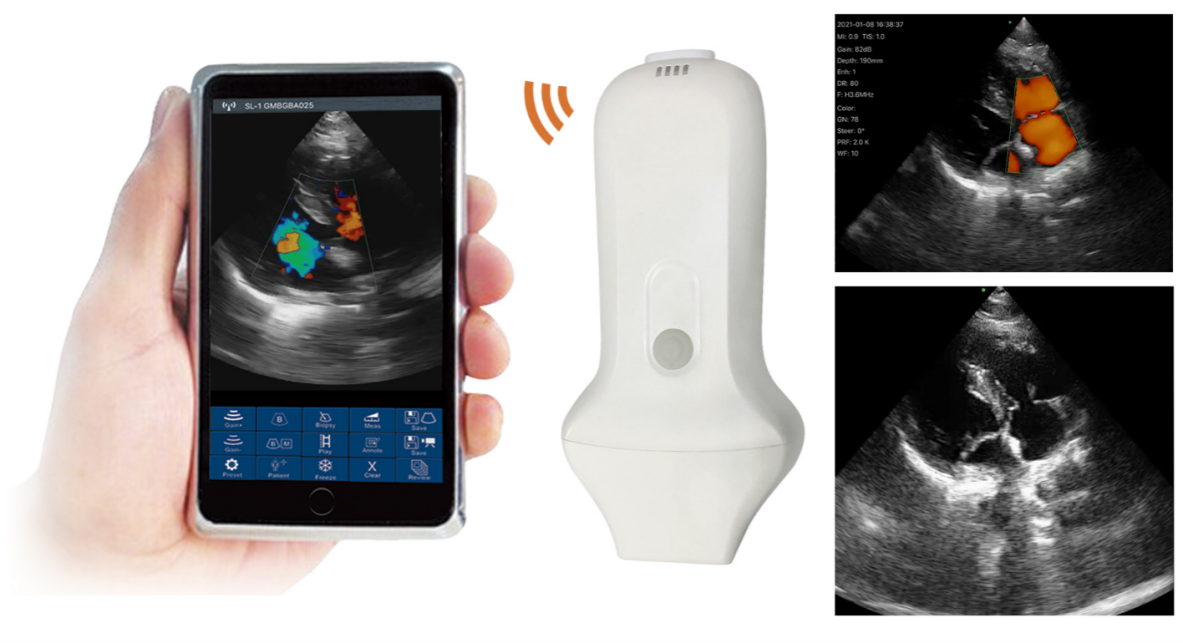

US-4PA Phased Array Probe Type Wireless Color Doppler Scanner

Feature

1.Small and small size, easy to carry.

2.Wireless type without probe cable, working freely.

3.Waterproof design, convenient for sterilization.

4.Remote diagnostic convenience, capability and easy image transfer- Dimension

Specifications

- Scanning mode: Electronic phased array

- Channel of RT: 64

- Display mode: B, B/M, and Color, PW, PDI

- Frequency: central 2.8MHz, cardiac reverse harmonic 3.6mhz, and the transcranial fundamental 2.5MHz

- Display Angle: 80°

- Display Depth: 90/130/160/190mm

- Image Adjust: Gain, DYN, Focus, Depth, Harmonic, Denoise

- Puncture assist function: the function of in-plane puncture guide line, out-of-plane puncture guide line, automatic blood vessel measurement.

- Noise reduction: 0-1-2-3-4

- Gain: 30db-105db

- Dynamic Range: 40/50/60/70/80/90/100/110

- Measure: Length, Area, Angle, Heart

- Image frame rate: 15~20 framescond

- Battery working time: 1.5hours

- Charge: by USB cable charger

- Dimension: 140×60×20mm

- Weight: 150g

- WIFI type: 802.11g/20MHz/5G/450Mbps

- Working system: Apple iOS and Android, Windows

Standard configuration:

Probe Type Ultrasound Scanner        1pcs

USB Connect and Charging Cable      1pcs

Aluminium Suitcase                  1pcs

Optional accessories:

Stainless Steel Puncture Guide, Android or iOS phone/Tablet, Windows PC,

Tablet Bracket, Trolley.
