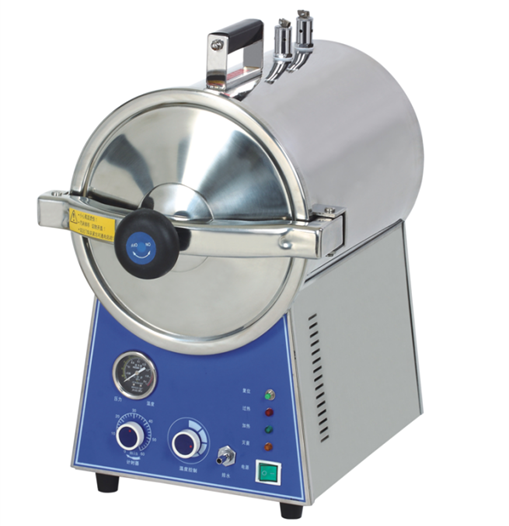

YXQ.DY.250A-I25 Table type steam sterilizer

Features

The YXQ.DY.250A-I is a compact, automated, and safety-compliant tabletop sterilizer designed for:

  • Medical & healthcare facilities

  • Pharmaceutical laboratories

  • Scientific research institutions

Characteristics

  1. Automated Operation

  • Computer-controlled sterilization process

  • User-friendly interface for simplified operation

  1. High-Efficiency Performance

  • Maximum sterilization temperature: 134°C

  • Rapid cycle capability: 4-6 minutes at peak temperature

  1. Anti-Contamination Design

  • Perforated sterilization tray with protective cover

  • Sealable containment prevents post-sterilization air contamination

  1. Safety Mechanisms

  • Automatic protection systems:

    • Over-temperature cutoff

    • Over-pressure safeguard

  1. Durable Construction

  • Full stainless steel body

  • Corrosion-resistant for long service life

Technical Specifications

PARAMETER

YXQ.DY.250A-25

 Sterilizing chamber volume:

25L (φ270X 410mm)

 Maximum working pressure

0.215 MPa

 Maximum working temperature

134

 Adjustment of temperature:

105~ 134

 Timer

0-60 min

 Chamber temperature equal

≤ ±1

 Source power

1.5KW/AC 220V  50Hz

 Sterilizing plate

340 X 200 X 30  mm 3 piece

 Dimension

560 X 350 X 500  mm

 Exterior package dimension

620 X 410 X 570  mm

 N/G. W

18 / 19 Kg
