HB-750-2

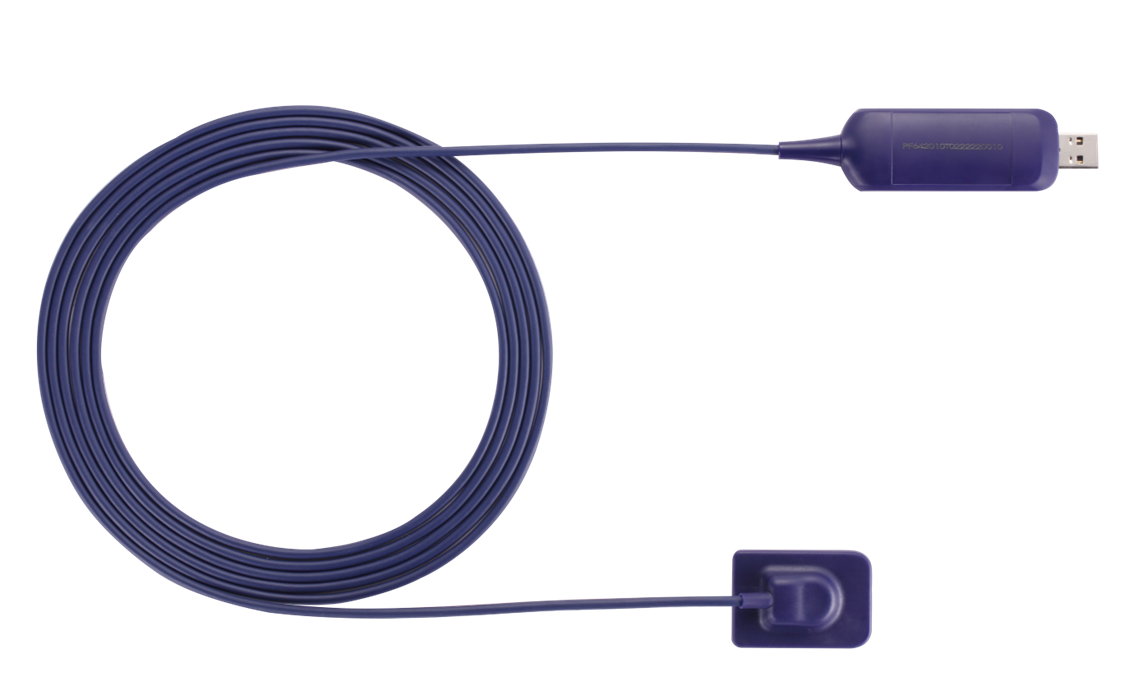

Digital Dental X-ray Sensor
(size 2)
Features
-More Distinctive Colors
The integration of traditional Chinese cultural elements in blue enhances the product's enigmatic aesthetic appeal. Moreover, blue exhibits greater resistance to dust and stains compared to black, making it a more suitable choice for stain-resistant applications.
-Streamlined Engineering Design
More adapted to the oral structure, reducing discomfort during insertion and providing a better experience for patients.
-Ultra-thin Area of Sensitivity
The ultra-thin design makes it easier for the sensor to
adapt to different oral structures, reducing discomfort, improving comfort, and reducing anxiety
Specification:
PARAMETER | SIZE 1 | SIZE 1.5 | SIZE 2 |
Mechanical dimensions
| 25.03X38.53X4.5 | 29.2X43.5X4.5 | 31.62X45.0X4.5 |
Effective imaging area | 20X30 | 24X33 | 26X36 |
Pixel matrix | (1.5M)1000X1500 | (1.89M)1200X16 | (2.34M)1300X1800 |
Detector type:APS CMOS | Grayscale:16 bits, level 65535 | ||
Scintillator:Csl | Protection level:lp68 for Soak disinfection | ||
Line length: Standard 3m | Operation system: Windows 7 and above,32/64bit | ||
Pixel size: 20 μm | Spatial resolution:Theoretical line pair:25lp/mm |
