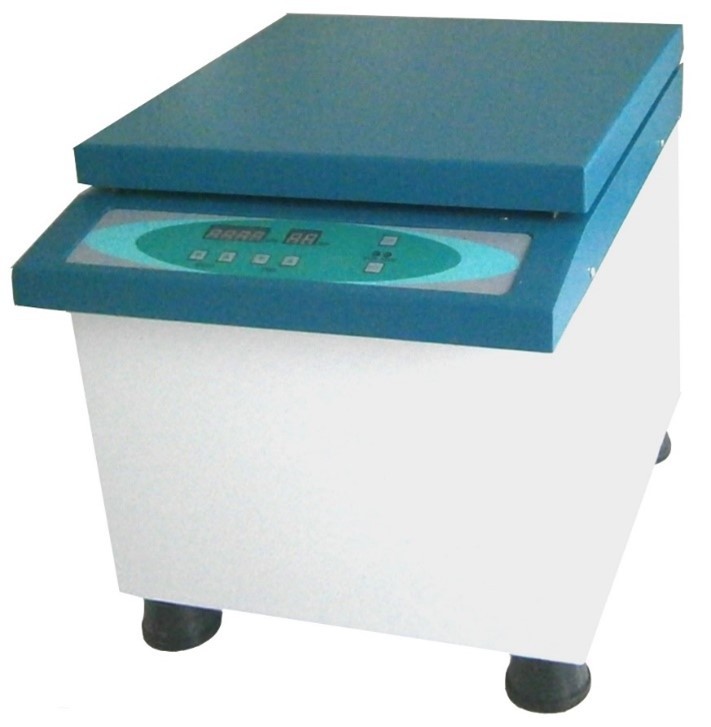

TDL-4C Low Speed Centrifuge

Specifications

Performance Parameters:

1. Operating Duration: Adjustable 0-99 minutes

2. Maximum Relative Centrifugal Force: 2,755 × g

3. Rotational Speed: Up to 4,000 RPM with continuous variable speed control

4. Multi-tube Capacity Swing Rotor:
   • 4×100ml tubes
   • 8×50ml tubes
   • 16×15ml tubes
   • 24×10ml tubes

Physical Specifications:

• Power Supply: Dual voltage (110V/60Hz or 220V/50Hz)

• Unit Dimensions: 450×550×450mm (W×D×H)

• Net Weight: 44kg

Design Features:

• Robust metal housing construction

• High-capacity stainless steel chamber with sound insulation

• Versatile swing rotor accommodates four tube sizes

• High-efficiency brushless motor system

• Digital LED interface displaying real-time speed and duration

Safety Mechanisms:

1.Intelligent monitoring system with:

• Overspeed protection

• Rotor imbalance detection

2.Secure locking system featuring:

• Electromagnetic door locks

• Safety interlock switch

3.Programmable acceleration/deceleration rates

4.Comprehensive error code diagnostics

Application Scope:
Primary use in clinical and research settings for:

1. Serum specimen processing

2. Plasma separation procedures

3. Hospital laboratory diagnostics

4. Biochemical analysis applications
