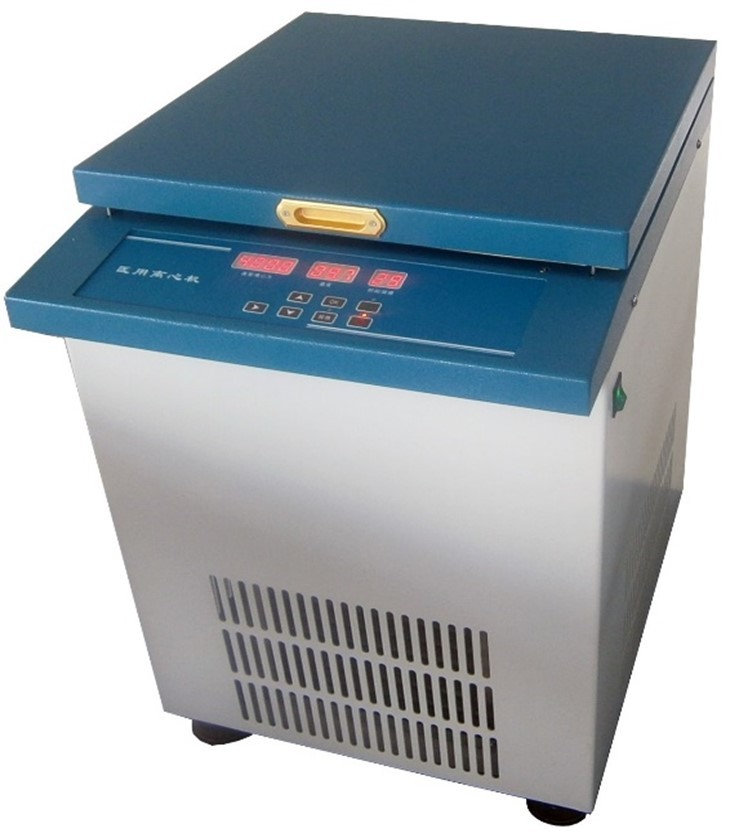

LC-04F Refrigerated Centrifuge (Low Speed)

Specifications

Performance Parameters
• Timer: 0-99 minutes programmable
• Maximum Relative Centrifugal Force: 2,755×g
• Temperature Control Range: -5°C to +30°C (±2°C)
• Power Requirements: 220V, 50Hz AC

Operational Specifications
• Speed Range: 0-4,000 RPM (continuously adjustable)
• Rotor Configurations:

•    Swing Rotor: 100ml×4 tubes

•    Swing Rotor: 50ml×8 tubes

•    Swing Rotor: 15ml×16 tubes

•    Swing Rotor: 10ml×24 tubes
  • Physical Dimensions: 500×630×700mm (L×W×H)
  • Net Weight: 85kg

Advanced Features
• Motor System: Brushless DC frequency conversion
• Refrigeration: High-performance French compressor
• Display: Digital LED (real-time speed, RCF, time display)
• Safety Systems:

•    Electromagnetic door interlock

•    Automatic fault detection and alarm

•    Diagnostic error codes
  • Control Interface: Touch panel operation

Applications
• Designed for liquid-solid separation applications
• Ideal for: blood component separation, cell culture preparation
• Suitable for research laboratories in:

•    Biomedical sciences

•    Clinical diagnostics

•    Pharmaceutical development

•    Food technology

•    Environmental sciences
