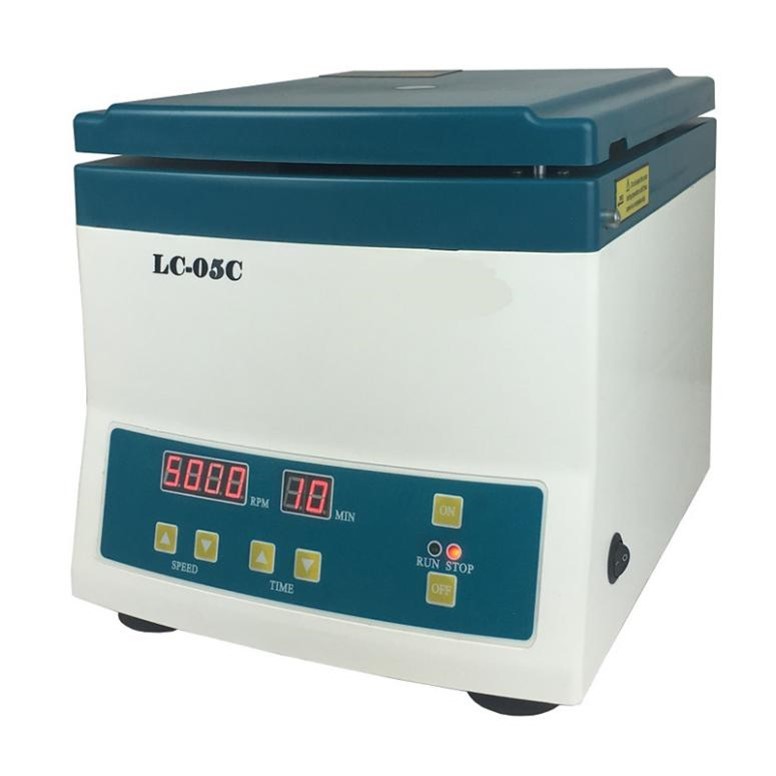

LC-05C Low Speed Centrifuge

Specifications

Technical Parameters:

• Programmable Timer: 0-99 minutes

• Maximum Relative Centrifugal Force: 3,600 × g

• Variable Speed Range: 0-5,000 RPM with continuous adjustment

• Standard Rotor Capacity: 8×20ml tubes (Rotor 1 included)

Physical Specifications:

• Dual Voltage Input: 110V/60Hz or 220V/50Hz

• Space-saving Dimensions: 280×310×265mm (W×D×H)

• Lightweight Construction: 10kg total weight

• Rugged Housing: Reinforced polymer body with metal cover

Control System:

• Microprocessor-based intelligent control

• High-torque brushless motor

• Digital LED interface displaying:

• Current rotational speed

• Remaining run time

• Adjustable acceleration/deceleration rates

Safety Features:

• 1.Protection mechanisms:

• Overspeed warning system

• Imbalance detection alert

• 2.Physical security:

• Mechanical door locking mechanism

• Emergency stop switch

• 3.Diagnostic error code display

Primary Applications:

• Clinical serum testing

• Plasma separation procedures

• Hospital laboratory diagnostics

• Biochemical research applications

Optional Rotors
