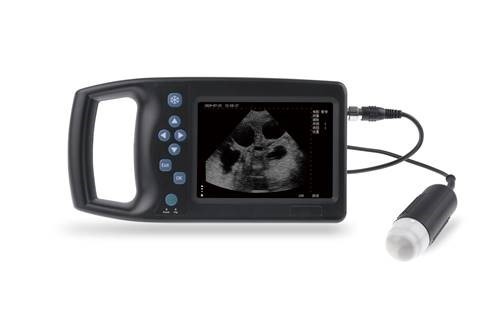

US-M6 Mechanical B/W Ultrasound Scanner

Scanning mode

3.5m mechanical fan scanning

Video playback

256 frames, playback image after detection,   convenient for single person video recording

Preheat function

one button preheat function in winter, no need to   worry about the probe freezing

Four section frequency conversion

2.0MHZ, 2.5MHz, 3.5MHz, 5.0mhz

Grid

0, 1, 2 three modes (point grid, mesh grid), point   adjustable distance, easy to quickly read the measurement target size

Routine measurement

distance, perimeter, area, volume and angle

Operation interface

through up and down keys to select parameters, left   and right keys to adjust size, macro layout, humanized design, easier to   operate;

Storage

127 pictures can be stored permanently

Dynamic range

0-135db

Frame correlation

0-15 step by step

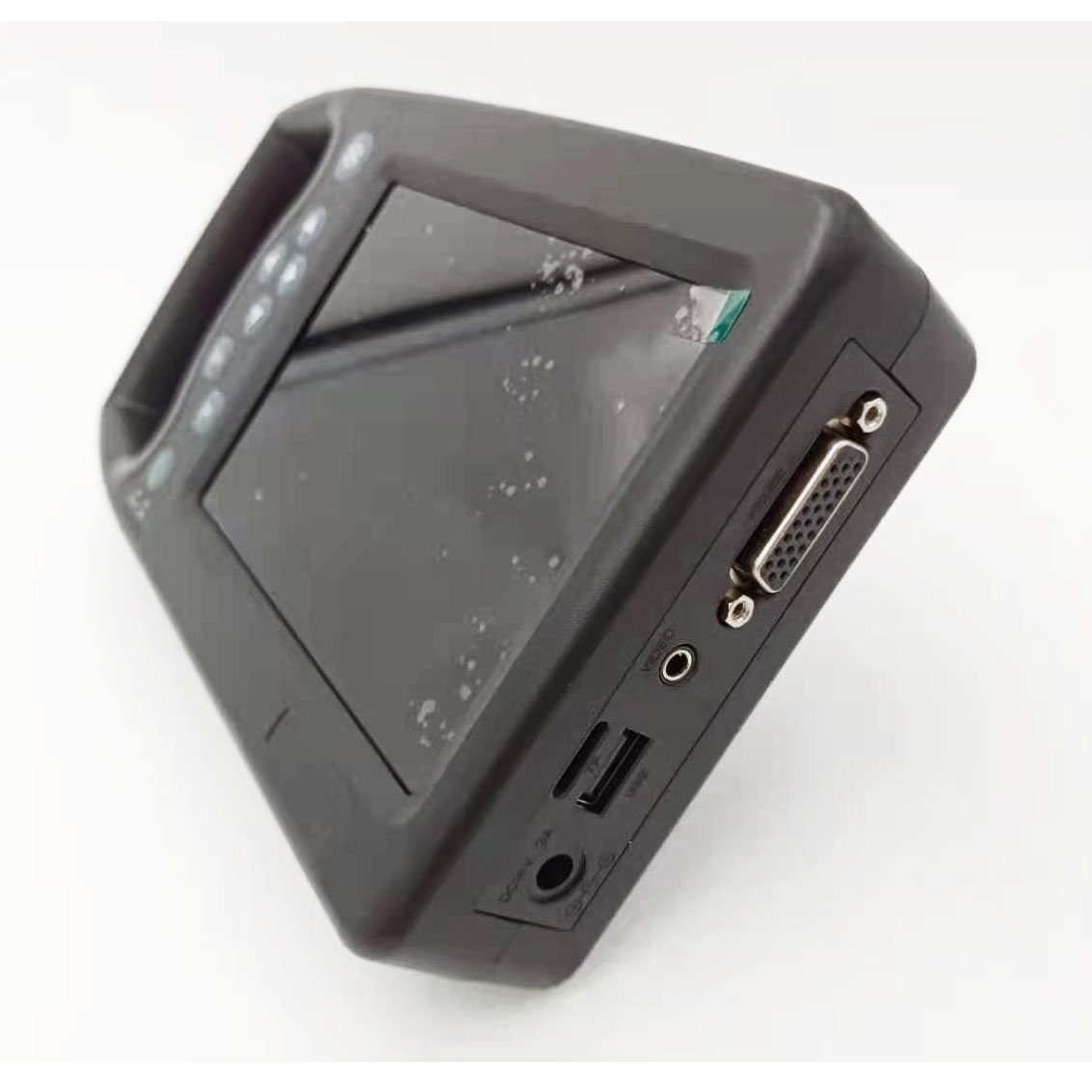

Interface

USB interface, video output interface, power   interface, probe interface

Gain range

0-100db

Near field adjustment range

- 31 ~ 0

Far field adjustment range

0 ~ 31

character brightness 0-255 can be adjusted step by   step; character color 16 kinds can be adjusted

Energy saving setting

0-120 minutes can be adjusted step by step, set the   number of minutes in the specified time without operation, automatic power   off

Host size

245x130x44mm (length x   width x height)

Main engine weight

720g
