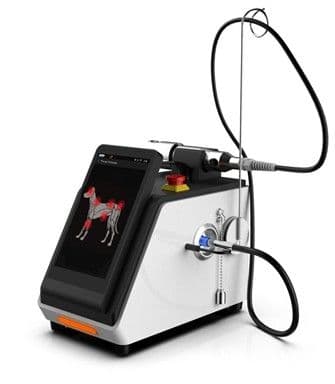

The HDL-PR0 Diode Laser Surgery Therapy system offers advanced laser treatment capabilities with a user-friendly interface, featuring a large color touchscreen, output power calibration, and preprogrammed/customizable parameters. Its compact and lightweight design, along with a quick connector battery box and modular construction, ensures ease of transport and low-cost maintenance. This versatile system is suitable for a wide range of applications including dentistry, lipolysis, EVLT, dermatology, orthopedics, and veterinary procedures.
Model-specific documentation
Check the covered model, language and document status before use. The manual supplied with the actual unit remains the controlling reference.
Product datasheet · English
HQS datasheet for the HDL-PR0: product overview, features and the technical specifications published for this model. Confirm the ordered configuration in your quotation.
PARAMETER | SPECIFICATION |
|---|---|
Wavelength | 650 nm/ 810nm /980nm/1064nm |
Maximum Power | 26.2 w |
Operation Mode | CW, Single , Repeat Pulse |
Pulse Duration | 10 μ s - 3 s |
Repetition Rate | 0.2 Hz - 20KHz |
Aiming Beam | Red Diode Laser of 650nm, 4mW (max), adjustable brightness |
Control Mode | Android OS |
Laser Class | 4 |
Power supply | 100 - 240V, 50 - 60Hz, 400VA |
Safety classification | Class I Type B |
Dimension | 240 * 130 *225mm, 5 kg |
