Video Gastroskop/Kolonoskop FEC-8800

Model: FEC-8800

Giriş — Video Gastroskop/Kolonoskop

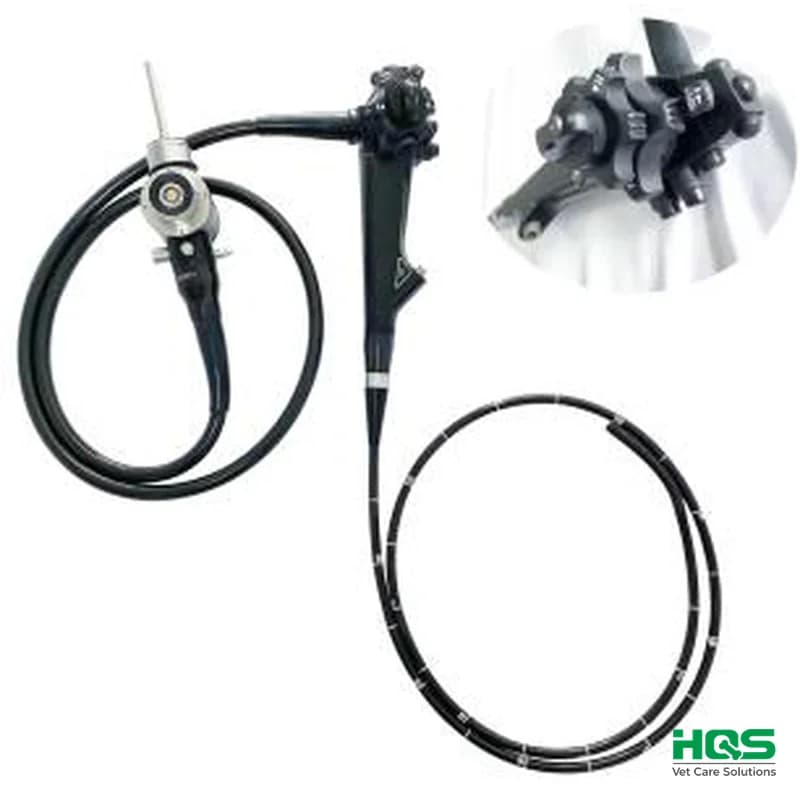

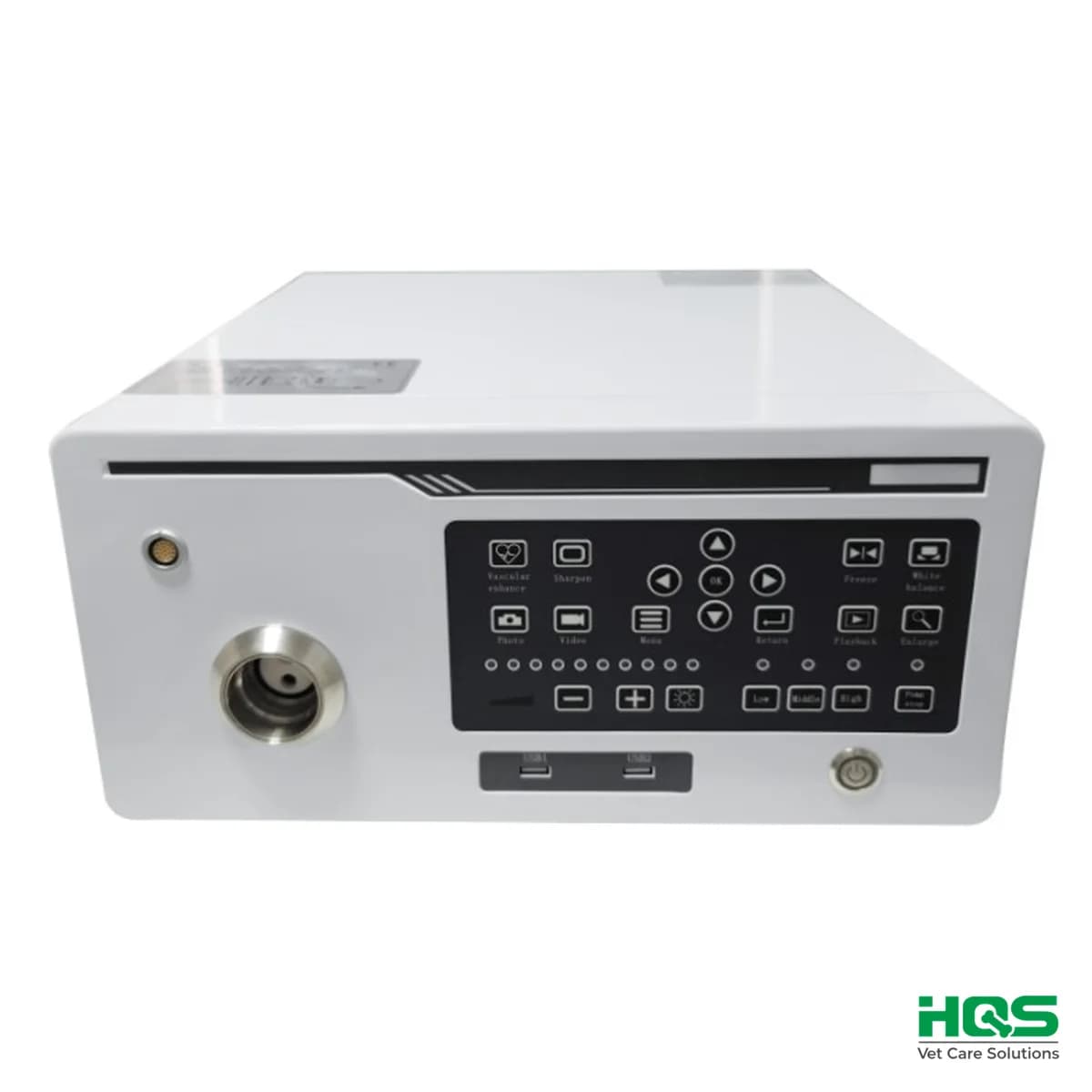

The FEC-8800 is a high-resolution video gastroscope and colonoscope designed specifically for small pets. It features a flexible insertion tube, a wide field of view, and advanced image processing capabilities, including adjustable brightness, contrast, saturation, and electronic amplification. The system integrates with a powerful LED light source and a suction device, offering comprehensive diagnostic and therapeutic potential for veterinary endoscopy.

Temel Özellikler — FEC-8800

Used for Small Pets
Image frozen, video and picture record
Supports automatic and manual modes for sharpness adjustment
Supports automatic and manual modes for gain adjustment
Vascular enhancement can increase vascular clarity
Support 0 - 6 level image bad point correction
Support full screen image freezing and half screen mode to freeze large images and dynamically display small images
With USB interface support picture and video record function and pictures playback function
Support connect same series Video Gastroscope, Colonoscope, bronchoscope, laryngoscope, Cystoscope, Ureteroscope share this tower use

Fiyat listesini e-postayla alın

Model-specific documentation

Documents for FEC-8800

Check the covered model, language and document status before use. The manual supplied with the actual unit remains the controlling reference.

Product datasheet · English

FEC-8800 Video Gastroscope/Colonoscope product datasheet

Public PDF

HQS datasheet for the FEC-8800: product overview, features and the technical specifications published for this model. Confirm the ordered configuration in your quotation.

Product overview
Features
Technical specifications

Covered model: FEC-8800
Length: 4 pages
File: PDF · 425 KB
Web copy prepared: 2026-09-25

View datasheet Download PDF

Need a different language or configuration-specific document?

Documentation center Request checklist Comparison worksheet

Video Gastroskop/Kolonoskop Teknik Özellikler

PARAMETER	SPECIFICATION
Top diameter	≤ Φ 8.0mm
Input tube	≤ Φ 8.0mm
Biopsy channel	≥ Φ 2.0mm
Working length	≥1500mm
Total length	≥1800mm
Field of view	≥140º
Depth of field	≥3 - 100mm
Image solution	≥1,000,000 pixels CMOS
Bending angles	≥up 210º down ≥90º left&right ≥100º
Lamp	LED light (80W white)
Power	220 - 240V; 50 - 60HZ
Color temperature	≥5300K,140000lx illumination
Brightness	0 - 10 level adjustable
Video signal output	HDMI x2, DVI
Air pump pressure	30 - 60 kPa
Air pump power	Strong/ medium/ weak 3 level adjustable
Air flow	4 - 10 L/min
Withe balance	It supports 4 kinds of fixed white balance parameter selection, real - time dynamic white balance mode and manual white balance parameter setting mode, or one click white balance
Gain function	It supports automatic and manual modes, and the manual mode supports 0 - 16 level gain adjustment and 0 - 30 level exposure time adjustment
Electronic amplification	Support 1.2/1.5/1.7/2.0 times 4 - gear electronic amplification function
Package size	603050cm (G.W.:13kgs)
Vessel capacity	1 L
Maximum suction volume	20 L / Min
Monitor	Samsung / Phillips 24” HD LCD monitor 1920X 1080

Bu serideki modelleri karşılaştırın

Aşağıdaki farklar, her model için yayımlanan teknik özelliklerden alınmıştır. Nihai konfigürasyonu teklifinizde teyit edin.

Parametre	FEC-400A	FEC-400D	FEC-8800Bu model
Top diameter	≤ Φ 14.0mm	≤ Φ 12.8mm	≤ Φ 8.0mm
Input tube	≤ Φ 14.0mm	≤ Φ 12.8mm	≤ Φ 8.0mm
Biopsy channel	≥ Φ 6.0mm	≥ Φ 3.2 mm	≥ Φ 2.0mm
Working length	≥5000mm	≥ 3000mm	≥1500mm
Total length	≥5300mm	≥ 3300mm	≥1800mm
Image solution	≥480 , 000 pixels (CCD)	≥480000 pixels (CCD )	≥1,000,000 pixels CMOS
Bending angles	Up ≥180º , down ≥90º , L/R ≥100º , maximum 230	up ≥ 210º , down ≥ 90º , left&right ≥ 100º , maximum 230	≥up 210º down ≥90º left&right ≥100º
Vessel capacity	Not less than 1 L	—	1 L
Illuminance	≥200 , 000Lx , LED light source 30 , 000hours life	≥200,000Lx	—
