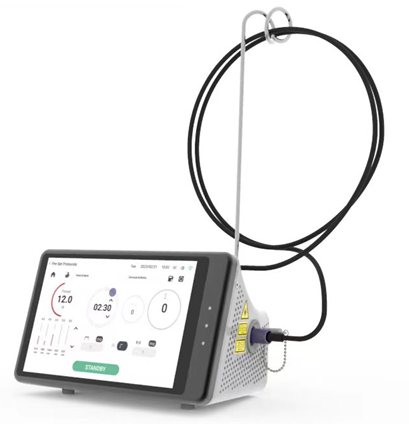

HDL10 Diode Laser Surgery Machine

Laser Type

Semiconductor laser

Wavelength

980 nm + 650 nm

Output Power

CW 15 W, ISP 20 W

Operation Mode

CW, Pulse

Pulse Duration

25μs-10s

Repetition Rate

0.2Hz-20KHz

Transmission system

Contact: fibers of 400μm or 600μm (randomly   assigned) with SMA905 connector; Support 1000um;

Non-contact: fibers, tips and hanpiece

Aiming Beam

Diode Laser of 650 nm, 4mW (max), adjustable   brightness

Cooling

Air cooling and TEC

Control Mode

Color LCD touch Screen

Laser Class

4

Power supply

100-240 V, 50-60 Hz, 400 VA

Fuse

F5AH250V

Safety classification

Class II Type B

Dimension and weight

135*223*130 mm, 1.8 kg

Operating Temperature

+10 ~ +35 ℃

Storage / Transport Temperature

-20 ~ +55 ℃

Humidity

Storage / Transport: 10% - 80%, Operating: 30% -   60%

Waterproof level

IPX1

Footswitch Waterproof level

IPX8
