HDL15A，HDL15B

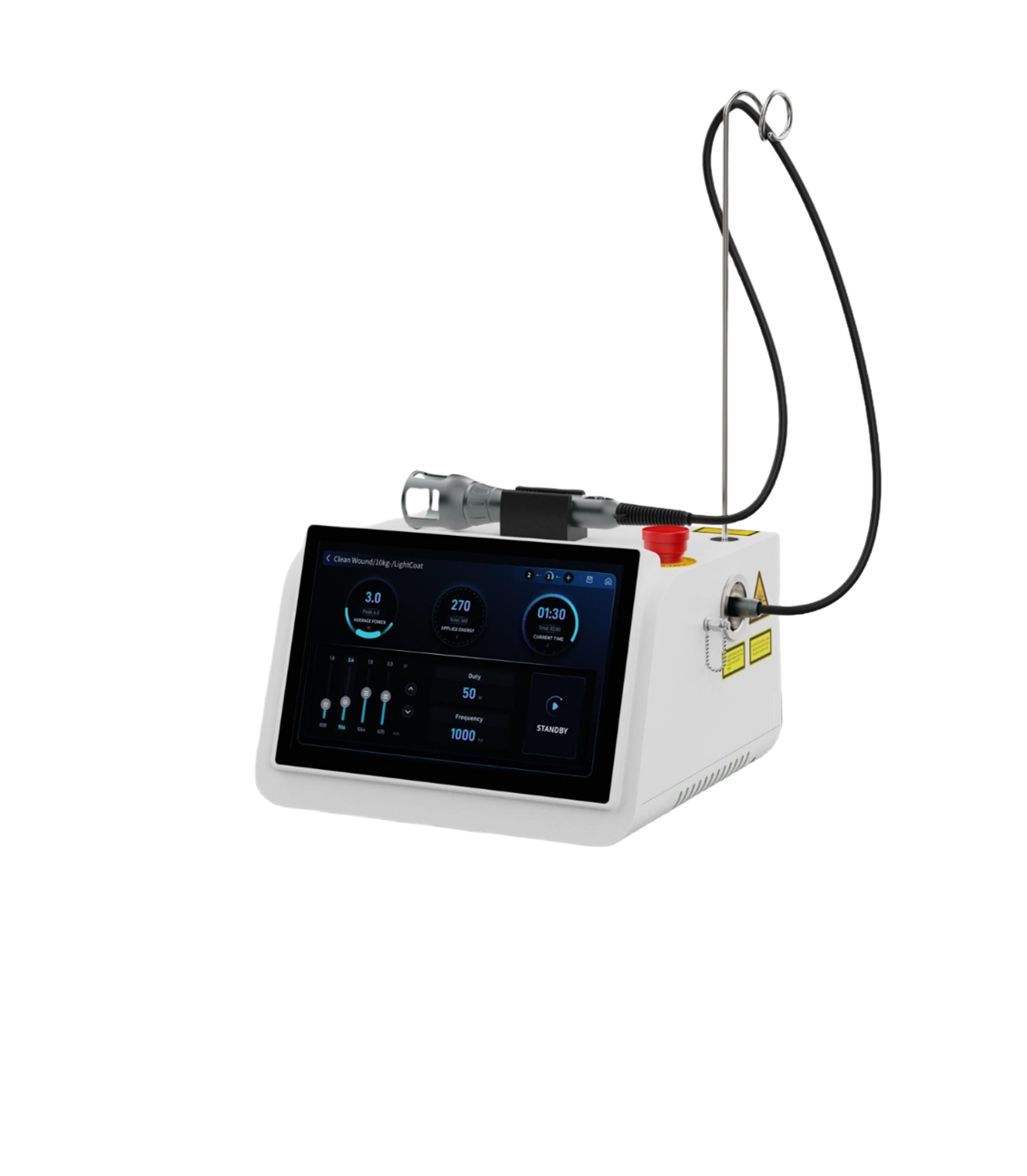

Diode Laser Surgery Machine
Features
1. New friendly used protocol
2. Big color touch screen
3. Quick connector battery box
4. Highly integrated and modular design
5. Compact & lightweight, easy to transport
6. Output power calibration at the end of fibers
7. Preprogrammed and customizable parameters
8. New design inside to make maintenance easy and low cost
9. Scope of application: Dentistry, Lipolysis (Laser fat burning), EVLT (Endovenous laser treatment), Spider Vein, ENT, Dermatology, Orthopedics, PLDD (Percutaneous Laser Dsic Decompression), Neuro surgery, Gynaecology, General surgery, Therapy, Veterinary.
Technical Specifications
PARAMETER | SPECIFICATION | |
Model | HDL15A | HDL15B |
Laser Type | Semiconductor laser | |
Wavelength | 1064 + 980 + 810 + 650 nm | 1064 + 980 + 915 + 810 + 650 nm |
Output Power | CW 45.5 W, ISP 75.5 W | CW 42 W, ISP 52 W |
Operation Mode | CW, ISP | |
Pulse Duration | 10μs-3s | |
Repetition Rate | 0.2Hz-20KHz | |
Transmission system | Contact: fibers of 400μm, 600μm and 1000μm with SMA905 connector; Non-contact: fibers and tips | |
Aiming Beam | Diode Laser of 650 nm, power＜5 mW, adjustable brightness | |
Cooling | Air cooling and TEC | |
Control Mode | 10.1″ Color LCD touch Screen | |
Laser Class | 4 | |
Power supply | 100-240 V, 50-60 Hz, 400 VA | |
Fuse | F5AH250V | |
Safety classification | Class I Type B | |
Dimension and weight | 260*275*200 mm, 4.2 kg | |
Operating Temperature | +10 ~ +35 ℃ | |
Storage / Transport Temperature | -10 ~ +50 ℃ | |
Humidity | Storage / Transport: 10% - 80%, Operating: 30% - 60% | |
Waterproof level | IPX1 | |
Footswitch Waterproof level | IPX8 | |
