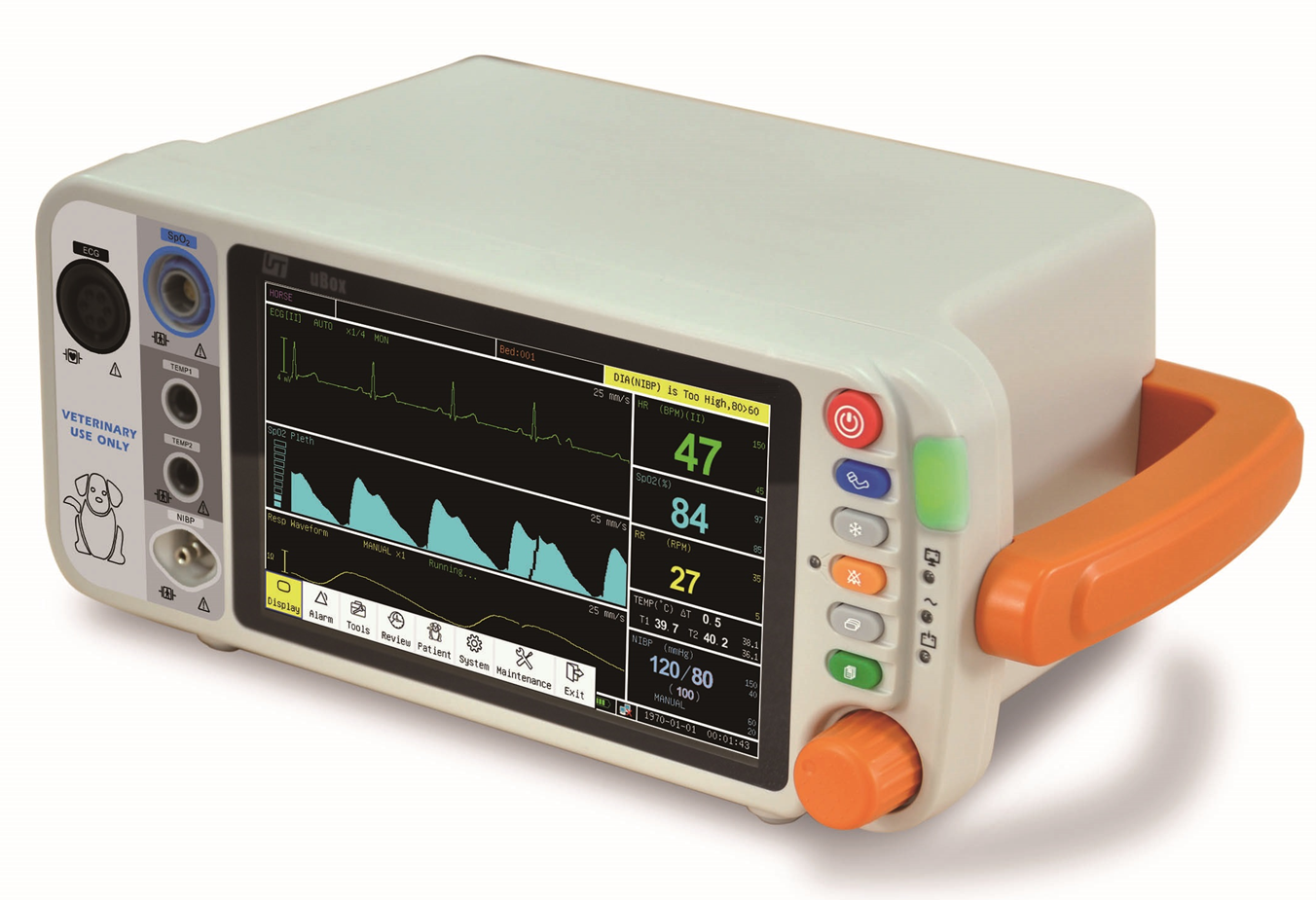

HM-200V Multiparameter Monitor (7 inch)

Product Features

1. 7" High-Resolution Color LCD - Clear visualization of all parameters

2. Veterinary-Specific Design:

• Specialized veterinary calibration

• Exclusive veterinary branding

• Expanded measurement ranges for animal patients

3. Comprehensive Monitoring:

• Multi-parameter veterinary monitoring

• Dedicated veterinary accessories

4. Clinical Applications:

• Designed for pet hospitals and animal clinics

• Suitable for various veterinary specialties

Monitoring Parameters

ECG System

• Lead Configuration:

• 5-lead placement (RA, LA, RL, LL, V)

• Selectable leads: I, II, III, V, aVF, aVL, aVR

• Display Options:

• 1 or 3-channel waveform display

• Adjustable gain: 0.25-4mm/mV (auto-setting available)

• Variable sweep speeds: 6.25-50mm/s

• Performance:

• Heart rate range: 20-350 BPM

• Accuracy: ±2 BPM or ±2%

• ST segment analysis capability

NIBP Monitoring

• Oscillometric measurement with step-down deflation

• Measurement Ranges:

• Systolic: 40-270mmHg

• Mean: 30-220mmHg

• Diastolic: 20-200mmHg

• Operation:

• Typical measurement time: 30-50 seconds

• Configurable alarm ranges (1mmHg increments)

Temperature Monitoring

• Dual-channel capability

• Specifications:

• Range: 25-45°C

• Accuracy: ±0.2°C (plus sensor tolerance)

• Resolution: 0.1°C

SpO₂ Monitoring

• Parameters:

• Saturation range: 0-100%

• Accuracy: ±2% (70-100% range)

• Pulse rate: 30-250 BPM

Respiration Monitoring

• Range: 0-120 rpm

• Accuracy: ±1 rpm

Optional EtCO₂ Monitoring

• Capabilities:

• Range: 0-150mmHg

• Accuracy: ±2mmHg

• Respiration rate: 2-150 rpm

• Fast 10-second preheating

Physical Specifications

• Dimensions: 300×180×129mm (11.81×7.09×5.08 inches)

• Weight: 2.05kg (4.52lbs)

• Environmental:

• Operating: 0-50°C, 15-95% humidity

• Storage: -40-75°C, 10-95% humidity

Power System

• Input: 100-240V AC, 50/60Hz

• Battery:

• Full charge time: 3 hours

• Operating time: >5 hours

• Power consumption: 35W

Standard Configuration

• Veterinary-optimized monitoring system

• Complete set of veterinary accessories

Clinical Benefits

• Specifically calibrated for animal physiology

• Robust construction for veterinary environments

• Comprehensive parameter monitoring

• Easy-to-use interface for veterinary staff
