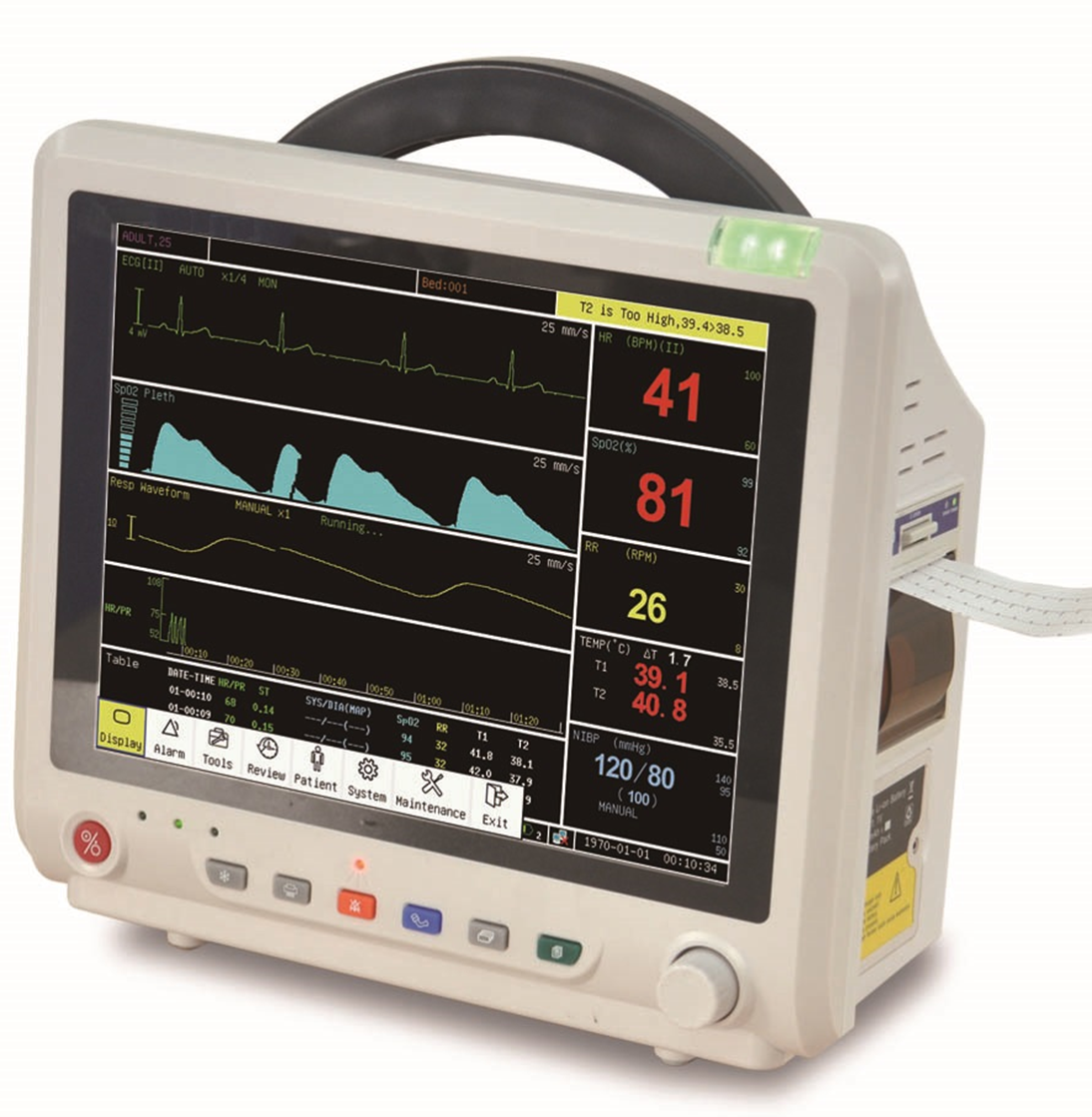

HM-500V Multiparameter Monitor (12.1 inch)

Product Features

1. 12.1" High-Resolution TFT Display - Vibrant color visualization with optimal viewing angles

2. Flexible Display Options - Multiple configurable viewing modes for different clinical needs

3. Comprehensive Alarm System - Three-tier visual/audible alerts with wide-angle indicator lights

4. Network Connectivity - Seamless integration with central monitoring systems (wired/wireless)

5. Patient Data Management - Advanced information system for comprehensive record-keeping

Technical Specifications:

ECG Monitoring:

• Lead Configuration:

• 5-lead placement (RA, LA, RL, LL, V)

• Selectable leads: I, II, III, V, aVF, aVL, aVR

• Display Options:

• 1 or 3-channel waveform display

• Adjustable gain: 0.25-4mm/mV (auto-setting available)

• Variable sweep speeds: 6.25-50mm/s

• Performance:

• Heart rate range: 20-350 BPM (±2 BPM or ±2% accuracy)

• ST segment analysis capability

NIBP Monitoring:

• Oscillometric measurement with step-down deflation

• Measurement Ranges:

• Systolic: 40-270mmHg

• Mean: 30-220mmHg

• Diastolic: 20-200mmHg

• Typical measurement cycle: 30-50 seconds (max 120s)

• Configurable alarm thresholds (1mmHg increments)

Multi-Parameter Monitoring:

SpO₂:

• Range: 0-100% (±2% accuracy at 70-100%)

• Pulse rate: 30-250 BPM

Temperature:

• Dual-channel monitoring

• Range: 25-45°C (±0.2°C accuracy)

• Resolution: 0.1°C

Respiration:

• Rate: 0-120 rpm (±1 rpm accuracy)

Optional EtCO₂:

• Measurement range: 0-150mmHg (±2mmHg)

• Fast 10-second preheating

System Specifications:

Power & Connectivity:

• Universal power input: 100-240V AC, 50/60Hz

• Rechargeable lithium battery:

• 3-hour full charge

• 5 hours continuous operation

• 35W power consumption

Environmental:

• Operating: 0-50°C, 15-95% humidity

• Storage: -40-75°C, 10-95% humidity

Physical Dimensions:

• 183×324×324mm (7.2×12.76×12.76 inches)

• Weight: 3.75kg (8.27lbs)

Standard Configuration Includes:

• Complete monitoring package:

• ECG/respiration/temperature/SpO₂/NIBP

• Lithium battery

• Power cord

Optional Accessories:

• EtCO₂ module

• Data recorder

• Mobile trolley

• Wall mount bracket

• Central station software

Clinical Advantages:

• Enhanced patient safety through comprehensive monitoring

• Flexible configuration for various clinical settings

• Reliable performance in diverse environmental conditions

• Streamlined workflow with advanced data management

• Expandable functionality through optional modules
