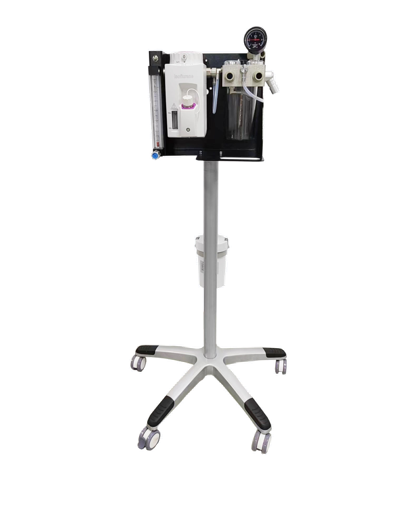

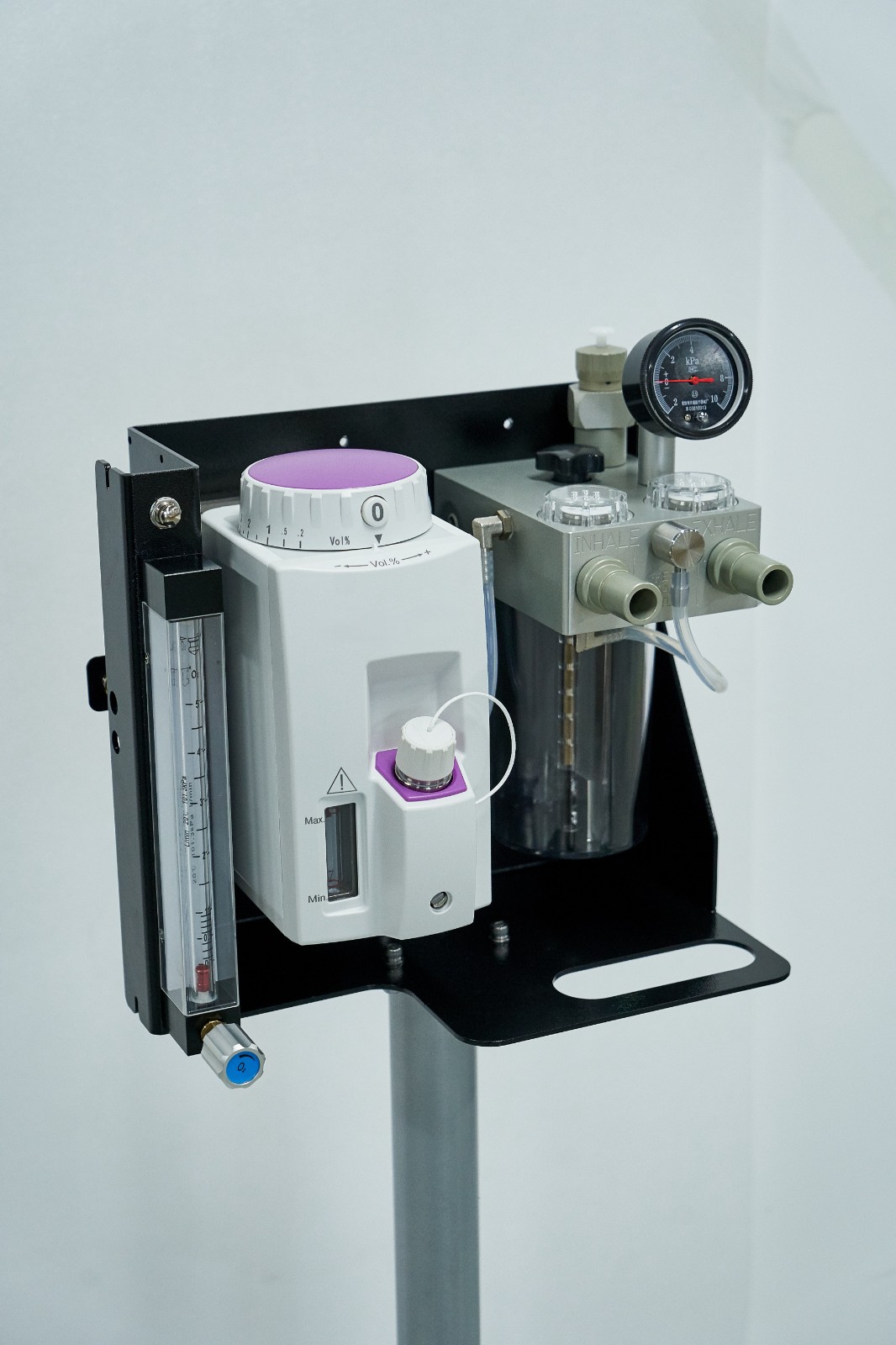

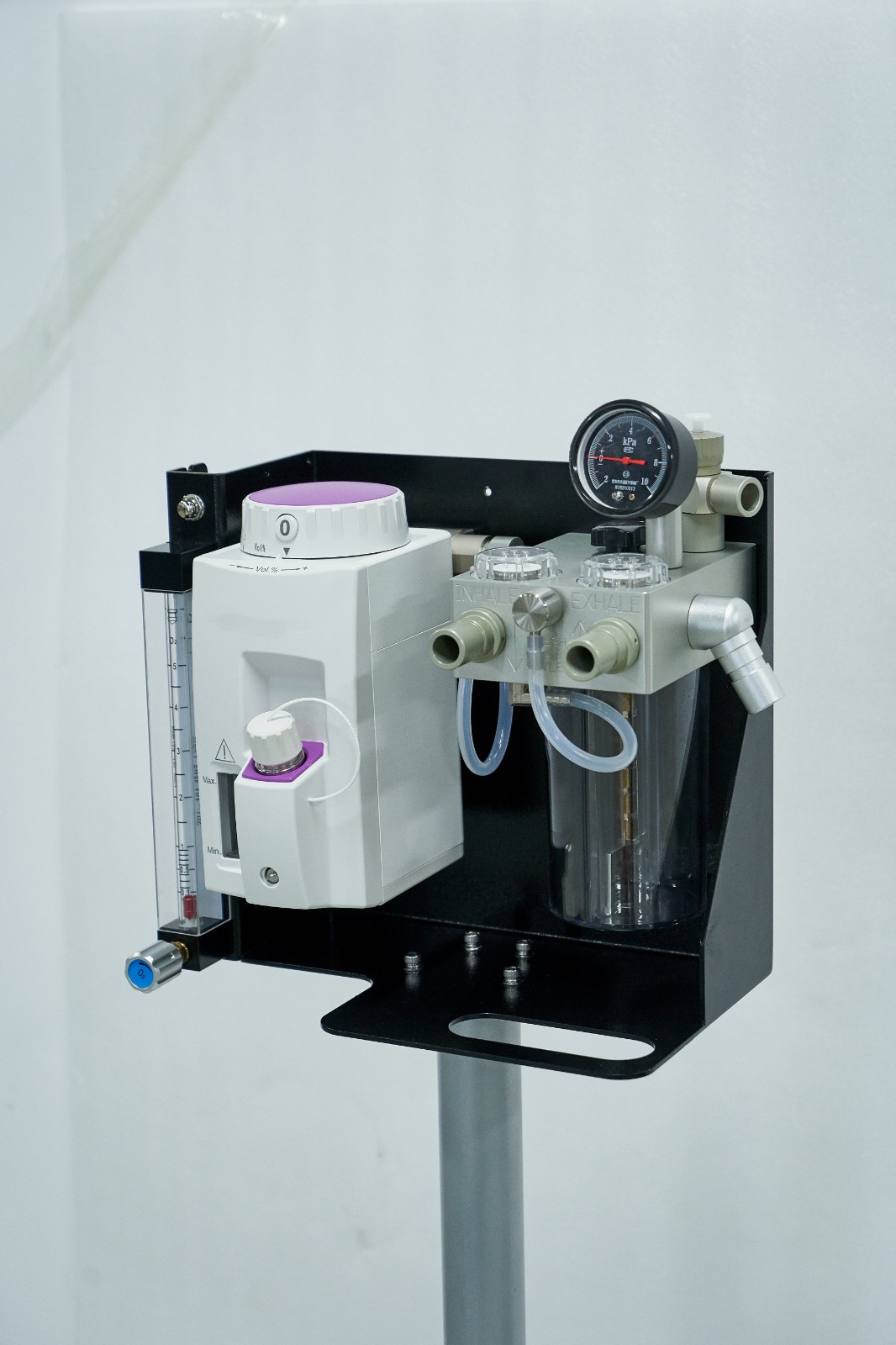

H1200-1 Anesthesia Machine (Trolley is Optional)

Technical Specifications

Configurations

Standard Configuration:

• Main unit

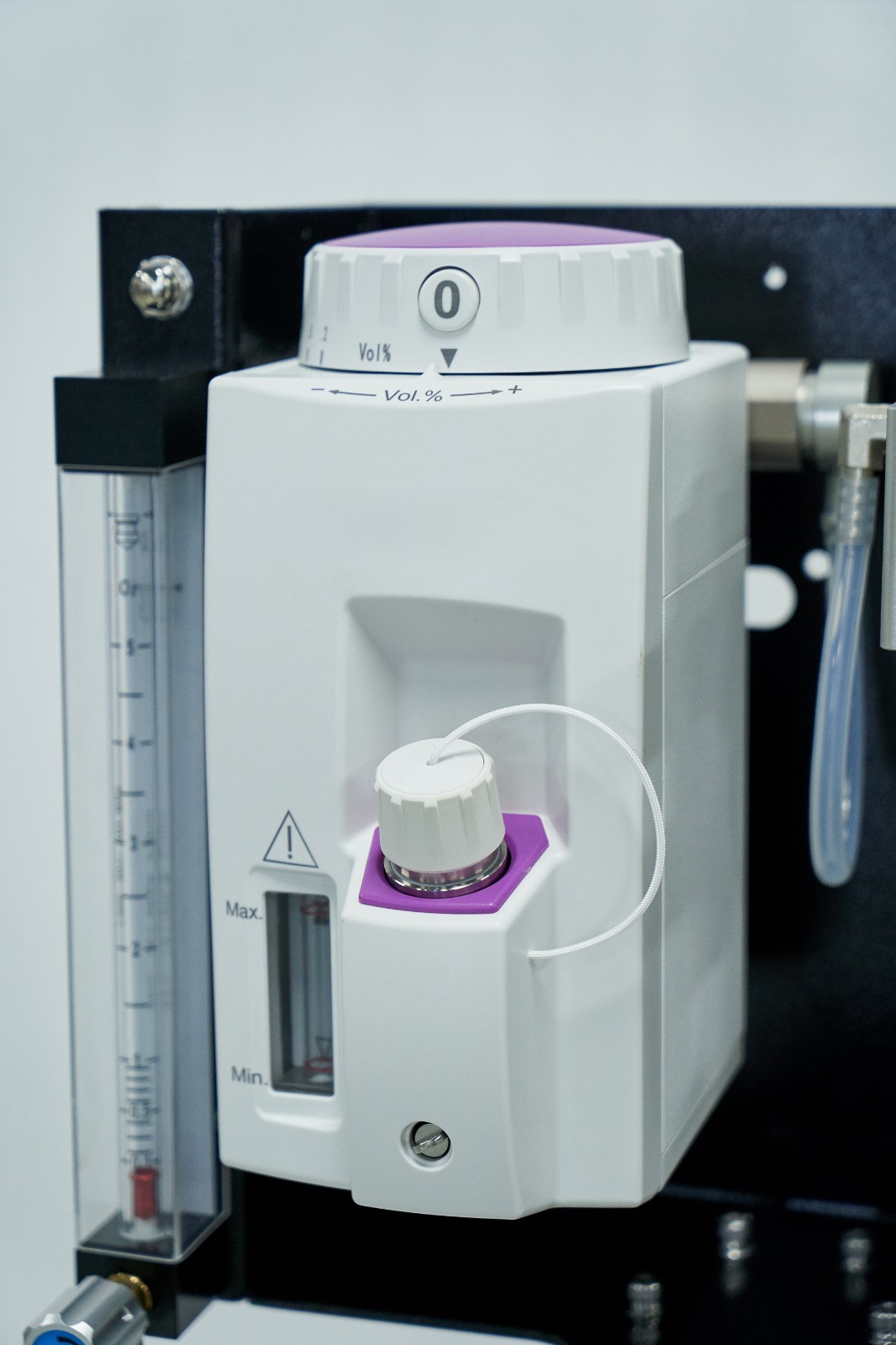

• Single anesthesia vaporizer

• Veterinary breathing circuit (complete set)

• Breathing circuit assembly

• Gas supply hose

• Waste gas scavenging system

• Corrugated connecting tubing

• Test lung (simulated lung)

Optional Accessories:

• Anesthesia ventilators (Models V-60V, V-80V)

• Mobile equipment trolley

• Non-rebreathing circuit

• Endotracheal tubes

• Anesthetic laryngoscope set

• CO₂ absorbent (soda lime)

• Activated charcoal filters

Anesthesia Ventilators (Optional)

Option 1: V-60V Anesthesia Ventilator

Operation System:

• Pneumatic drive with electronic control

Display:

• High-resolution LCD digital display

Animal Breathing Bellow Capacity:

• Large animals: 300-1500mL

• Small animals: 0-300mL

Monitoring Parameters:

• Tidal volume (TV)

• Respiratory rate

• I:E ratio

• Peak airway pressure

Technical Specifications:

1. Tidal Volume (TV) range:

• 0-300mL (small animals)

• 300-1600mL (large animals)

1. Respiratory rate: 2-150 breaths per minute (bpm)

2. Adjustable I:E ratios: 3:1, 2:1, 1.5:1, 1:1, 1:1.5, 1:2, 1:3

3. Airway pressure ranges:

• Upper: 2-6 kPa

• Lower: 0.6-2 kPa

• Peak inspiratory pressure (PIP): 5-60 kPa

Backup Power:

• Built-in battery provides >1 hour operation during power outages

Safety Alarms:

• Low battery

• Power failure

• High/low airway pressure

• Alarm mute options: Manual or automatic switching

Option 2: V-80V Anesthesia Ventilator

Display System:

• 9-inch full-color TFT touchscreen interface

Drive Gas Specifications:

• Compatible gases: Medical-grade Oxygen or Air

• Input pressure range: 280-600 kPa

• Maximum flow rate: ≤120 L/min

Operational Modes:

• Volume Control Ventilation (VCV)

• Pressure Control Ventilation (PCV)

• Spontaneous Breathing (SPONT)

• Manual Ventilation

• Demonstration Mode

Visualization Features:

• Real-time waveform displays:

• Pressure waveform

• Flow-rate waveform

• Volume waveform

• Dynamic ventilation loops:

• Pressure-Volume (PV) loop

• Pressure-Flow (PF) loop

• Flow-Volume (FV) loop

Safety Parameters:

• Maximum system pressure: ≤6 kPa

• Battery backup:

• Lithium-ion battery

• Minimum 2 hours continuous operation

Ventilation Parameters:

1. Tidal Volume:

• Range: 20-1500 mL

• Adjustable in 1 mL increments

1. Respiratory Rate: 1-100 breaths per minute (bpm)

2. Inspiratory Time: 0.1-10 seconds

3. I:E Ratio: Adjustable from 9.9:1 to 1:9.9

4. Inspiratory Pause: 0-50% of cycle

5. PEEP Settings:

• OFF option

• Adjustable range: 3-20 cmH₂O

Pressure Control Settings:

• Pressure Support: 0-60 cmH₂O

• Pressure Control: 5-60 cmH₂O

Trigger Sensitivity:

• Flow Trigger: 0.5-20 L/min

• Pressure Trigger: -1 to -20 cmH₂O

• PSV Inspiration Termination: 25% of peak flow
