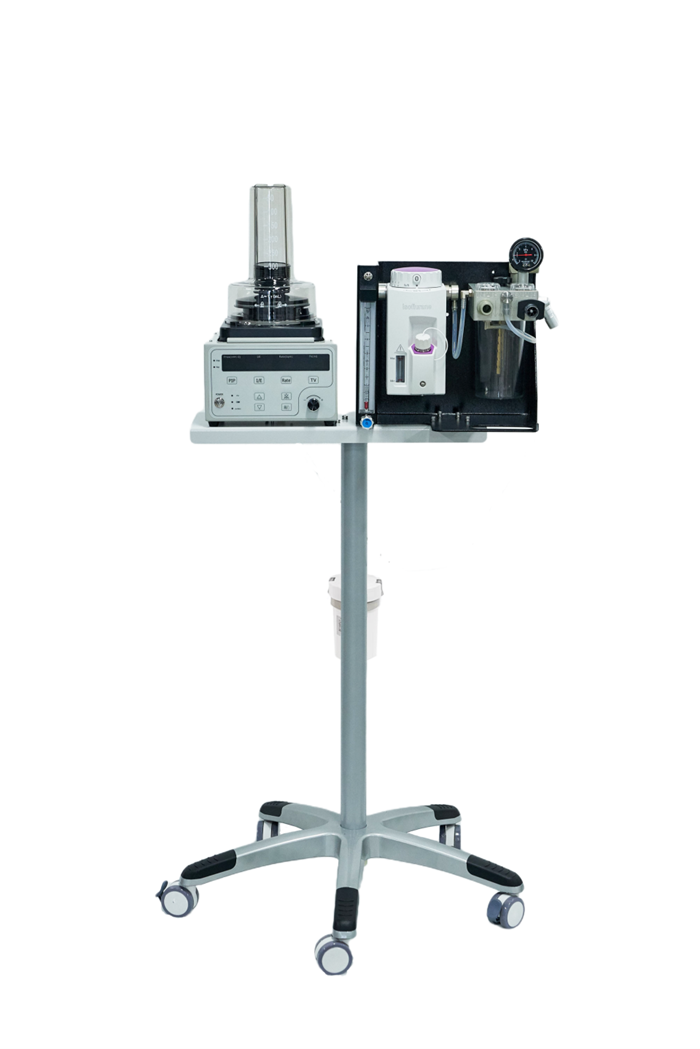

H1200-5 Vet Anesthesia Machine (Trolley is Optional)

Vet Main Unit

Working mode

Open, Closed, half-closed, half-open

Driving mode

Pneumatic electric control

Application

0.5kg-100kg animal

Vaporizer

Choose one from Isoflurane, Sevoflurane, Halothane

Fast oxygen flush

25L/min~75L/min

Gas source pressure

Oxygen 0.25Mpa~0.65Mpa

Trolley

High-quality aluminum alloy profile, with storage   frame and special interface for exhaust gas emission

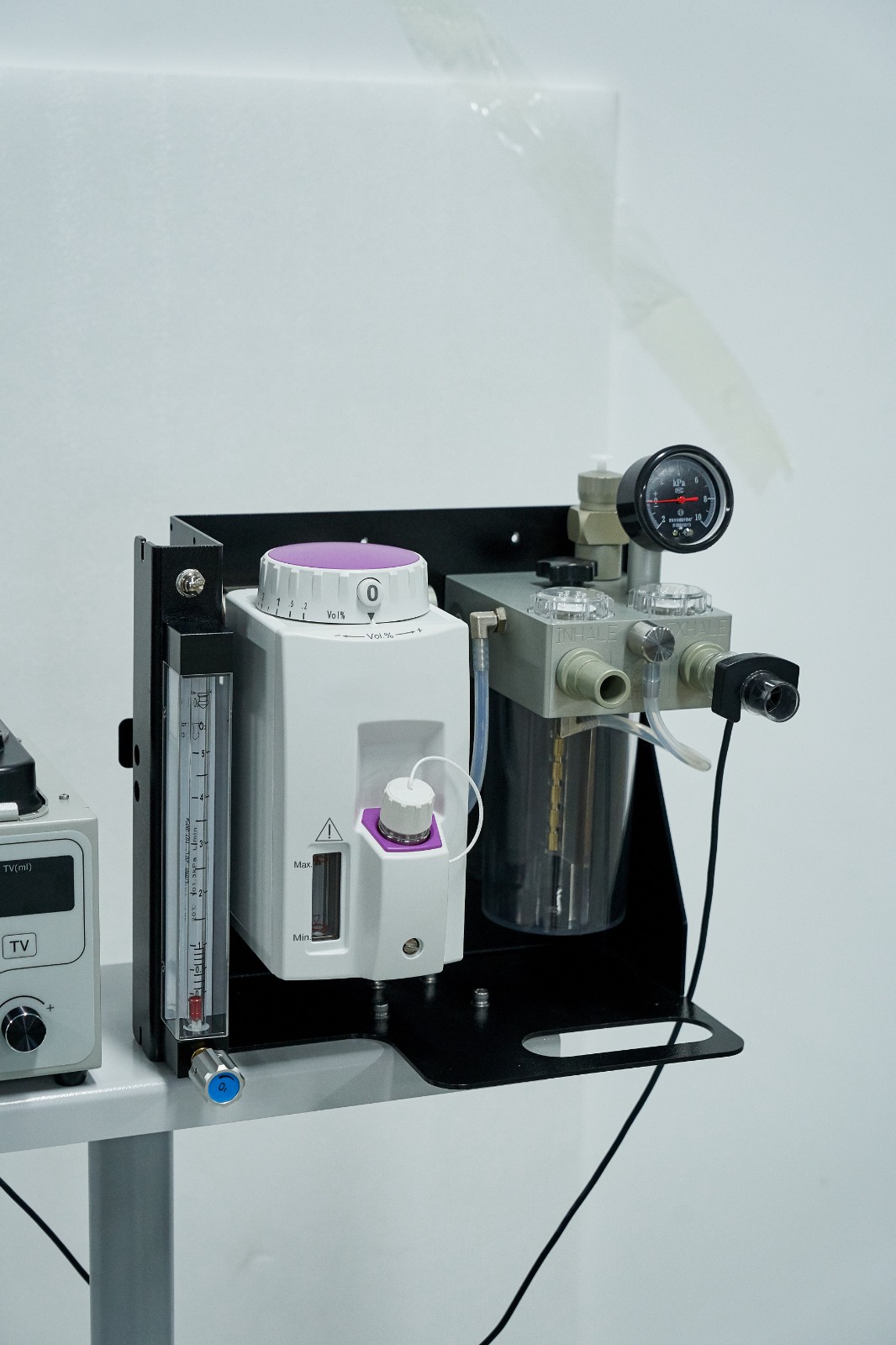

Anesthesia Vaporizer

Concentration scope

Isoflurane:   0.2%~5%

Sevoflurane: 0.2%~8%

Flow rate scope

0.2L/min~15L/min

Anesthetic capacity

Dry: 340ml

Wet: 300ml

Mounting type

Selectatec or Cagemout

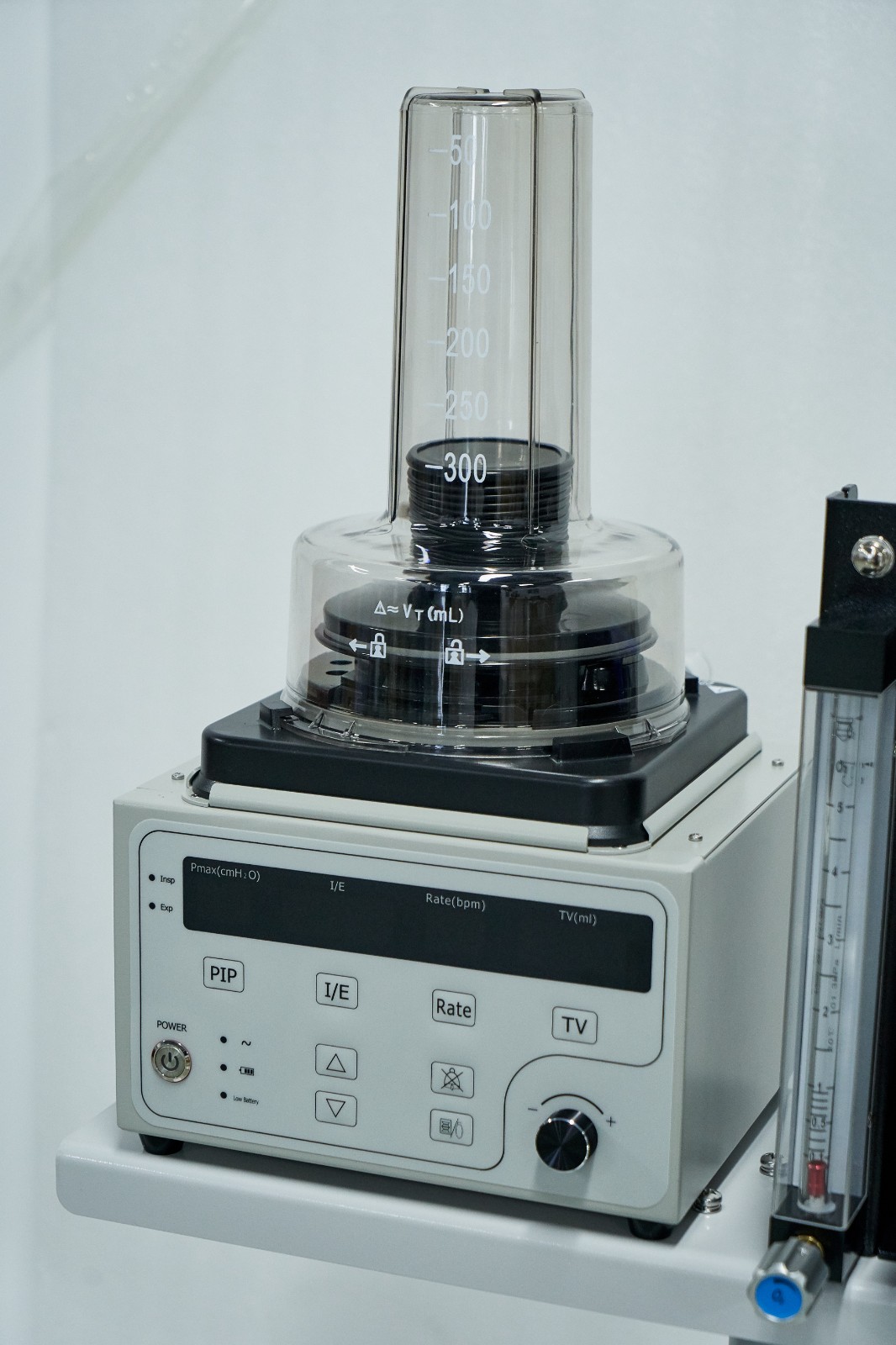

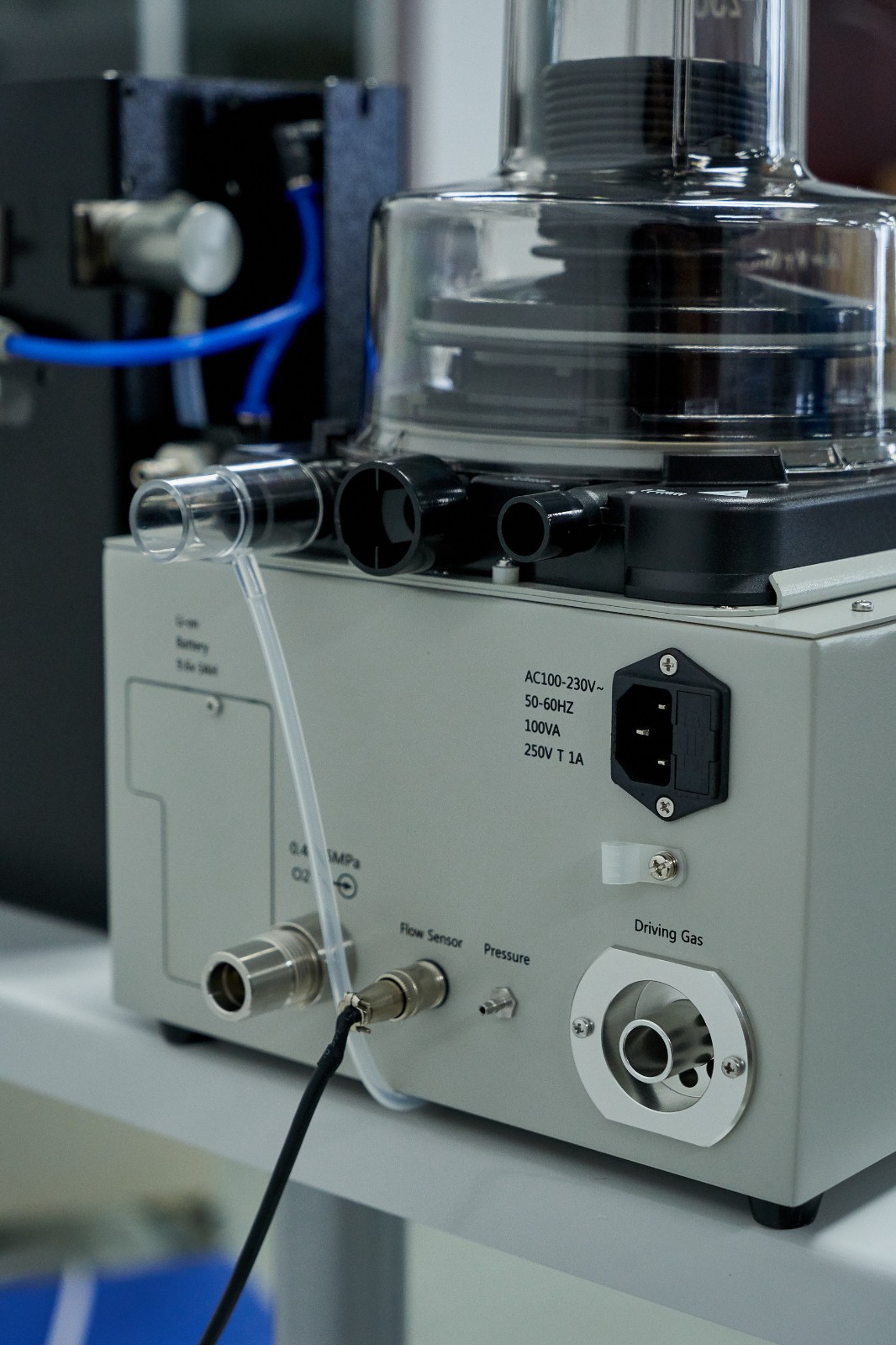

Vet Anesthesia Ventilator

Working mode

Mechanical control, Manual control

Ventilation mode

IPPV, Manual

Bellow

0-300ml,300-1500ml

Driving mode

Pneumatic electric ventilator

Screen

LCD

Monitoring

Tidal volume, breathing rate, I:E, peak pressure

Tidal volume

20ml/min~1500ml/min,

Continuously adjustable breathing rate: 4-60bpm

I:E

1:1~1:4 adjustable

Minute ventilation volume

No less than 15L/min

Airway pressure upper limit

2~6kpa

Airway pressure lower limit

0.5~2kpa

Alarm

Low oxygen supply pressure alarm, Airway pressure   upper limit alarm, Airway pressure lower limit alarm, Mute

Configuration includes sensor, connecting silicone   tube, power cord, big animal bellow and small animal bello, main unit, fuse,   Gas source pressure gauge, etc.

CO2 Absorber

Sodium Lime Tank Capacity

500ml-750ml

Absorber

The animal-specific integrated circuit can be   sterilized at high temperature and high pressure at 134℃. The dedicated interface can be connected to an   open circuit, suitable for low-flow small animals.

Valve piece

Visible ceramic valve piece, easy to observe animal   breathing.

Pop off valve

Directs the waste anesthetic gas from the machine   to a scavenging system. In the completely open position, the pop-off valve   will release pressure at 2 cm H2O, while maintain a constant passive volume   in the breathing bags.

Other advantage

Strong air tightness, reduce airway resistance；Design of quick replacement of sodium lime Canister
