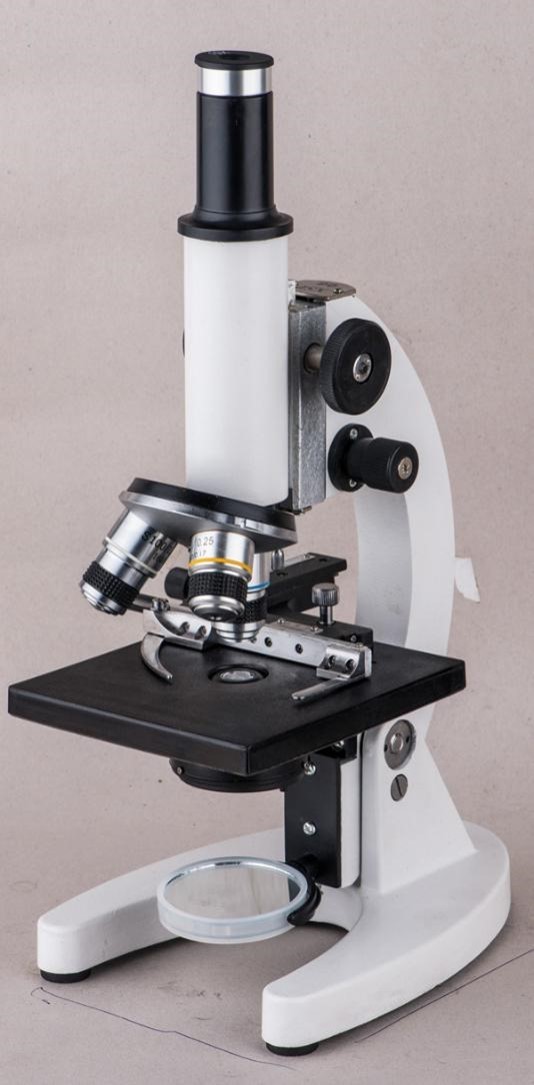

XSP-05 Biological Microscope

Specifications

Optical System
• Viewing Configuration: Monocular
• Eyepieces: Huygens H5X, H10X, H15X
• Objectives: Achromatic 10X, 40X, 100X (oil immersion)

Mechanical Components
• Stage: 120×120mm graduated mechanical stage
• Condenser: Abbe (N.A. 1.25) with iris diaphragm & filter slot

Focusing Mechanism
• Coarse Adjustment: 50mm vertical travel
• Fine Adjustment: 1.8-2.2mm range (±0.02mm precision)
