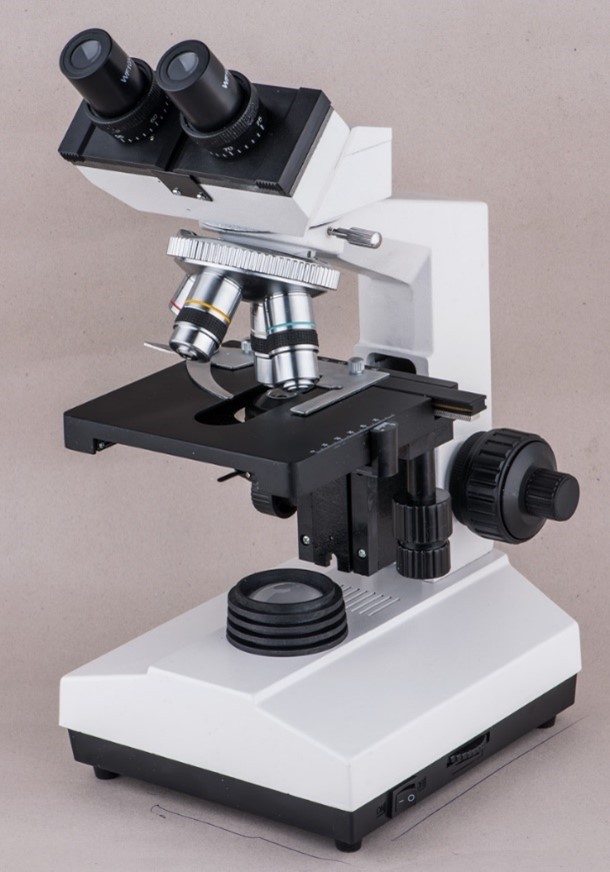

XSZ-107BN Biological Microscope

Specifications

Optical System
• Viewing Head: 45° inclined sliding binocular
• Eyepieces: WF10X widefield (WF16X optional)
• Objectives: Achromatic 4X, 10X, 40X(S), 100X(S,Oil)

Mechanical System
• Stage: Dual-layer mechanical
• Platform: 140×140mm
• Travel: 75mm(X)×45mm(Y)
• Condenser: Abbe N.A.1.25 with iris diaphragm & filter

Focusing System
• Mechanism: Coaxial coarse/fine
• Range: 30mm
• Precision: 0.002mm (2μm)

Illumination
• Standard: Halogen 6V20W (220V/110V)
• Optional: LED illumination
