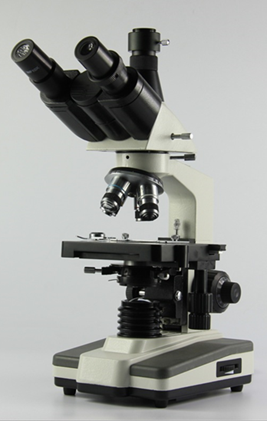

XSP-200SM Biological Microscope

Specifications

• Observation: Trinocular head (non-compensating optical path)
• Eyepieces: WF10X (WF16X optional)
• Objectives:

•    Achromatic 4X, 10X

•    Spring-loaded 40X, 100X(oil immersion)
  • Stage:

•    Type: Dual-layer mechanical

•    Working area: 125×115mm
  • Focusing:

•    Coaxial coarse/fine adjustment

•    30mm vertical travel

•    2μm fine focus precision
  • Condenser:

•    Abbe type (N.A. 1.25)

•    Iris diaphragm & filter holder
  • Illumination: 6V20W halogen (dual voltage)
