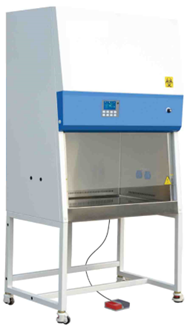

BSC-1100A2 Class ii Biological Safety Cabinet Types

Class II Biosafety Cabinet

Class II Biosafety Cabinet (BSC): Protection for Personnel, Environment, and Samples

A Class II Biosafety Cabinet safeguards users, the surrounding environment, and the samples being handled. It is commonly used in clinical laboratories, life science research, hospitals, pharmaceutical production, and research facilities working with tissue cultures or infectious agents classified under Risk Groups 2, 3, and 4.

Key Differences Between Class I and Class II BSCs

Like a Class I BSC, a Class II cabinet utilizes negative pressure to prevent unfiltered air from escaping through the access opening. However, the primary distinction lies in its airflow design:

A Class II BSC employs an airfoil to create a downward vacuum, directing airflow beneath the work surface rather than over it.
This design establishes an air barrier at the front opening, enhancing containment.
Additionally, it HEPA-filters the supply air entering the work area and maintains laminar airflow to minimize turbulence and reduce cross-contamination risks.

Subtypes and Variations

Class II BSCs are further categorized based on their construction, airflow patterns, and exhaust systems. The main differentiating factors include:

The ratio of exhausted air to recirculated air within the cabinet.
The type of exhaust system (ducted vs. non-ducted).
Common subtypes include A1, A2, B1, B2, and C1.

Three Essential Protective Features

Product Protection – Downward HEPA-filtered laminar airflow shields samples from contamination.
Personnel Protection – A controlled inward airflow at the front opening prevents hazardous aerosols from escaping.
Environmental Protection – HEPA-filtered exhaust air is safely discharged either into the room or through a facility exhaust system.

Technical Specifications

MODEL	BSC-1100IIA2	BSC-1300IIA2	BSC-1500IIA2	BSC-1800IIA2	BSC-2000IIA2
Internal Size (WDH) (mm)	940* 600*660	1150600660	1350600660	1625600660	1800600660
External Size (WDH) (mm)	11007502250	13007502250	15007502250	18007752290	19508002170
Tested Opening	Safety Height 200mm (8")
Max Opening	420mm (17")	420mm (17")	500mm (20")	500mm (22")	400mm (16")
Inflow Velocity	0.53±0.025 m/s
Down flow Velocity	0.33±0.025 m/s
HEPA Filter	Two, 99.9995% efficient at 0.12μm. Filter life indicator.
Front Window	Motorized. Two-layer laminated toughened glass ≥ 6mm. Anti UV.
Noise	EN12469 ≤ 58 dB / NSF49 ≤ 61 dB
UV Lamp	30W*1	30W* 1	40W* 1	40W*1	40W* 1
UV Lamp	UV timer, UV life indicator, emission of 253.7 nanometers for most efficient decontamination.
Illuminating Lamp	12W*2	12W*2	16W*2	16W*2	16W*2
Illumination	≥1000Lux
Consumption	600W	800W	850W	1300W	1500W
Waterproof Sockets	Two, total load of two sockets: 500W
Display	LCD display: exhaust filter and down flow filter pressure, filter and UV lamp working time, inflow and down flow velocity, filter life, humidity and temperature, system working time etc.
Control System	Microprocessor
Airflow System	70% air recirculation, 30% air exhaust
Visual and audio alarm	Abnormal airflow velocity, Filter replacement, Front window at unsafe height, High filter pressure alarm
Material	Work Zone: 304 stainless steel
Material	Main Body: Cold-rolled steel with anti-bacteria powder coating.
Work Surface Height	750mm (Size can be customized according to requirements)
Caster	Footmaster caster
Power Supply	AC220V±10%, 50/60Hz; 110V±10%, 60Hz
Standard Accessory	LED lamp, UV lamp2, Base stand, Remote control, Foot switch, Drain valve, Waterproof sockets2
Optional Accessory	Water and gas tap, Electric height adjustable base stand, Armrest, Chair
Gross Weight	220kg	280kg	316kg	366kg	420kg
Package Size (WDH) (mm)	122010001820	148010001820	163010001820	193010001820	209010501860
