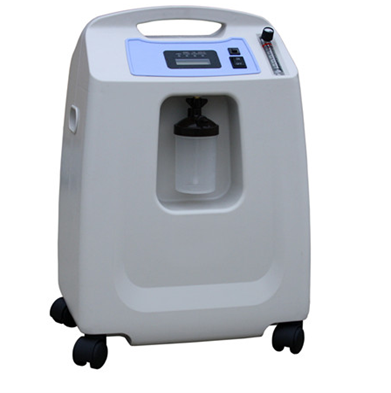

OC-5 Oxygen Concentrator

Features

OC-5 is a high-performance oxygen concentrator model capable of generating oxygen with an average purity of 93%, making it well-suited for high-demand applications such as hospitals, home care, and residential use. It operates reliably around the clock with minimal maintenance required over its entire service life. The device is designed for user-friendly upkeep, eliminating the need to open the housing for filter replacement.

  1. Continuous 24/7 operation

  2. Optional two-way oxygen splitter for simultaneous use by two users

  3. Triple safety alarm system: power failure alarm, pressure circulation fault alarm, and compressor fault alarm

  4. Average oxygen purity: 93% ± 3%

  5. Low noise output: below 45 dB(A)

  6. Lightweight design: only 15.9 kg (5-liter model)

  7. Durable ABS housing: anti-aging, stylish appearance

Technical Specifications

PARAMETER

SPECIFICATION

Oxygen flow

1-5 LPM

Output pressure

58.6 kPa

Power supply

AC220V±22V,50Hz;110V±10V,60Hz

Input power

510VA (AVER)

Oxygen concentration

1-5 LPM 93%±3%

Operation Environment

Temperature 5°C-40°C

Humidity≤80%

Atmospheric pressure:86kPa-106 kPa

OCSI indicator (optional)

85% above green

85% below yellow

82% below red

Net Weight

15.9kg

Noise

<45dB(A)

Size

32cm*43cm*62cm(l*w*h)

Operation regular

Time cycle/pressure rotation

Transportation/storage condition

Temperature -20°C-55°C

Humidity≤90%

Atmospheric pressure:86kPa-106 kPa

Equipment class&Type

Class II  B
