Features

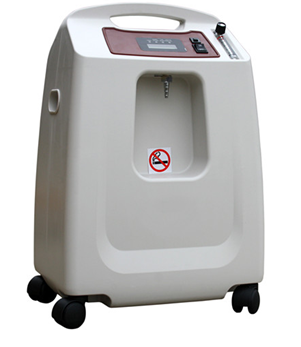

OC-8 is an industrial-grade oxygen concentrator capable of producing oxygen with an average purity of 93%, designed to meet high-flow demands across diverse settings including hospitals, households, skincare centers, glass manufacturing, welding, and other industrial applications. It operates reliably 24/7 while consistently maintaining 93% oxygen purity at a flow rate of 8L/min. The unit requires minimal maintenance over its lifespan and allows filter replacement without the need to open the main housing. Additionally, the OC-8 supports customization to meet specific client requirements and offers an optional 4-way oxygen splitter for multi-user operation.
Technical Specifications
PARAMETER | SPECIFICATION |
Oxygen flow | 1-8 LPM |
Output pressure | 58.6±6 kPa |
Power supply | AC220V±22V,50Hz;110V±10V,60Hz |
Input power | 510VA (AVER) |
Oxygen concentration | 1-8 LPM 93%±3% |
Operation Environment | Temperature 5°C-40°C |
Humidity≤80% | |
Atmospheric pressure:86kPa-106 kPa | |
OCSI indicator (optional) | 85% above green |
85% below yellow | |
82% below red | |
Net Weight | 19.2kg |
Noise | <50dB(A) |
Size | 43cm*32cm*62cm(l*w*h) |
Carton Size:50*37*71cm | |
Operation regular | Time cycle/pressure rotation |
Transportation/storage condition | Temperature -20°C-55°C |
Humidity≤90% | |
Atmospheric pressure:86kPa-106 kPa | |
Equipment class&Type | Class II B |
