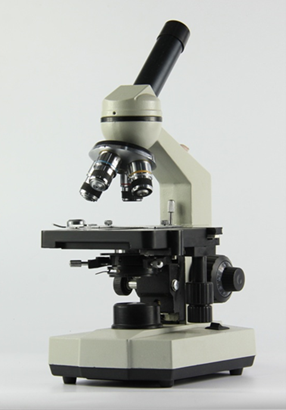

XSP-104 Biological Microscope

Specifications

Optical System
• Viewing Configuration: Monocular head
• Eyepieces: WF10X widefield (WF16X optional)
• Objectives: Achromatic 4X, 10X, 40X(spring), 100X(spring, oil)

Mechanical System
• Stage: Dual-layer mechanical stage
• Dimensions: 125×115mm
• Condenser: Abbe condenser (N.A. 1.25) with iris diaphragm & filter slot

Focusing Mechanism
• Adjustment: Coaxial coarse/fine knobs
• Travel Range: 30mm
• Fine Resolution: 0.002mm (2μm precision)

Illumination
• Light Source: Halogen lamp (220V/6V20W or 110V/6V20W)
