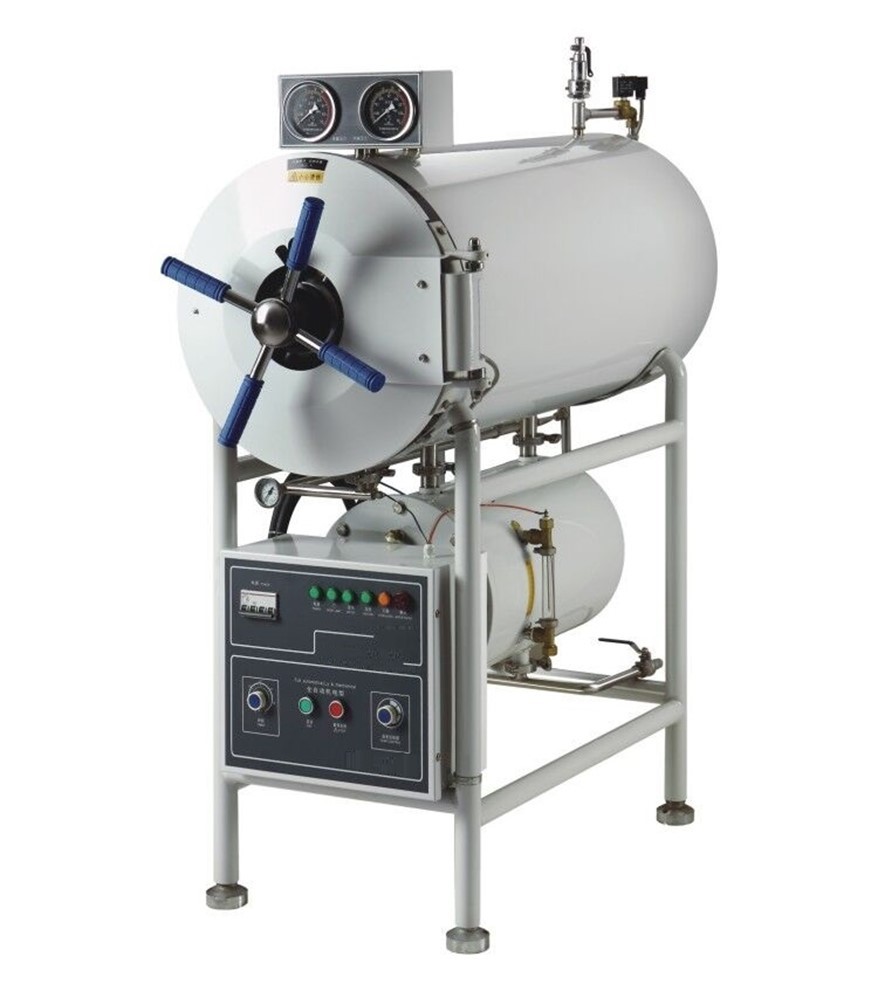

WS-YDA Horizontal Cylindrical Pressure Steam Sterilizer

Sterilization Mechanism:
This system utilizes saturated pressurized steam for effective sterilization. During the condensation process, the steam releases substantial latent heat, creating optimal high-temperature, high-humidity conditions. Maintaining these parameters for a designated duration ensures complete eradication of even highly resistant bacterial spores, achieving reliable sterilization. This proven method offers exceptional reliability, cost-effectiveness and precise process control, with over a century of documented successful application.

Optimal Applications:
The unit serves as an ideal sterilization solution for:

• Medical clinics and hospitals

• Research laboratories

• Scientific institutions
  Primary applications include:
  ✓ Surgical instrument sterilization
  ✓ Fabric and glassware processing
  ✓ Culture media preparation

Specifications

1. Automated Control System

• Computer-controlled sterilization cycles for precise, user-friendly operation

2. Integrated Drying Function

• Built-in drying system for effective processing of medical dressings and textiles

3. Comprehensive Safety Protections

• Automatic shutdown for over-temperature and over-pressure conditions

4. Pressure-Sensitive Door Lock

• Mechanical interlock prevents door opening above 0.027MPa chamber pressure

5. Door Seal Verification

• System prevents startup if door is not properly sealed

6. Pressure Relief System

• Safety valve automatically activates at 0.24MPa, redirecting steam to water tank

7. Low Water Protection

• Automatic power and water supply cutoff with audible alarm during water deficiency

8. Robust Construction

• Exterior: Durable steel coating

• Chamber: High-grade stainless steel for optimal hygiene and corrosion resistance

Technical Data
