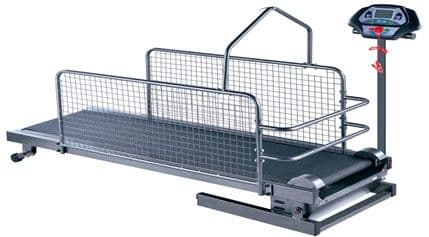

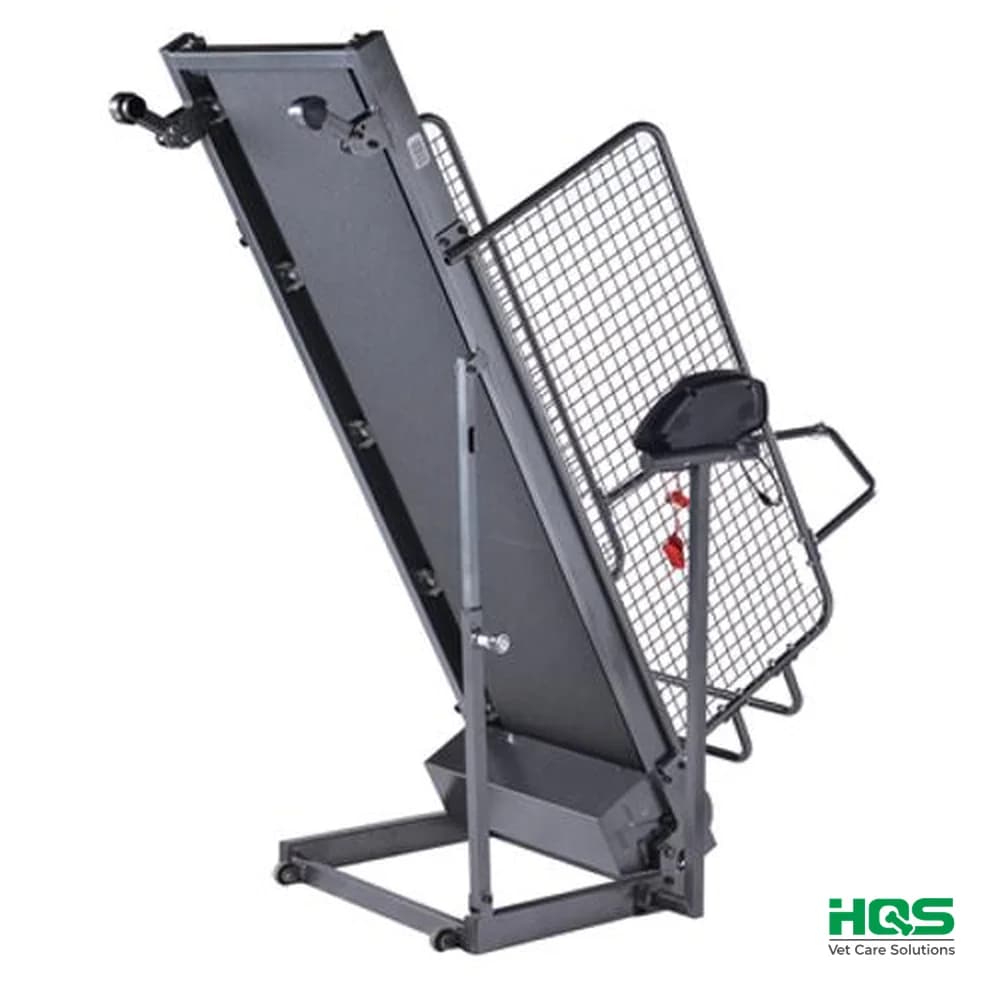

TM-C300F 是一款可折叠宠物跑步机，用于在监护下进行动物运动或康复训练。跑台面积 38 × 150 cm，速度范围 0.8–12 km/h，承重 100 kg，LED 显示屏可显示速度、时间、距离及卡路里。
Model-specific documentation
Check the covered model, language and document status before use. The manual supplied with the actual unit remains the controlling reference.
Product datasheet · English
HQS datasheet for the TM-C300F: product overview, features and the technical specifications published for this model. Confirm the ordered configuration in your quotation.
参数 | 规格 |
|---|---|
跑台尺寸 | 38 × 150 cm |
跑带厚度 | 1.6 mm |
跑板厚度 | 15 mm |
承重 | 100 kg |
速度范围 | 0.8–12 km/h |
电机 | 1.75 HP |
显示 | LED：速度、时间、距离及卡路里 |
产品尺寸 | 157 × 67 × 96 cm |
净重 / 毛重 | 41.2 / 46.2 kg |
以下差异取自各型号已公布的参数，最终配置以报价单为准。
| 参数 | TM-C100/C100W | TM-C200/C200W | TM-C300/C300W | TM-C300F当前型号 | TM-C300S/C300WS | TM-C400/C400W | TM-C400G/C400WG | TM-C400S/C400WS | TM-C400SG/C400WSG | TM-C400WSH | TM-C402W | TM-C600WSG | TM-J100 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 跑台尺寸 | 28*85cm | 34*105cm | 40*145cm | 38 × 150 cm | 40*145cm | 46*177cm | 46*177cm | 46*177cm | 46*177cm | 46*177cm | 68*177cm | — | 28*85cm |
| 跑带厚度 | 1.2mm | 1.6mm | 1.6mm | 1.6 mm | 1.6mm | 1.6mm | 1.6mm | 1.6mm | 1.6mm | 1.6mm | 1.6mm | 1.8mm | 1.2mm |
| 跑板厚度 | 12mm | 15mm | 15mm | 15 mm | 15mm | 15mm | 15mm | 15mm | 15mm | 15mm | 15mm | 15mm | 12mm |
| 速度范围 | 0.8 - 6km/hour | 0.8 - 12km/hour | 0.8 - 12km/hour | 0.8–12 km/h | 0.8 - 12km/hour | 0.8 - 12km/hour | 0.8 - 20km/hour | 0.8 - 12km/hour | 0.8 - 20km/hour | 0.8 - 12km/hour | 0.8 - 12km/hour | 0.8 - 20km/hour | 0.8 - 6km/hour |
| 电机 | 200W | 1.75HP | — | 1.75 HP | — | — | — | — | 5HP | — | 5HP | 变频电机 | 200W |
| 显示 | LED, 显示速度、时间、距离、卡路里 | — | LED，显示速度、时间、距离、卡路里 | LED：速度、时间、距离及卡路里 | — | — | — | — | — | — | — | — | — |
| 产品尺寸 | 110*42*93cm | 131*50*86cm | 172*56*98cm | 157 × 67 × 96 cm | 172*56*98cm | 203*62*116cm | 203*62*116cm | 203*62*116cm | 203*62*116cm | 203*62*116cm | 203*85*119cm | 286*87*124cm | 110*42*93cm |
| 最大承重 | 80KGS | 100KGS | 100KGS | — | 100KGS | 110KGS | 110KGS | 110KGS | 110KGS | 110KGS | 110KGS | 150KGS | 80KGS |
| 重量 | 净重: 19KGS | 净重: 32KGS | 净重: 37KGS 毛重: 42KGS | — | 净重: 48KGS 毛重: 53KGS | 净重: 55KGS(C400), 69KGS(C400W) | 净重: 55KGS(C400G),71KGS(C400WG) | — | — | 净重: 70KGS 毛重: 81KGS | 净重: 89KGS 毛重: 105KGS | 净重: 150KGS 毛重: 177KGS | 净重：30KGS 毛重：33KGS |
| 显示屏 | — | LED，显示速度、时间、距离、卡路里 | — | — | — | LED, 显示速度, 时间, 距离, 卡路里 | LED，显示速度、时间、距离、卡路里 | — | LED，显示速度、时间、距离、卡路里 | — | LED，显示速度、时间、距离、卡路里 | LED, 显示速度、时间、距离、卡路里 | LED, 显示速度、时间、距离、卡路里 |
| 马达 | — | — | 1.75HP | — | 1.75HP | 3HP | 5HP | 3HP | — | 3HP | — | — | — |
| 毛重 | — | — | — | — | — | — | 67KGS(C400G), 79KGS(C400WG) | 65.2KGS(C400S),82KGS(C400WS) | 71KGS(C400SG), 88KGS(C400WSG) | — | — | — | — |
| 净重 | — | — | — | — | — | — | — | 53.2KGS(C400S),70KGS(C400WS) | 65KGS(C400SG), 80KGS(C400WSG) | — | — | — | — |
