Configuration Table
8.4-inch touch color screen | Unmanned power outage protection | Independent split type refrigeration
| PTC heating | Purification of high concentration negative ions | Intelligent automated printer | UVC ultraviolet sterilization |
Open oxygen transfer | Intelligent control power supply | Uninterruptible power supply | Circulation ven | Medical examination lamp | Simulated ecological sunlight lamp | Medical Blue Light |
Emergency ventilation switch | Emergency operation window | CO2 purification | CO2 alarm | 3D Constant Temperature | 3D Constant Oxygen | Air pressure atomization |
Infusion stand
| Sleeping curtain | Sodium lime | Medical Nebulizer | Medical oxygen hose | High flow oxygen generator optional selection | Instructions |
Product Introduction
Key Upgrades:
Space-Optimized Design: Compact footprint for easier installation and relocation
Modernized Aesthetics: Updated exterior maintains professional appearance
Efficient Configuration: Eliminates unnecessary components to prevent resource waste
Preserved Core Features:
✓ All essential first-generation ICU capabilities
✓ Uncompromised medical-grade performance
Quality Assurance:
• Precision-engineered durable materials
• Rigorous manufacturing quality control
• Sustainable design philosophy
Unique advantages
Continuous Monitoring System
24/7 real-time vital sign surveillance
Integrated monitoring equipment ensures treatment safety and stability
Continuous data tracking for optimal patient care
Intelligent CO₂ Regulation
Automatic ventilation activation at preset CO₂ thresholds
Smart discharge system maintains ideal atmospheric conditions
Prevents CO₂ buildup for patient safety
Advanced Therapeutic Modalities
High-purity oxygen therapy with aseptic delivery
Integrated infrared treatment module
Enhanced therapeutic efficacy through combined modalities
Precision Environmental Control
Stable temperature maintenance (adjustable range)
Optimized humidity regulation system
Creates ideal recovery microenvironment
Hospital-Grade Air Purification
Dual purification technology:
Negative ion air filtration system
UV-C sterilization disinfection
Comprehensive infection control protocol
User-Friendly Operation
Simplified control interface
Intuitive workflow design
Easy-to-manage system operation
Premium Construction Quality
Medical-grade durable materials
Rigorous component selection standards
Certified safety and stability assurance

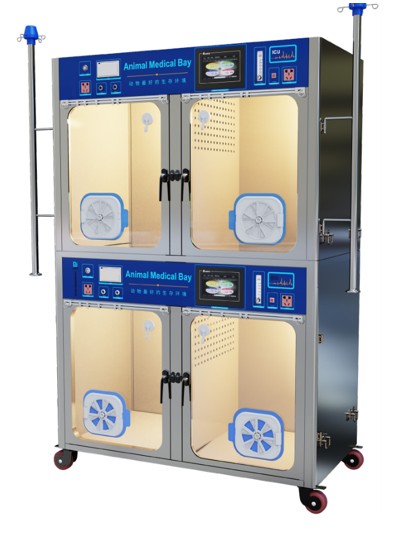

Product Name | Dual Unit Pet ICU | Monitor | W171XH128mm |
Model | HICU-04 | Touch screen | Pointer membrane resistance type |
External dimensions | Length 1290, Depth 660, Height 1890 | Max Power consumption | 1.6kw |
Weight | 236KG | Average power consumption | 0.8KW |
Power Supply | AC100V/220V 50/60HZ (with grounding) | Power outage guarantee | With program control Emergency ventilation hatch |
Air conditioning method | Independent split refrigeration/ PTC heating | Negative ion medical purification function | (7.2X10Pcs/cm3X4) High concentration negative ions |
Greening air function | UV sterilization lamp; High concentration Negative ion air purification | Standard accessories | Infusion stand |
Usage conditions | Indoor environment at -10-40 ° C | Micro printer | Intelligent automatic timed printing system |
Setting temperature | Temperature control accuracy of 15-38 ° C Soil 0.5 ° C | UV sterilization | UVC band 253nm Efficient UV sterilization system |
Set oxygen concentration | 21~60%, control accuracy ± 1% | Blue light medical system | Blue 415nm LED |
Carbon dioxide concentration Monitor and clear | 300-5000PPM, Error margin of 10PPM, Built in medical CO2 high- efficiency purification agent And automatic CO2 removal device | Medical Nebulizer | Maximum atomization rate=0.2ml/min, Mist particles (0-5-2um) Noise ≤ 40dB (A) |
Alert and Warning | Abnormal O2 concentration, abnormal temperature Abnormal sensor and CO2 concentration Abnormal emergency hatch switch, etc | LED lighting board | Two way lighting control: warm light Adjustable control with ten levels of strength and weakness, medical Special cold light lamp for medical examination |
Dehumidification index | Automatic dehumidification system, The standard humidity is controlled within 40%, actual humidity control is less than 50%. Divided into three levels: High/ Middle/Low High: 45%~50% Middle : 40%-44% Low :30%~39% | Fan control (Ventilation volume adjustment) | LOW/MIDDLE/HIGH Low Medium High Three level input speed regulation Oxygen input adjustment – low level Temperature regulation – high level Emergency ventilation start - high level UV sterilization - mid- range High CO2 concentration - high- end |
