Configuration Table
8.4-inch touch color screen | Unmanned power outage protection | Independent split type refrigeration
| PTC heating | Purification of high concentration negative ions | Intelligent automated printer | UVC ultraviolet sterilization |
Open oxygen transfer | Intelligent control power supply | Uninterruptible power supply | Circulation ven | Medical examination lamp | Simulated ecological sunlight lamp | Medical Blue Light |
Emergency ventilation switch | Emergency operation window | CO2 purification | CO2 alarm | 3D Constant Temperature | 3D Constant Oxygen | Air pressure atomization |
Infusion stand
| Sleeping curtain | Sodium lime | Medical Nebulizer | Medical oxygen hose | High flow oxygen generator optional selection | Instructions |
Product Introduction

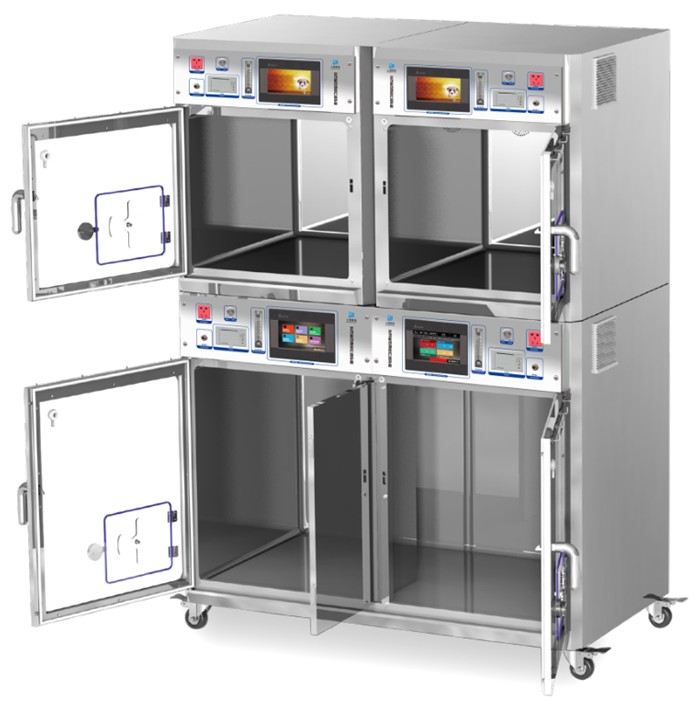

1.HICU-01 Four-Compartment Pet ICU System
The HICU-01 represents the gold standard in veterinary critical care, delivering comprehensive medical monitoring and treatment through cutting-edge technology and clinical expertise. This advanced system provides life-support solutions for:
2.Clinical Applications:
Post-surgical recovery monitoring
Emergency critical care interventions
Whelping/kittening support
Neonatal intensive care
Respiratory disease management
Geriatric patient care
3.Advanced Technical Features:
Multi-parameter intelligent monitoring system
User-friendly touchscreen interface
Triple-stage air purification system
Comprehensive alarm protocols (visual/auditory)
Precision digital environmental controls
Unique advantages
1. Continuous Vital Monitoring
24/7 real-time physiological tracking via advanced sensors
Ensures treatment safety and maintains patient stability
2. Smart CO₂ Management
Automated ventilation activation when CO₂ thresholds are reached
Maintains optimal air quality without manual intervention
3. Advanced Sterile Therapies
High-concentration oxygen therapy system
Integrated infrared treatment module
Combined modalities enhance therapeutic outcomes
4. Climate Control System
Precision temperature and humidity regulation
Maintains ideal recovery environment
Promotes patient comfort during treatment
5. Comprehensive Air Purification
Three-stage filtration system:
Negative ion air purification
UV-C germicidal irradiation
HEPA filtration
Prevents cross-contamination between compartments
6. User-Friendly Operation
Intuitive control interface
Simplified workflow design
Easy maintenance protocols
7. Premium Construction
Medical-grade materials throughout
Rigorous quality control standards
Durable components for long-term reliability
Safety-certified construction
Product Name | Pet ICU | Monitor | W171XH128mm |
Model | HICU-01 | Touch screen | Pointer membrane resistance type |
External dimensions | Length 1400, depth 860, height 1900 | Max Power consumption | 1.6kw |
Weight | 236KG | Average power consumption | 0.8KW |
Power Supply | AC100V/220V 50/60HZ (with grounding) | Power outage guarantee | With program control Emergency ventilation hatch |
Air conditioning method | Independent split refrigeration/ PTC heating | Negative ion medical purification function | (7.2X10Pcs/cm3X4) High concentration negative ions |
Greening air function | UV sterilization lamp; High concentration Negative ion air purification | Standard accessories | Infusion stand |
Usage conditions | Indoor environment at -10-40 ° C | Micro printer | Intelligent automatic timed printing system |
Setting temperature | Temperature control accuracy of 15-38 ° C Soil 0.5 ° C | UV sterilization | UVC band 253nm Efficient UV sterilization system |
Set oxygen concentration | 21~60%, control accuracy ± 1% | Blue light medical system | Blue 415nm LED |
Carbon dioxide concentration Monitor and clear | 300-5000PPM, Error margin of 10PPM, Built in medical CO2 high- efficiency purification agent And automatic CO2 removal device | Medical Nebulizer | Maximum atomization rate=0.2ml/min, Mist particles (0-5-2um) Noise ≤ 40dB (A) |
Alert and Warning | Abnormal O2 concentration, abnormal temperature Abnormal sensor and CO2 concentration Abnormal emergency hatch switch, etc | LED lighting board | Two way lighting control: warm light Adjustable control with ten levels of strength and weakness, medical Special cold light lamp for medical examination |
Dehumidification index | Automatic dehumidification system, The standard humidity is controlled within 40%, actual humidity control is less than 50%. Divided into three levels: High/ Middle/Low High: 45%~50% Middle : 40%-44% Low :30%~39% | Fan control (Ventilation volume adjustment) | LOW/MIDDLE/HIGH Low Medium High Three level input speed regulation Oxygen input adjustment – low level Temperature regulation – high level Emergency ventilation start - high level UV sterilization - mid- range High CO2 concentration - high- end |
