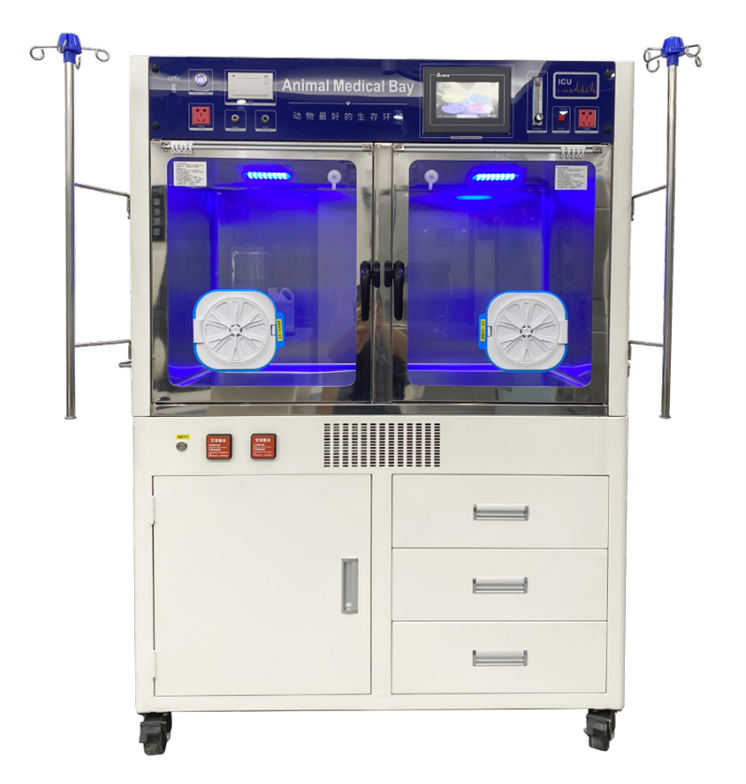

HICU-03 Fully functional aerobic animal ICU

Open oxygen

transfer

Intelligent

control power

supply

Uninterruptible

power supply

Circulation ven

Medical

examination

lamp

Simulated

ecological

sunlight lamp

Medical Blue

Light

Emergency

ventilation

switch

Emergency

operation

window

CO2 purification

CO2 alarm

3D Constant

Temperature

3D Constant

Oxygen

Air pressure

atomization

Infusion stand

Sleeping curtain

Sodium lime

Medical

Nebulizer

Medical oxygen

hose

High flow oxygen

generator

optional

selection

Instructions

Model

HICU-03

Touch screen

Pointer membrane resistance

type

External

dimensions

Length 1290, Depth 660, Height

1750

Max Power

consumption

1.6kw

Weight

236KG

Average power

consumption

0.8KW

Power Supply

AC100V/220V

50/60HZ (with grounding)

Power outage

guarantee

With program control

Emergency ventilation hatch

Air conditioning

method

Independent split refrigeration/

PTC heating

Negative

ion medical

purification

function

(7.2X10Pcs/cm3X4)

High concentration negative ions

Greening air

function

UV sterilization lamp; High

concentration

Negative ion air purification

Standard

accessories

Infusion stand

Usage conditions

Indoor environment at -10-40 ° C

Micro printer

Intelligent automatic timed

printing system

Setting

temperature

Temperature control accuracy of

15-38 ° C

Soil 0.5 ° C

UV sterilization

UVC band 253nm

Efficient UV sterilization system

Set oxygen

concentration

21~60%, control accuracy ± 1%

Blue light medical

system

Blue 415nm LED

Carbon dioxide

concentration

Monitor and clear

300-5000PPM,

Error margin of 10PPM,

Built in medical CO2 high-

efficiency purification agent

And automatic CO2 removal

device

Medical   Nebulizer

Maximum atomization

rate=0.2ml/min,

Mist particles (0-5-2um)

Noise ≤ 40dB (A)

Alert and Warning

Abnormal O2 concentration,

abnormal temperature

Abnormal sensor and CO2

concentration

Abnormal emergency hatch switch, etc

LED lighting board

Two way lighting control: warm light

Adjustable control with ten

levels of strength and weakness, medical

Special cold light lamp for

medical examination

Dehumidification

index

Automatic dehumidification

system,

The standard humidity is

controlled within

40%, actual humidity control is

less than 50%.

Divided into three levels: High/

Middle/Low High: 45%~50%

Middle : 40%-44%

Low :30%~39%

Fan control

(Ventilation

volume

adjustment)

LOW/MIDDLE/HIGH Low Medium High

Three level input speed

regulation

Oxygen input adjustment – low level

Temperature regulation – high level

Emergency ventilation start -

high level UV sterilization - mid- range

High CO2 concentration - high- end
