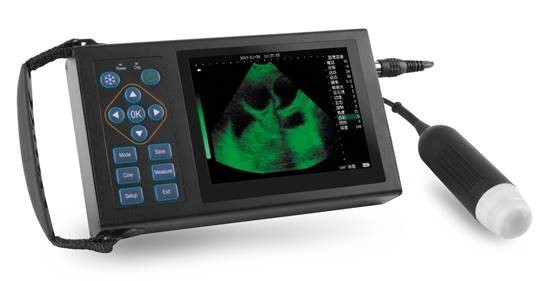

US-M10 Mechanical Ultrasonic Scanning Machine

Scanning mode

3.5m mechanical fan scanning

Display mode

B, M, BM, B + B, 4B

Preheat function

one button preheat function in winter, no need to   worry about the probe freezing

Frequency conversion

2.0MHZ, 2.5MHz, 3.5MHz, 4.0mhz, 5.0mhz

Routine measurement

distance, perimeter, area, volume, angle, heart   measurement and lean meat rate

Specialized measurement

it has the function of gestational weeks setting,   and can modify the gestational weeks of animals. Obstetric measurement of 8   kinds of animals

Image processing

gamma correction (0-7), frame correlation (0-3),   edge enhancement (0-3), left and right flip (0-1)

Storage

the built-in 8g storage can store tens of thousands   of pictures, and the external U disk storage can browse pictures on this   machine and transfer the built-in pictures to U disk

Dynamic range

0-135db

The maximum display depth is 270mm

Display magnification

16 level magnification adjustment

Interface

USB interface, video output interface (can connect   video printer and monitor), power interface, probe interface

Gain range

0-100db

Near field adjustment range

- 31 ~ 0

Far field adjustment range

0 ~ 31

With image rotation function, the image can be   flipped up, down, left and right

Energy saving setting

0-120 minutes can be adjusted step by step, set the   number of minutes in the specified time without operation, automatic power   off

Host size

206x120x35mm (length x width x height)

Main engine weight

950g
