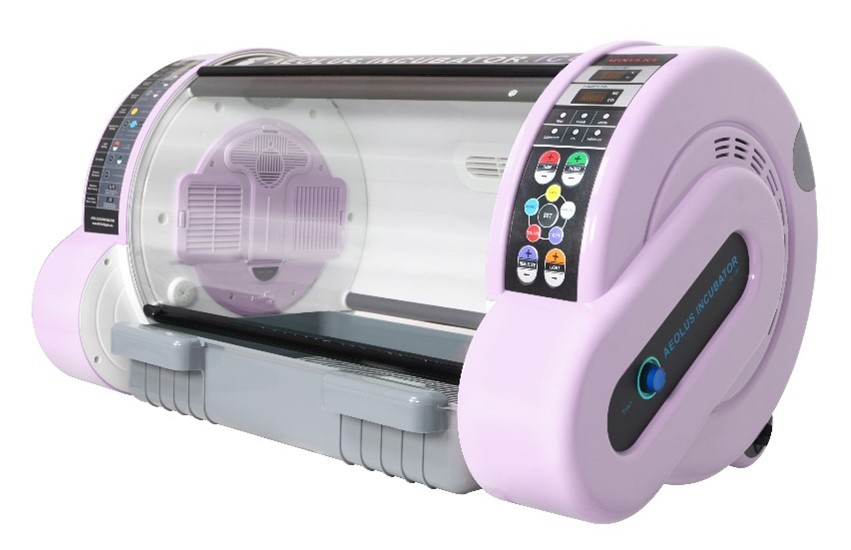

H-1803 Pet ICU Incubator

Introduction

As the successor to our classic H-1801, the H-1803 features:

• Modern purple exterior design

• Cost-optimized configuration

• Flexible nebulization options with external atomizer capability

Specifications

Power Requirements:
• Maximum Input Power: ≤400 VA

Operating Environment:
• Ambient Temperature Range: 10°C to 35°C (50°F to 95°F)

Temperature Control System:
• Adjustable Range: 15°C to 38°C (59°F to 100.4°F)

• Extendable to 39°C (102.2°F) via manual override
  • Temperature Stability: ±0.5°C (±0.9°F)
  • Maximum Temperature Fluctuation: ≤0.8°C (≤1.4°F)
  • Chamber Temperature Uniformity: ≤1.0°C (≤1.8°F) variation

Performance Characteristics:
• Warm-up Time: 5-20 minutes to operational temperature
• Acoustic Level: ≤30 dB (A-weighted) in monitoring mode

Physical Dimensions:
• Unit Size (W×D×H): 88 × 55 × 47 cm (34.6 × 21.7 × 18.5 inches)
