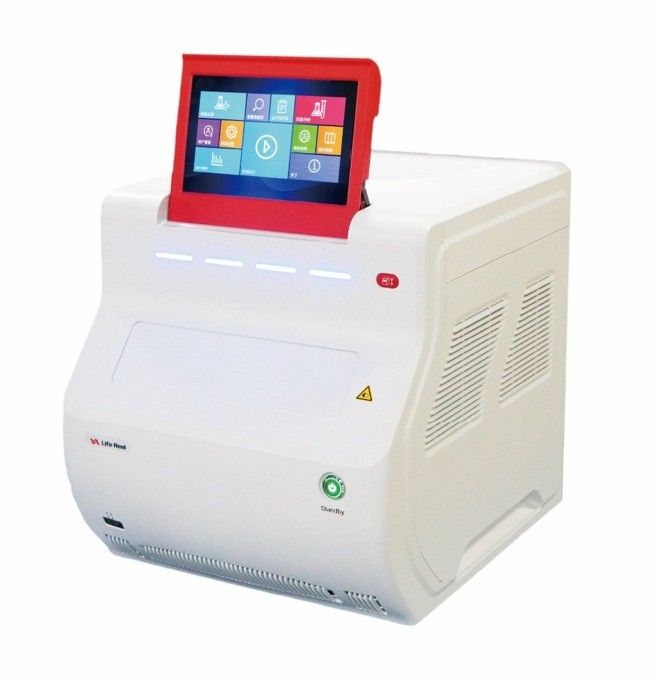

The AIGS - V Automatic Integrated Gene Detection System is designed for veterinary use, specifically targeting common infectious diseases in pets caused by viruses, bacteria, mycoplasma, chlamydia, and parasites. It integrates microfluidics, nano-superparamagnetic bead nucleic acid extraction, fluorescence real-time PCR, and enzyme/reagent preservation technologies within a fully-closed cartridge. This system automates the process from sample input to gene detection results, offering high sensitivity and avoiding the false positives common in conventional methods.

Key Features — AIGS-V

Fully-closed Microfluidic Kit, No Contamination
Real-time Fluorescent PCR Technology, High Sensitivity
From sample to report as less as in 1 hour
Multi-channel on-demand inspection, Timely diagnosis
Pathogen Quantitative Detection, Monitoring the treatment process
Multiplex Kits, Multiple Combinations

Get the price list by email

Model-specific documentation

Documents for AIGS-V

Check the covered model, language and document status before use. The manual supplied with the actual unit remains the controlling reference.

Product datasheet · English

AIGS-V Automatic Integrated Gene Detection System product datasheet

Public PDF

HQS datasheet for the AIGS-V: product overview, features and the technical specifications published for this model. Confirm the ordered configuration in your quotation.

Product overview
Features
Technical specifications

Covered model: AIGS-V
Length: 4 pages
File: PDF · 291 KB
Web copy prepared: 2026-09-25

View datasheet Download PDF

Need a different language or configuration-specific document?

Documentation center Request checklist Comparison worksheet

Automatic Integrated Gene Detection System Specifications

PARAMETERS	SPECIFICATIONS
Model	AIGS - V
Excitation light source	LED
Detector	PMT photomultiplier tube
Temperature control module	Semiconductor
Block temperature range	40° C - 99.9° C
Block temperature fluctuation	≤±0.5°C
Block temperature accuracy	≤0.5°C
Temperature display accuracy	0.1° C
Dyes	FAM 、 ROX 、 Cy5 、 HEX
Display	7 - inch color touch screen
Power supply	AC100 - 240V,50/60HZ,350W
Data connector	USB,WIFI,Network cable
Size	Length 380mmWidth 305mmHeight 343mm
Net Weight	16kg

Compare models in this series

Differences below are taken from the specifications published for each model. Confirm the final configuration in your quotation.

This model belongs to the AIGS-I series. The series overview lists every model side by side. Open series overview

Parameter	AIGS-I	AIGS-VThis model
Model	AIGS-I	AIGS - V
Block temperature fluctuation	≤0.3°C	≤±0.5°C
Dyes	F1:FAM 、 SYBER Green I F2:HEX 、 VIC F3:TEX RED 、 ROX F4:CY5	FAM 、 ROX 、 Cy5 、 HEX
Power supply	AC100 - 240V,50/60HZ,120W	AC100 - 240V,50/60HZ,350W
Size	Length 278mmWidth 190mmHeight 343mm	Length 380mmWidth 305mmHeight 343mm

Configuration

Single Target Detection Kit
2 Multiplex Kits
3 Multiplex Kits
4 Multiplex Kits

Options & accessories

Feline Parvovirus (FPX) Detection Kit DNA
Feline Coronavirus (FCoV) Detection Kit RNA
Feline Herpes Virus (FHV) Detection Kit DNA
Feline Calicivirus (FCV) Detection Kit RNA
Mycoplasma Feline (MF) Detection Kit DNA
Chlamydia Feline (CF) Detection Kit DNA
Feline Leukemia Virus (FeLV) Detection Kit RNA
Tox Gondii (ToxG) Detection Kit DNA
Leptospira (Lept) Detection Kit DNA
Barton’s Disease (Bar) Detection Kit DNA
Mycoplasma Haemophilus (Mha) Detection Kit DNA
Bordetella (BB) Detection Kit DNA
Babesia virus Detection Kit DNA
Canine Distemper Virus (CDV) Detection Kit RNA
Canine Parvovirus (CPV) Detection Kit DNA
Canine Coronavirus (CCov) Detection Kit RNA
Canine Herpes Virus (CHV) Detection Kit DNA
Rabies Virus (RV) Detection Kit RNA
Canine Adenovirus (CAH-1, hepatitis) Detection Kit DNA
Canine Adenovirus (CAH-2, respiratory tract) Detection Kit DNA
Canine Heartworm (DI) Detection Kit DNA
Feline Respiratory Duplex Test Kit (FCV+FHV)
Feline Respiratory Duplex Test Kit 2 (MF+CF)
Feline Diarrhea Duplex Test Kit (FCoV+FPV)
Canine Diarrhea Duplex Test Kit (CCoV+CPV)
Feline Anemia Duplex Test Kit 2 (FIV+FeLV)
Canine Respiratory Duplex Test Kit 2 (CAV2+BB)
Feline Anemia Duplex Test Kit (FeLV+ToxG)
Common Duplex Test Kit (ToxG+Lept)
Canine Respiratory Duplex Test Kit (CDV+CHV)
Feline Respiratory Triplex Test Kit (FCV+FHV+MF)
Feline Respiratory Triplex Test Kit 2 (FHV+ MF+CF)
Feline Stomatitis Triplex Test Kit (FHV+FCV+FeLV)
Canine Respiratory Triplex Test Kit(CDV+CAV2+BB)
Feline Respiratory Multiplex Test Kit (FCV+FHV+MF+CF)
Canine Respiratory Multiplex Test Kit (CHV+CDV+CaH-1+BB)

Warranty and after-sales service for AIGS-V

How HQS handles warranty, spare parts and repairs for this model.

Warranty period: The main-unit warranty varies by model and order. The period that applies is stated in your quotation and order confirmation; please confirm it before purchase.
What is covered: A malfunction caused by a manufacturing or quality defect within the warranty period is repaired free of charge. Consumables and accessories, damage from misuse, and units with an altered or removed serial label are not covered by the main-unit warranty.
Spare parts: Spare parts and technical support are available for at least eight years from the date HQS ships the product.
Response time: Service requests get a first reply within one business day. Please send the serial number, model, main-unit version and a description of the problem.
Repairs in warranty: If a confirmed warranty fault needs a replacement part, HQS ships the part at its own expense, and the faulty part is returned to HQS.
Repairs after warranty: HQS sends a cost-based quotation and proforma invoice first. Repaired parts are tested before they are returned. Technical help by email or phone is free.
