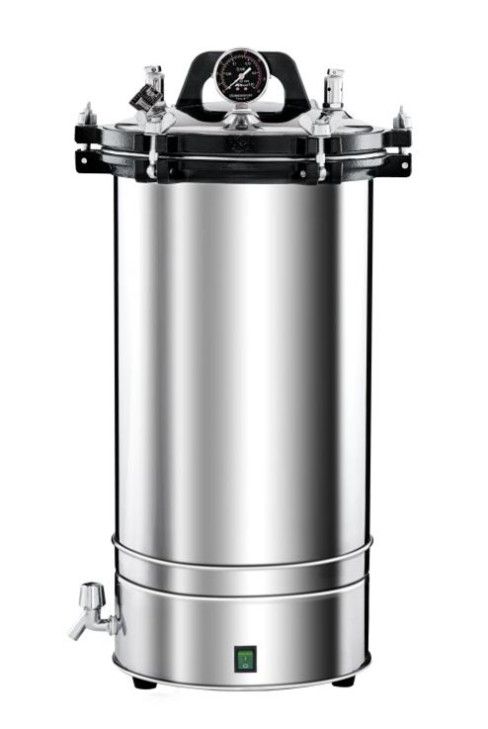

The YX - 280A Portable Pressure Steam Sterilizer features a robust full SUS 304 stainless steel structure for durability. It is designed for safety and reliability with an accurate double scale indication pressure gauge, a silicone seal to prevent steam leakage, and automatic pressure release. This sterilizer is easy to operate and comes in various volumes to suit different needs.
Model-specific documentation
Check the covered model, language and document status before use. The manual supplied with the actual unit remains the controlling reference.
Product datasheet · English
HQS datasheet for the YX-280A: product overview, features and the technical specifications published for this model. Confirm the ordered configuration in your quotation.
Model | YX - 280A (18L) | YX - 280A (24L) | YX - 280A (30L) |
|---|---|---|---|
Volume | 18L | 24L | 30L |
Max working temp. | 129 ℃ | 129 ℃ | 129 ℃ |
Max working pressure | 0.165Mpa | 0.165Mpa | 0.165Mpa |
Sterilization chamber | Φ 300*330mm | Φ 300*460mm | Φ 300*520mm |
Power | AC220V/50Hz/2.0K W | AC220V/50Hz/2.0K W | AC220V/50Hz/2.0K W |
Differences below are taken from the specifications published for each model. Confirm the final configuration in your quotation.
Buyer decision support
The YX-280 portable autoclaves share a SUS 304 stainless body, 129 °C / 0.165 MPa maximum and a Ø 300 mm chamber in 18, 24 or 30 L. The YX-280A is the basic electric model; the YX-280B can be heated by coal or electricity; the YX-280D adds dial setting of temperature and time (0–80 min); the YX-280DM adds an LED digital display and 0–999 min timing.
| Decision factor | Published for this model | Confirm before order |
|---|---|---|
| Chamber size | All models in 18 L (Ø 300 × 330 mm), 24 L (Ø 300 × 460 mm) or 30 L (Ø 300 × 520 mm) | Measure your tallest instrument packs and drums against the chamber depth before choosing the volume. |
| Working limits | Max working temperature 129 °C; max working pressure 0.165 MPa (all models) | Confirm the cycle temperatures and hold times your protocol requires fit within 129 °C. |
| Control | YX-280A, YX-280B: pressure gauge with double scale, manual timing; YX-280D: spin buttons to set temperature (115–129 °C) and time (0–80 min), status indicator lights; YX-280DM: LED digital display, settable temperature (RT–129 °C) and time (0–999 min) | Choose the YX-280D or YX-280DM if staff should set a cycle and leave the unit rather than watch the gauge. |
| Heating | All: AC 220 V 50 Hz, 2.0 kW electric; YX-280B: also dual-use coal and electricity heating | Choose the YX-280B for field or farm work where mains power is unreliable. |
| Safety | All: silicone seal, automatic release on overpressure. YX-280B: anti-dry protection. YX-280D, YX-280DM: automatic power-off on water shortage | Ask for spare seals and the safety valve service interval. |
Prepared by HQS Medical Product Team · Documentation reviewed:
Source: specifications currently published for this model. Verify the final configuration, documents and destination-market requirements in the quotation and supplied manual.
How HQS handles warranty, spare parts and repairs for this model.
