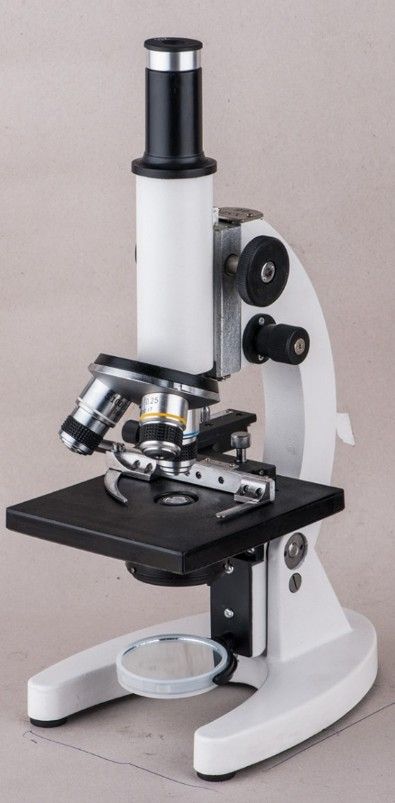

The XSP-06 Biological Microscope offers clear and precise observation with its Huygens eyepieces and achromatic objectives. It features a plain stage with a moving scale and an Abbe condenser with iris diaphragm for optimal illumination control. Illumination is provided by a concave-plan reflector, with an optional LED lamp available.
Model-specific documentation
Check the covered model, language and document status before use. The manual supplied with the actual unit remains the controlling reference.
Product datasheet · English
HQS datasheet for the XSP-06: product overview, features and the technical specifications published for this model. Confirm the ordered configuration in your quotation.
Specification | Value |
|---|---|
Viewing head | Monocular head |
Huygens eyepieces | H5X, H10X, H16X |
Achromatic objective | 10X, 40X, 100X |
Stage | Plain Stage with moving scale |
Stage size | 120mm*120mm |
Condenser | N.A=1.25 Abbe condenser, Iris diaphragm & filter |
Coarse adjustment range | 50mm |
Fine adjustment range | 1.8 - 2.2mm |
Illumination | Concave - plan reflector φ 50 mm (extra led lam optional) |
Buyer decision support
The XSP-06 is the highest-magnification model of the HQS XSP monocular biological microscopes. It comes with H5X, H10X and H16X Huygens eyepieces and 10X, 40X and 100X achromatic objectives, which gives 50× to 1600×. It has a 120 × 120 mm plain stage with moving scale, an N.A. 1.25 Abbe condenser with iris diaphragm and filter, a 50 mm coarse and 1.8–2.2 mm fine adjustment range, and a 50 mm concave-plan reflector with an extra LED lamp as an option. The XSP-03, XSP-04 and XSP-05 use the same stand and differ only in eyepieces: XSP-03 H5X and H10X (up to 1000×), XSP-04 adds H12.5X (1250×), XSP-05 adds H15X (1500×). Choose the XSP-06 if you want the widest magnification range in a basic monocular microscope; for routine 1000× slide work the XSP-03 is enough.
| Decision factor | Published for this model | Confirm before order |
|---|---|---|
| Optics | Monocular head; Huygens eyepieces H5X, H10X, H16X; achromatic objectives 10X, 40X, 100X. XSP-03: H5X, H10X; XSP-04: H5X, H10X, H12.5X; XSP-05: H5X, H10X, H15X | Ask whether the 100X objective is an oil-immersion lens and whether immersion oil is included. |
| Condenser | N.A. 1.25 Abbe condenser, iris diaphragm and filter | Ask which filter colour is supplied with the condenser. |
| Stage and focusing | Plain stage with moving scale, 120 × 120 mm; coarse adjustment range 50 mm; fine adjustment range 1.8–2.2 mm | Ask whether a mechanical stage can be fitted if you need to scan slides systematically. |
| Illumination | Concave-plan reflector φ50 mm; extra LED lamp optional | Say whether you want the LED lamp quoted, and its power supply voltage and plug type. |
Prepared by HQS Medical Product Team · Documentation reviewed:
Source: specifications currently published for this model. Verify the final configuration, documents and destination-market requirements in the quotation and supplied manual.
