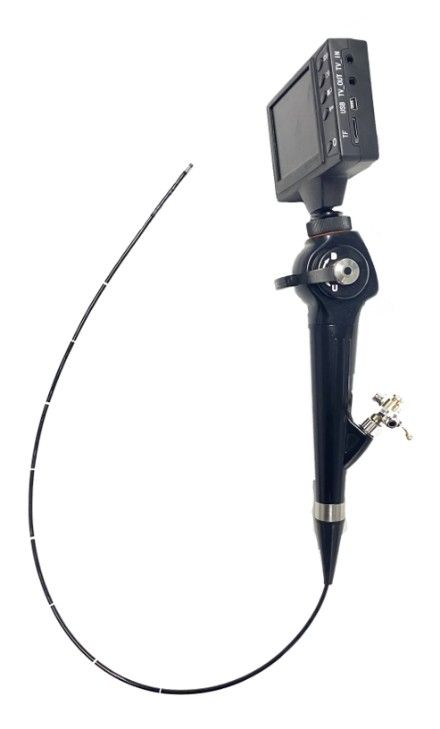

Portable Nasopharyngoscope/Bronchoscope FEC-12CA,FEC-12CB

Model: FEC-12CA,FEC-12CB

Introduction — Portable Nasopharyngoscope/Bronchoscope

The FEC-12CA and FEC-12CB are multifunctional, portable flexible endoscopes designed for veterinary use, suitable for pets such as turtles, rabbits, and hawks. These endoscopes feature a durable polycarbonate handle, a washable pipe system to prevent blockages, and a convenient, removable suction valve for comfortable operation. The advanced traction device allows for easy adjustment of the bending parts, enabling smooth and rapid navigation to the desired observation site for timely disease detection. Equipped with a 3.5-inch high-resolution display, these devices offer one-key camera functions for image brightness adjustment and electronic zoom, with easy disassembly for cleaning and disinfection. The multi-coated, high transmittance imaging system provides a wide field of view and clear images from 3-50mm, while the high-definition CMOS camera ensures clearer, brighter visuals for improved diagnostic accuracy.

Key Features — FEC-12CA,FEC-12CB

Multifunctional intubation portable flexible endoscope
Polycarbonate new composite handle with reasonable designed clamp hole position
Washable pipe system can protect the lotion unobstructed, to prevent the pipeline blockage
Convenient, removable, safe and reliable suction valve
Excellent operation of the traction device can easily transfer and adjust the bending parts to upward, downward
Smoothly and fastly reach to the desired site of observation
Timely and accurate detection of diseased tissue
3.5 inch high-resolution display
One key camera video image brightness electronic zoom, mediation
Easy removal and disassembly for cleaning and disinfection
Multi-coated high transmittance imaging system
Round field of view, wide viewing angle, wide field of view, the scene is broad and wide
Range of 3 - 50 mm can see more clear picture
Observation and diagnosis correctness greatly improved
High-definition CMOS camera makes users to get clearer, wider and brighter image

Get the price list by email

Model-specific documentation

Documents for FEC-12CA,FEC-12CB

Check the covered model, language and document status before use. The manual supplied with the actual unit remains the controlling reference.

Product datasheet · English

FEC-12CA,FEC-12CB Portable Nasopharyngoscope/Bronchoscope product datasheet

Public PDF

HQS datasheet for the FEC-12CA,FEC-12CB: product overview, features and the technical specifications published for this model. Confirm the ordered configuration in your quotation.

Product overview
Features
Technical specifications

Covered model: FEC-12CA,FEC-12CB
Length: 2 pages
File: PDF · 273 KB
Web copy prepared: 2026-09-25

View datasheet Download PDF

Need a different language or configuration-specific document?

Documentation center Request checklist Comparison worksheet

Portable Nasopharyngoscope/Bronchoscope Specifications

PARAMETER	HED-3112C1	HED-3112C2
View of field	120°	120°
Diameter of distal-end	Φ 3.0mm	Φ 3.8mm
Outer diameter of insert tube	Φ 2.8 mm	Φ 3.6 mm
Depth of view	3 - 50mm	3 - 50mm
Bending range	Up : 270° Down : 160°	Up : 180° Down : 130°
Clamp aperture	Φ 1.0mm	Φ 1 mm
Working length	600mm	600 mm
LCD	3.5 ”	3.5 ”

Configuration

Portable scope set
Leak detector set
Biopsy forceps
Cleaning brush
Attract valve anti jet cover set
Endoscope case set
Charger set
Video Output line
Certificate
User manual
Light guiding line

Warranty and after-sales service for FEC-12CA,FEC-12CB

How HQS handles warranty, spare parts and repairs for this model.

Warranty period: The main-unit warranty varies by model and order. The period that applies is stated in your quotation and order confirmation; please confirm it before purchase.
What is covered: A malfunction caused by a manufacturing or quality defect within the warranty period is repaired free of charge. Consumables and accessories, damage from misuse, and units with an altered or removed serial label are not covered by the main-unit warranty.
Spare parts: Spare parts and technical support are available for at least eight years from the date HQS ships the product.
Response time: Service requests get a first reply within one business day. Please send the serial number, model, main-unit version and a description of the problem.
Repairs in warranty: If a confirmed warranty fault needs a replacement part, HQS ships the part at its own expense, and the faulty part is returned to HQS.
Repairs after warranty: HQS sends a cost-based quotation and proforma invoice first. Repaired parts are tested before they are returned. Technical help by email or phone is free.
