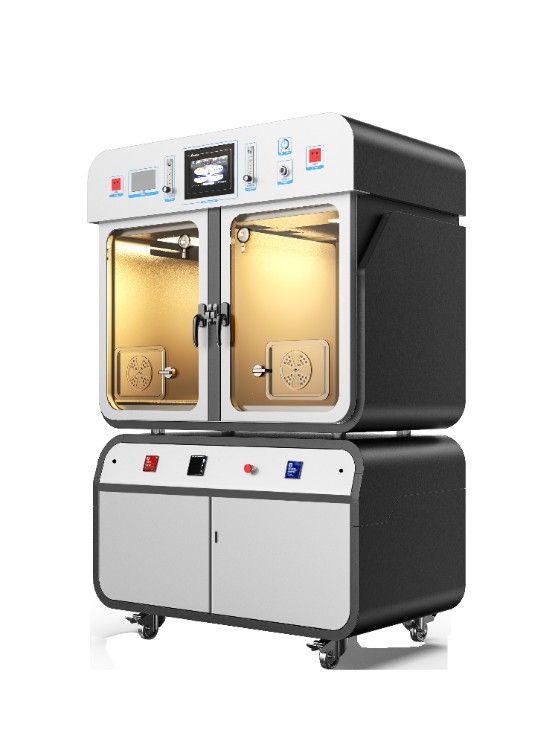

The Aerobic Full Function Animal Monitoring Cabin is an advanced medical equipment designed to provide comprehensive care for pets. It integrates multiple functions including constant temperature, constant oxygen, negative ion purification, nebulization therapy, blue light therapy, and ultraviolet sterilization. This versatile ICU unit is ideal for various scenarios such as temperature resuscitation, infusion, oxygen therapy, blue light nebulization, emergency rescue, and hospitalization observation for critically ill or weak animals.

Key Features — HICU-02

Rapid oxygen supply
Natural phototherapy
Extra-large space
Continuous monitoring
Safety guarantee
Unmanned power outage protection
Independent split type refrigeration
Intelligent automated printer
UVC ultraviolet sterilization
Open oxygen transfer
Circulation ventilation
Medical examination lamp
Simulated ecological sunlight lamp
Medical Blue Light
Emergency ventilation switch
Emergency operation window
CO2 purification
CO2 alarm
3D Constant Temperature
3D Constant Oxygen
Air pressure atomization
Infusion stand
Sleeping curtain
Sodium lime
Medical oxygen hose
24/7 monitoring: Real time monitoring is carried out through monitoring equipment to ensure the safety and stability of treatment.
CO2 emission: When the CO2 index reaches a certain value, it will automatically start discharging.
Constant temperature and humidity: creating a stable temperature and humidity environment, providing a comfortable treatment and rehabilitation environment.
Multiple purification: negative ion purification and ultraviolet disinfection to prevent cross infection.
Easy to operate: Simplified operation process, easy to use and manage.
Durable materials: Choose durable materials, reject inferior materials, and ensure stability and safety.
Pointer membrane resistance type touch screen
Emergency ventilation hatch
Greening air function
Micro printer
Intelligent automatic timed printing system
Alert and Warning: Abnormal O2 concentration, abnormal temperature, Abnormal sensor and CO2 concentration, Abnormal emergency hatch switch, etc
LED lighting board: Two way lighting control: warm light, Adjustable control with ten levels of strength and weakness, medical Special cold light lamp for medical examination
Oxygen input adjustment
Temperature regulation
Emergency ventilation start

Get the price list by email

Model-specific documentation

Documents for HICU-02

Check the covered model, language and document status before use. The manual supplied with the actual unit remains the controlling reference.

Product datasheet · English

HICU-02 Dual Unit Pet ICU Monitor product datasheet

Public PDF

HQS datasheet for the HICU-02: product overview, features and the technical specifications published for this model. Confirm the ordered configuration in your quotation.

Product overview
Features
Technical specifications

Covered model: HICU-02
Length: 5 pages
File: PDF · 439 KB
Web copy prepared: 2026-09-25

View datasheet Download PDF

Need a different language or configuration-specific document?

Documentation center Request checklist Comparison worksheet

Dual Unit Pet ICU Monitor Specifications

Specification	Value
External dimensions	Length 1200, Depth 650, Height 1720
Max Power consumption	1.6kw
Weight	220 KG
Average power consumption	0.8KW
Power Supply	AC100V/220V 50/60HZ (with grounding)
Power outage guarantee	With program control
Air conditioning method	Independent split refrigeration/ PTC heating
Negative ion medical purification function	(7.2X10Pcs/cm3X4)
Usage conditions	Indoor environment at -10 - 40 ° C
Setting temperature	Temperature control accuracy of 15 - 38 ° C ± 0.5 ° C
UV sterilization	UVC band 253nm
Set oxygen concentration	21~60%, control accuracy ±1%
Blue light medical system	Blue 415nm LED
Carbon dioxide concentration	Monitor and clear 300 - 5000PPM, Error margin of 10PPM
Medical Nebulizer	Maximum atomization rate=0.2ml/min, Mist particles (0.5 - 2um)
Noise	≤ 40dB (A)
Dehumidification index	Automatic dehumidification system
Fan control (Ventilation volume adjustment)	LOW/MIDDLE/HIGH

Compare models in this series

Differences below are taken from the specifications published for each model. Confirm the final configuration in your quotation.

This model belongs to the HICU-04 series. The series overview lists every model side by side. Open series overview

Parameter	HICU-02This model	HICU-04
Weight	220 KG	236KG
Setting temperature	Temperature control accuracy of 15 - 38 ° C ± 0.5 ° C	15 - 38 ° C ± 0.5 ° C
Carbon dioxide concentration	Monitor and clear 300 - 5000PPM, Error margin of 10PPM	300 - 5000PPM, Error margin of 10PPM

Configuration

8.4-inch touch color screen
Standard accessories: Infusion stand
Standard humidity is controlled within 40%
Actual humidity control is less than 50%
Three level input speed regulation
Low level

Options & accessories

High flow oxygen generator

Warranty and after-sales service for HICU-02

How HQS handles warranty, spare parts and repairs for this model.

Warranty period: The main-unit warranty varies by model and order. The period that applies is stated in your quotation and order confirmation; please confirm it before purchase.
What is covered: A malfunction caused by a manufacturing or quality defect within the warranty period is repaired free of charge. Consumables and accessories, damage from misuse, and units with an altered or removed serial label are not covered by the main-unit warranty.
Spare parts: Spare parts and technical support are available for at least eight years from the date HQS ships the product.
Response time: Service requests get a first reply within one business day. Please send the serial number, model, main-unit version and a description of the problem.
Repairs in warranty: If a confirmed warranty fault needs a replacement part, HQS ships the part at its own expense, and the faulty part is returned to HQS.
Repairs after warranty: HQS sends a cost-based quotation and proforma invoice first. Repaired parts are tested before they are returned. Technical help by email or phone is free.
