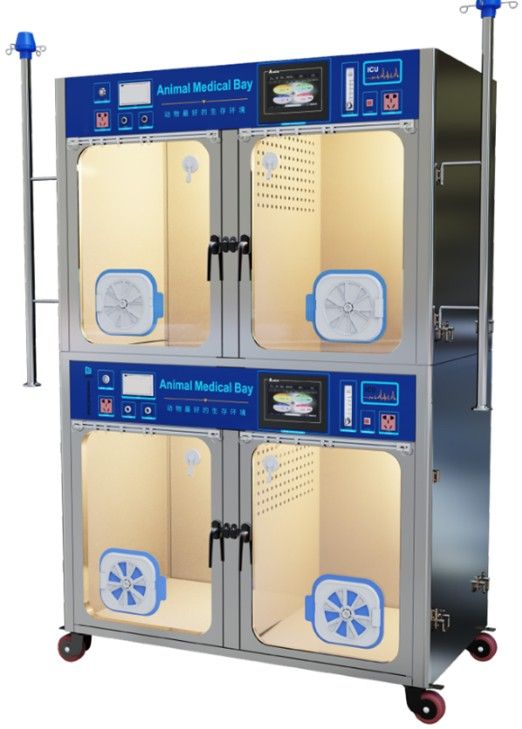

The HICU-04 is an upgraded and renovated version of the H ICU-01, designed for veterinary use. It retains the core functions of the first generation while improving its size and appearance for a more compact, easy-to-install, and mobile unit. Manufactured with strict material control for overall quality and durability, this ICU aims to provide an efficient and reliable environment for animal patient care.
Model-specific documentation
Check the covered model, language and document status before use. The manual supplied with the actual unit remains the controlling reference.
Product datasheet · English
HQS datasheet for the HICU-04: product overview, features and the technical specifications published for this model. Confirm the ordered configuration in your quotation.
Specification | Value |
|---|---|
External dimensions Length | 1290 |
External dimensions Depth | 660 |
External dimensions Height | 1890 |
Max Power consumption | 1.6kw |
Weight | 236KG |
Average power consumption | 0.8KW |
Power Supply | AC100V/220V 50/60HZ (with grounding) |
Power outage guarantee | With program control |
Air conditioning method | Independent split refrigeration/ PTC heating |
Setting temperature | 15 - 38 ° C ± 0.5 ° C |
UV sterilization | UVC band 253nm |
Set oxygen concentration | 21~60%, control accuracy ±1% |
Blue light medical system | Blue 415nm LED |
Carbon dioxide concentration | 300 - 5000PPM, Error margin of 10PPM |
Medical Nebulizer Maximum atomization rate | =0.2ml/min |
Mist particles | (0.5 - 2um) |
Noise | ≤ 40dB (A) |
Usage conditions | Indoor environment at - 10 - 40 ° C |
Differences below are taken from the specifications published for each model. Confirm the final configuration in your quotation.
| Parameter | HICU-02 | HICU-04This model |
|---|---|---|
| Weight | 220 KG | 236KG |
| Setting temperature | Temperature control accuracy of 15 - 38 ° C ± 0.5 ° C | 15 - 38 ° C ± 0.5 ° C |
| Carbon dioxide concentration | Monitor and clear 300 - 5000PPM, Error margin of 10PPM | 300 - 5000PPM, Error margin of 10PPM |
Buyer decision support
HQS lists two dual-unit pet ICU cabinets. The HICU-04 is a double-decker, four-cabin version that keeps the core functions of the earlier HICU-01 in a more compact body: 1290 × 660 × 1890 mm (L × D × H) and 236 kg. The HICU-02 is 1200 × 650 × 1720 mm and 220 kg. Both list 15–38 °C temperature setting with ±0.5 °C control accuracy, 21–60% oxygen with ±1% control, CO2 monitoring and removal at 300–5000 ppm, a nebuliser up to 0.2 ml/min, UVC 253 nm sterilisation, 415 nm blue LED light, independent split refrigeration with PTC heating, an 8.4-inch touch screen, automatic dehumidification, a timed micro printer, power-outage program control, 1.6 kW maximum and 0.8 kW average power, AC 100 V / 220 V 50/60 Hz with grounding, and noise of 40 dB(A) or less.
| Decision factor | Published for this model | Confirm before order |
|---|---|---|
| Size, weight and layout | HICU-04: double-decker, four cabins; external 1290 × 660 × 1890 mm (L × D × H); 236 kg. HICU-02: external 1200 × 650 × 1720 mm; 220 kg. Both: for indoor use at −10 to 40 °C | Ask for the interior size of each cabin and the packed size, and check doorways and floor loading on the delivery route. |
| Temperature, oxygen and humidity | Both: set temperature 15–38 °C, control accuracy ±0.5 °C; independent split refrigeration and PTC heating; oxygen 21–60%, control accuracy ±1%; automatic dehumidification, humidity controlled within 40% standard and below 50% actual (HICU-04: high 45–50%, middle 40–44% and low 30–39% levels); ventilation fan LOW / MIDDLE / HIGH | Tell us your oxygen source (cylinder, pipeline or concentrator); a high-flow oxygen generator is an option, not standard. |
| CO2, nebuliser and air treatment | Both: CO2 monitored and cleared at 300–5000 ppm, error 10 ppm, with soda lime and automatic CO2 discharge; medical nebuliser up to 0.2 ml/min, mist particles 0.5–2 µm; UVC 253 nm sterilisation; negative-ion purification (7.2 × 10 pcs/cm³ × 4) | Ask for the soda lime refill interval and UV lamp replacement schedule, and whether the UV system runs only with the cabin empty. |
| Lighting, controls and alarms | Both: 8.4-inch touch colour screen (monitor W171 × H128 mm, resistive touch); warm light with ten brightness levels and a cold examination light; 415 nm blue LED; intelligent timed micro printer; CO2 alarm (HICU-04 also lists alarms for abnormal oxygen concentration, temperature, sensor and emergency hatch); emergency ventilation hatch and emergency operation window; infusion stand, sleeping curtain and oxygen hose as standard accessories | Ask for the menu languages and printer paper type, and whether alarms can be sent to a remote station. |
| Power and noise | Both: AC 100 V / 220 V, 50/60 Hz, with grounding; maximum 1.6 kW, average 0.8 kW; power-outage protection with program control; noise 40 dB(A) or less | State your mains voltage and plug type; plan a grounded circuit for 1.6 kW and a UPS if outages are frequent. |
Prepared by HQS Medical Product Team · Documentation reviewed:
Source: specifications currently published for this model. Verify the final configuration, documents and destination-market requirements in the quotation and supplied manual.
