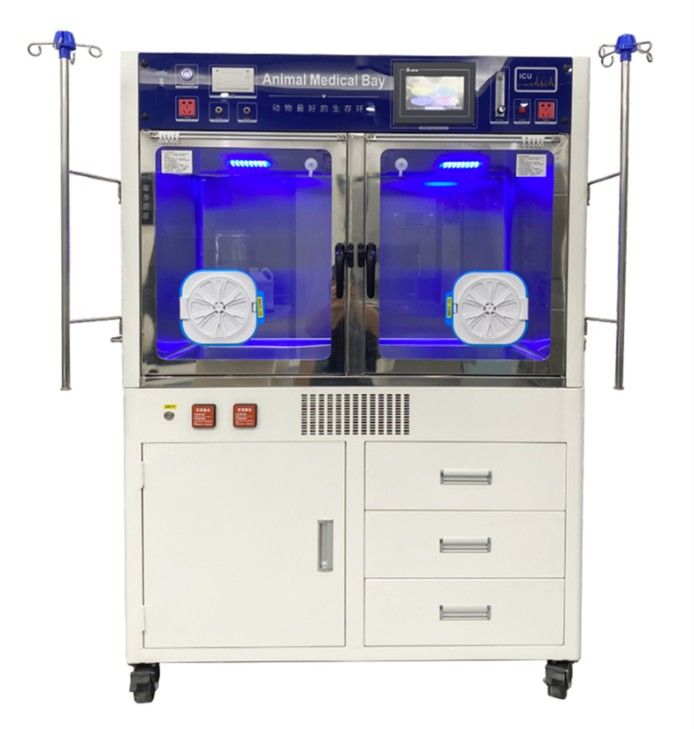

Pet ICU Monitor
Introduction to Pet ICU Monitor
This fully upgraded Pet ICU Monitor provides comprehensive medical protection for pets, emphasizing affordability and functionality. It retains core features like constant temperature, constant oxygen, blue light therapy, and ultraviolet sterilization, with significant improvements including a one-cabinet, three-drawer structure to meet diverse needs.
Key Features of HICU - 03
- Fully functional aerobic animal ICU
- Extra-large space
- Sealed oxygen chamber
- Natural phototherapy
- One cabinet + three drawers
- Continuous monitoring
- Efficient oxygen delivery
- Unmanned power outage protection
- Independent split type refrigeration
- Purification of high concentration negative ions
- Intelligent automated printer
- UVC ultraviolet sterilization
- Open oxygen transfer
- Circulation ventilation
- Medical examination lamp
- Simulated ecological sunlight lamp
- Medical Blue Light
- Emergency ventilation switch
- Emergency operation window
- CO2 purification
- CO2 alarm
- 3D Constant Temperature
- 3D Constant Oxygen
- Air pressure atomization
- Infusion stand
- Sleeping curtain
- Sodium lime
- Medical oxygen hose
- High flow oxygen generator (optional selection)
- 24/7 monitoring: Real time monitoring is carried out through monitoring equipment to ensure the safety and stability of treatment.
- CO2 emission: When the CO2 index reaches a certain value, it will automatically start discharging.
- Aseptic therapy: High oxygen aseptic therapy, infrared therapy, to enhance treatment effectiveness.
- Constant temperature and humidity: creating a stable temperature and humidity environment, providing a comfortable treatment and rehabilitation environment.
- Multiple purification: negative ion purification and ultraviolet disinfection to prevent cross infection.
- Easy to operate: Simplified operation process, easy to use and manage.
- Durable materials: Choose durable materials, reject inferior materials, and ensure stability and safety.
- Pointer membrane resistance type touch screen
- Negative ion medical purification function (7.2X10Pcs/cm3X4)
- High concentration negative ions
- Greening air function
- UV sterilization lamp; High concentration Negative ion air purification
- Intelligent automatic timed printing system
- Blue light medical system Blue 415nm LED
- Carbon dioxide concentration Monitor and clear 300 - 5000PPM, Error margin of 10PPM, Built in medical CO2 high - efficiency purification agent And automatic CO2 removal device
- LED lighting board Two way lighting control: warm light Adjustable control with ten levels of strength and weakness, medical Special cold light lamp for medical examination
- Automatic dehumidification system, The standard humidity is controlled within 40%, actual humidity control is less than 50%. Divided into three levels: High/ Middle/Low High: 45%~50% Middle : 40% - 44% Low :30%~39%
- Fan control (Ventilation volume adjustment) LOW/MIDDLE/HIGH
- Oxygen input adjustment – low level
- Temperature regulation – high level
- Emergency ventilation start - high level
- UV sterilization - mid - range
- High CO2 concentration - high - end
Pet ICU Monitor Specifications
Specification | Value |
|---|---|
External dimensions | Length 1290, Depth 660, Height 1750 |
Max Power consumption | 1.6kw |
Weight | 236KG |
Average power consumption | 0.8KW |
Power Supply | AC100V/220V 50/60HZ (with grounding) |
Power outage guarantee | With program control |
Emergency ventilation hatch | Air conditioning method Independent split refrigeration/ PTC heating |
Setting temperature | 15 - 38 ° C |
Temperature control accuracy | ±0.5 ° C |
UV sterilization system | UVC band 253nm |
Set oxygen concentration | 21~60%, control accuracy ±1% |
Medical Nebulizer | Maximum atomization rate=0.2ml/min, Mist particles (0 - 5 - 2um) |
Noise | ≤ 40dB (A) |
Alert and Warning | Abnormal O2 concentration, abnormal temperature Abnormal sensor and CO2 concentration Abnormal emergency hatch switch, etc |
Usage conditions | Indoor environment at - 10 - 40 ° C |
