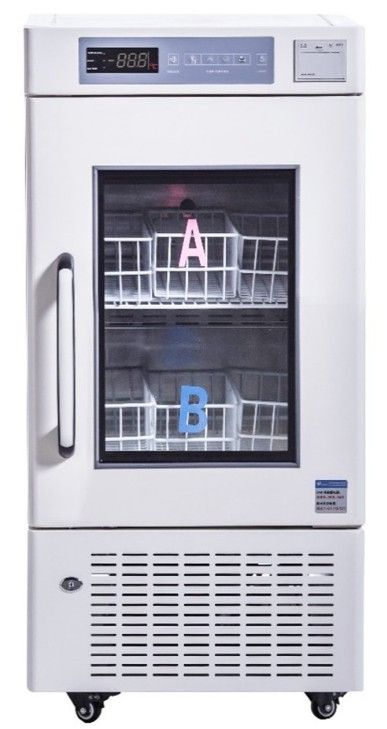

The BBR - V108 Blood Bank Refrigerator is designed for precise temperature control at 4°C, ensuring the integrity of stored blood products. It features a robust forced-air cooling system for frost-free operation and uniform temperature distribution, a three-layer toughened glass door with heating to prevent condensation, and a 304 stainless steel interior for durability and ease of cleaning. Safety features include a lockable door, password protection, an audible and visual alarm system with backup battery, and comprehensive power failure and controller error protection.
Model-specific documentation
Check the covered model, language and document status before use. The manual supplied with the actual unit remains the controlling reference.
Product datasheet · English
HQS datasheet for the BBR-V108: product overview, features and the technical specifications published for this model. Confirm the ordered configuration in your quotation.
Parameter | Value |
|---|---|
Capacity | 108L |
Temperature range | 4± 1 ℃ |
Ambient temperature | 10~32 ℃ |
Controller | Microprocessor |
Display | Digital display |
Compressor | 1 |
Refrigerant | R134a |
Cooling type | Forced-air cooling |
Defrost type | Frost free |
Power supply | 220V 50~60Hz; 115V 60Hz |
Rated power | 175W |
Electrical current | 1.0A |
Power consumption | 1.95kWh/24h |
Interior size (W*D*H) | 432*462*478mm |
Exterior size (W*D*H) | 540*630*1030mm |
Package size (W*D*H) | 700*585*1200mm |
NW/GW | 74/95KGS |
Loading quantity (20’/40’/40’H) | 32/68/68 |
Differences below are taken from the specifications published for each model. Confirm the final configuration in your quotation.
| Parameter | BBR-V108This model | BBR-V208 |
|---|---|---|
| Capacity | 108L | 208L |
| Rated power | 175W | 183W |
| Electrical current | 1.0A | 0.8A |
| Power consumption | 1.95kWh/24h | 2.22kWh/24h |
| Interior size (W*D*H) | 432*462*478mm | 432*462*978mm |
| Exterior size (W*D*H) | 540*630*1030mm | 540*640*1530mm |
| Package size (W*D*H) | 700*585*1200mm | 590*700*1700mm |
| NW/GW | 74/95KGS | 96/120KGS |
| Loading quantity (20’/40’/40’H) | 32/68/68 | 27/60/60 |
Buyer decision support
The BBR series comes in two cabinet sizes with the same 4 °C control, cooling and alarm design. Choose between BBR-V108 (108 L) and BBR-V208 (208 L) on storage volume and floor space, then confirm power supply and record-keeping needs.
| Decision factor | Published for this model | Confirm before order |
|---|---|---|
| Storage volume | BBR-V108: 108 L (interior 432 × 462 × 478 mm); BBR-V208: 208 L (interior 432 × 462 × 978 mm) | Estimate the number of blood bags and baskets needed at peak stock before choosing the cabinet size. |
| Footprint | BBR-V108: 540 × 630 × 1030 mm; BBR-V208: 540 × 640 × 1530 mm (W × D × H) | Check the installation space, door-opening clearance and ventilation space around the condenser. |
| Temperature control | 4 ± 1 °C, forced-air, frost free, ambient 10–32 °C | Confirm the room temperature where the unit will run stays within 10–32 °C. |
| Alarms | High/low temperature, power failure, sensor failure, door ajar, condenser abnormal, low battery | Confirm whether remote alarm output is required and how alarm events are recorded. |
| Power supply | 220 V 50–60 Hz or 115 V 60 Hz; 175 W (V108), 183 W (V208) | State the destination voltage and plug type in the enquiry. |
| Temperature records | Chart recorder optional | Confirm whether the chart recorder is included in the quotation if your procedures require printed temperature records. |
Prepared by HQS Medical Product Team · Documentation reviewed:
Source: specifications currently published for this model. Verify the final configuration, documents and destination-market requirements in the quotation and supplied manual.
