Ethylene Oxide Gas

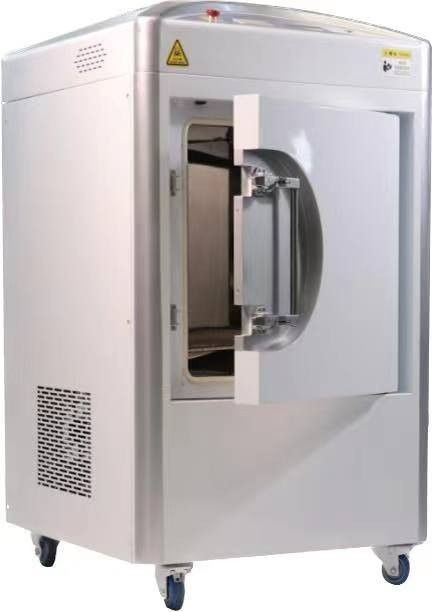

Ethylene Oxide Gas Sterilizer

Model: EO-HSeries

Introduction to Ethylene Oxide Gas Sterilizer

The EO-Hseries Ethylene Oxide Gas Sterilizer offers a vertical, electric heating solution for efficient sterilization. Available in multiple volumes (70L to 285L), it features a 3.5-inch LCD display, a 304 anti-corrosion stainless steel sterilization room, and a full-automatic control system for one-click operation. Advanced sensors monitor temperature, humidity, and pressure, ensuring precise sterilization conditions.

Key Features of EO-HSeries

3.5-inch LCD display
304 anti-corrosion stainless steel sterilization room
Automatic ventilation (5 cycles, every 15 minutes)
Full-automatic control system (one-click start to finish)
Oil-free vacuum pump

PARAMETER	SPECIFICATION
Product name	Ethylene Oxide Sterilizer
Product form	Vertical
Heating method	Electric heating
Power	Volume
Chamber Size	EO - H80: 2.6 KVA / 70L (Liner size: 585 x 275 x 422mm) EO - H120: 3.0KVA / 105L (Liner size:585 x 375 x 472mm) EO - H220: 3.3KVA / 195L (Liner size:700 x 505 x 552mm) EO - H330: 3.6KVA / 285L (Liner size:760 x 545 x 682mm)
Power	AC220V, 50Hz
Temperature display	3.5 inch LCD display
Material of Sterilization Room	304 anti - corrosion stainless steel
Outer box material	Carbon steel spray plastic
Temperature during sterilization	50 ℃ ± 3 ℃
Working pressure	- 60kpa
Highest anti - stress value	- 140kpa
Humidity during sterilization	45% - 80%
Selected gas	Pure ethylene oxide gas
Sterilization time	0 - 99 hours adjustable
Air Replacement	Automatic ventilation, 5 cycles of ventilation, every 1 5 minutes
Full - automatic control system	One - click start to finish, the whole process is completed automatically
Sterilization record	The system can store 500 pots of sterilization records
Display status	Display operating status, temperature, humidity, pressure, sterilization time, residual gas treatment time, times, steam generator temperature.
Humidity Sensor	The built - in humidity sensor automatically detects the humidity in the cavity.
Pressure Sensor	The built - in pressure sensor automatically d etects the pressure in the cavity
Temperature Sensor	The built - in temperature sensor automatically detects the temperature in the cavity, the accurate range is 50 ℃ ± 3 ℃ .
Vacuum system	Use oil - free vacuum pump.
Seal door	304 stainless steel aluminum material, thickness ≥ 2mm, pressure resistance 200Kpa.
Humidification System	Using pulse steam humidification
Residual gas treatment device	The filtration rate of the filter to the particle diameter ≥0.3 μ m is not less than 99.5%
Vacuum rate	Under no - load con ditions, the time for the sterilizer to be vacuumed from normal pressure to - 60 kPa ≤ 30 min
Automatic dosing	Puncture technology built into the sterilization chamber.
Heating system	The explosion - proof electric heating device is used in the sterilization chamber
Multiple protection functions	With over - voltage and over - temperature protection functions, it is more safe and reliable
Alarm system	Have high temperature alarm system, ultra low pressure alarm system
