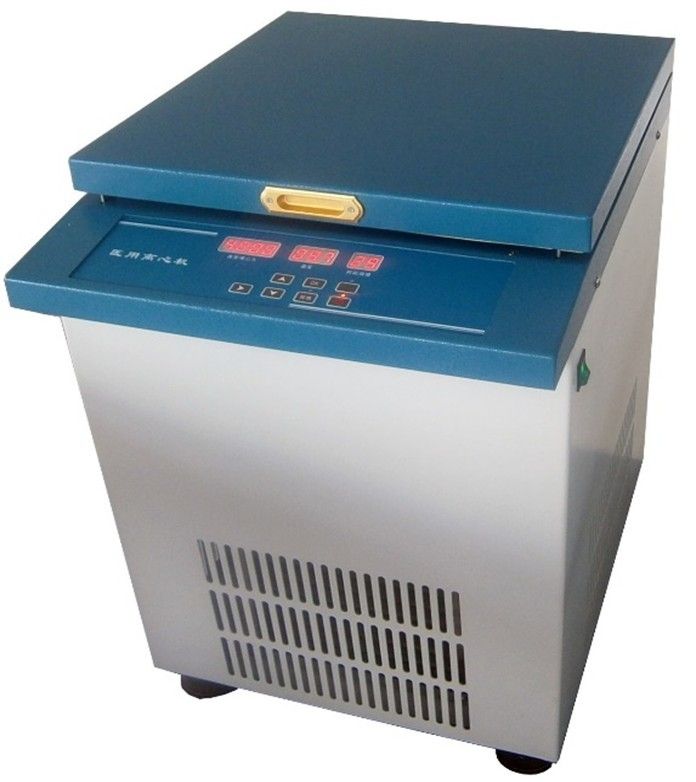

The LC-05F is a low-speed refrigerated centrifuge designed for the separation of suspended substances from liquids. It is suitable for use in research institutes across biology, chemistry, public health, medicine, food, and environmental protection.
Model-specific documentation
Check the covered model, language and document status before use. The manual supplied with the actual unit remains the controlling reference.
Product datasheet · English
HQS datasheet for the LC-05F: product overview, features and the technical specifications published for this model. Confirm the ordered configuration in your quotation.
Specification | Value |
|---|---|
Time | 0 - 99min |
Max RCF | 4390xg |
Temperature range | - 5 ℃ ~ +30 ℃ |
Temperature precision | ± 2 ℃ |
Voltage | 220V 50Hz |
Max RPM | 5000RPM, stepless speed adjustment |
Max capacity | swing rotor 250ml*4, 50ml*8, 15ml*24, 10ml*36 |
Dimension | 500*560*700mm |
Weight | 85kg |
Differences below are taken from the specifications published for each model. Confirm the final configuration in your quotation.
| Parameter | LC-04F | LC-05FThis model |
|---|---|---|
| Max RCF | 2755xg | 4390xg |
| Max RPM | 4000RPM, stepless speed adjustment | 5000RPM, stepless speed adjustment |
| Max capacity | swing rotor 100ml*4, 50ml*8, 15ml*16, 10ml*24 | swing rotor 250ml*4, 50ml*8, 15ml*24, 10ml*36 |
Buyer decision support
LC-04F and LC-05F share the same cabinet, temperature range and controls. The LC-05F adds higher speed and larger swing-rotor capacity, so the choice depends on the tube volumes and RCF your protocols need.
| Decision factor | Published for this model | Confirm before order |
|---|---|---|
| Speed and force | LC-05F: 5000 rpm, 4390 ×g; LC-04F: 4000 rpm, 2755 ×g | Check the RCF stated in your separation protocols against the rotor you intend to order. |
| Rotor capacity | LC-05F: swing rotor 250 ml × 4, 50 ml × 8, 15 ml × 24, 10 ml × 36; LC-04F: 100 ml × 4, 50 ml × 8, 15 ml × 16, 10 ml × 24 | Confirm which rotors and adapters are included; the LC-04F page lists three swing rotors as standard. |
| Temperature | −5 °C to +30 °C, ± 2 °C | Confirm the time needed to pre-cool to your working temperature. |
| Cabinet | Both 500 × 560 × 700 mm, 85 kg | Check bench load capacity and access space for opening the lid. |
| Power supply | 220 V 50 Hz | Confirm voltage and frequency for the destination country. |
| Safety | Safety switch, electromagnetic door lock, automatic malfunction alarm, error-code display | Ask for the error-code list and the recommended rotor inspection interval. |
Prepared by HQS Medical Product Team · Documentation reviewed:
Source: specifications currently published for this model. Verify the final configuration, documents and destination-market requirements in the quotation and supplied manual.
How HQS handles warranty, spare parts and repairs for this model.
