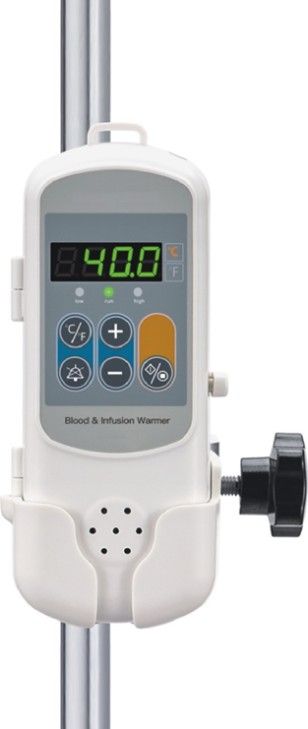

The Veterinary Blood and Infusion Warmer is designed to warm blood or fluids, providing relief in hypothermia cases for veterinary use. It efficiently transmits heat to the IV set, reaching a preset temperature with a deviation within ±1°C, making it widely applicable for blood or infusion transfusions. This warmer offers warm care in cold environments.
Model-specific documentation
Check the covered model, language and document status before use. The manual supplied with the actual unit remains the controlling reference.
Product datasheet · English
HQS datasheet for the H-110C: product overview, features and the technical specifications published for this model. Confirm the ordered configuration in your quotation.
PARAMETER | SPECIFICATION |
|---|---|
Temperature Setting ° C | 35.0° C ~ 42.0° C |
° F | 95.0 ° F~ 107.6 ° F |
Temperature Accuracy ° C | ≤ ±1°C |
° F | ≤±1 .8 ° F |
Increment ° C | 0. 1° C |
° F | 0.2 ° F |
Optional Unit | ° C or ° F |
Warming Up Time | ≤ 2 mins |
Overheat Protection | 46 ° C ,hardware and software protection |
Alarm | Overheat, low temperature, system error, door open, warming up alarm |
Installation Way | IV Knob |
Power Supply Input | 100 - 240V(AC Power),50/60HZ,0.3 - 0.7A |
Output | 12V(DC Power) 2.5A |
Power Consumption | 85VA |
Operating Environment Temp. | +5° C - +30° C |
Relative Humidity | 20% - 80% |
Atmosphere | 76.0kPa - 106.0kPa |
Transportation and Storage Environment Temp. | - 20 ° C - + 55 ° C |
Relative Humidity | 1 0% - 93 % |
Atmosphere | 50.0kPa - 106.0kPa |
Degree of Protection against Ingress of Liquids | IPX1 |
Degree of Protection against Electric Shock | Class II, Type CF |
Dimension | 180x70x35mm |
Net Weight | 0.2kg; with knob:0.4kg |
Differences below are taken from the specifications published for each model. Confirm the final configuration in your quotation.
| Parameter | H-110CThis model | H-110V |
|---|---|---|
| ° F | 95.0 ° F~ 107.6 ° F | 86.9 ° F~ 107.6 ° F |
| Warming Up Time | ≤ 2 mins | ﹤ 4 mins |
Buyer decision support
The H-110C is the compact clip-on model in this HQS blood and fluid warmer series. A heating board with long, middle and short grooves warms a standard single-use PVC blood or IV tube (3.4–4.5 mm diameter) to a set temperature of 35.0–42.0 °C (95.0–107.6 °F) in 0.1 °C steps, with accuracy of ≤ ±1 °C, a warm-up time of 2 minutes or less, 46 °C hardware and software overheat protection, overheat, low-temperature, system-error, door-open and warming-up alarms, an LED display and continuous heating. It runs from a 100–240 V, 50/60 Hz supply with a 12 V DC, 2.5 A output, draws 85 VA, is rated IPX1 and Class II, Type CF, measures 180 × 70 × 35 mm and weighs 0.2 kg (0.4 kg with the IV knob); a hanger is optional. The H-110V warms the line through a dry silicone heating profile instead: profiles of 60, 90, 100, 120 or 140 cm take 3.5–7 mm tubes, and it has a 46 × 72 mm display of set and actual temperature, time, alarms and status, a 00h00min–99h59min heating timer, 50 ± 5 °C overheat protection, a warm-up time under 4 minutes, 60 VA, IPX4, 140 × 110 × 170 mm and 0.86 kg with one 120 cm profile. Choose the H-110C for a light unit clamped to the drip stand on standard IV lines; choose the H-110V for longer warmed tubing, larger-bore lines, a heating timer or IPX4 splash protection.
| Decision factor | Published for this model | Confirm before order |
|---|---|---|
| Temperature control | Both: setting 35.0–42.0 °C; accuracy ≤ ±1 °C (≤ ±1.8 °F); increment 0.1 °C (0.2 °F); °C or °F selectable. H-110C: warm-up time ≤2 min; overheat protection 46 °C, hardware and software. H-110V: warm-up time <4 min; overheat protection 50 ± 5 °C, hardware and software | Tell us the flow rates you use for transfusions and fluid boluses, so we can confirm whether the H-110C groove length or a longer H-110V profile suits them. |
| Tubing and heating method | H-110C: heating board with long, middle and short grooves; standard single-use PVC blood or IV tubes, diameter 3.4–4.5 mm. H-110V: dry silicone heating profile; IV tubes 3.5–7 mm; heating profile 60, 90, 100, 120 or 140 cm optional | Send the outer diameter of the blood and infusion sets you buy locally, and say which H-110V profile lengths should be quoted. |
| Alarms and display | Both: overheat, low temperature, system error, door open and warming-up alarms; continuous heating. H-110C: LED display. H-110V: 46 × 72 mm display of preset temperature, heating temperature, time, alarm message and working status; mute time 2 min; heating time 00h00min–99h59min | Ask for the alarm descriptions in the user manual and how the door-open alarm behaves when the tube is changed. |
| Power and protection class | H-110C: input 100–240 V AC, 50/60 Hz, 0.3–0.7 A; output 12 V DC, 2.5 A; 85 VA; IPX1; Class II, Type CF. H-110V: 100–240 V, 50–60 Hz; 60 VA; IPX4; Class II, Type CF | State your plug type so the power supply matches your sockets. |
| Size, mounting and environment | H-110C: 180 × 70 × 35 mm; 0.2 kg, 0.4 kg with knob; IV knob installation, hanger optional; operating 5–30 °C, 20–80% RH. H-110V: 140 × 110 × 170 mm; 0.86 kg with one 120 cm heating profile; operating 5–30 °C, 20–93% RH | Check your IV pole diameter for the knob clamp, and say whether the hanger should be added to the quotation. |
Prepared by HQS Medical Product Team · Documentation reviewed:
Source: specifications currently published for this model. Verify the final configuration, documents and destination-market requirements in the quotation and supplied manual.
