HQS Vetcare delivers high-precision veterinary anesthesia equipment with a ventilation management system, suitable for animal hospitals, pet clinics, and animal laboratories. This anesthesia machine's technical specifications meet the needs of general anesthesia and medical research on a wide range of animals.
Model-specific documentation
Check the covered model, language and document status before use. The manual supplied with the actual unit remains the controlling reference.
User manual · English
Configuration-controlled instructions covering the anesthesia system, ventilator, pre-operation checks, installation, cleaning, maintenance and fault diagnosis.
Product datasheet · English
HQS datasheet for the H1200-2: product overview, features and the technical specifications published for this model. Confirm the ordered configuration in your quotation.
PARAMETER | SPECIFICATION |
|---|---|
Vet M ain Unit Ventilation mode | Open, closed, half - closed, half - open |
Drive mode | pneumatic |
Application | 0.5 - 100kg animal |
Vaporizer | Choose one from Isoflurane, Sevoflurane, Halothane |
Oxygen Flush | 25L/min~75L/min |
Gas source pressure | Oxygen 0.25Mpa~0.65Mpa |
Trolley | High - quality aluminum alloy profile, with storage frame and special interface for exhaust gas emission |
Power supply | 220V± 10%, 50HZ± 1% |
Buyer decision support

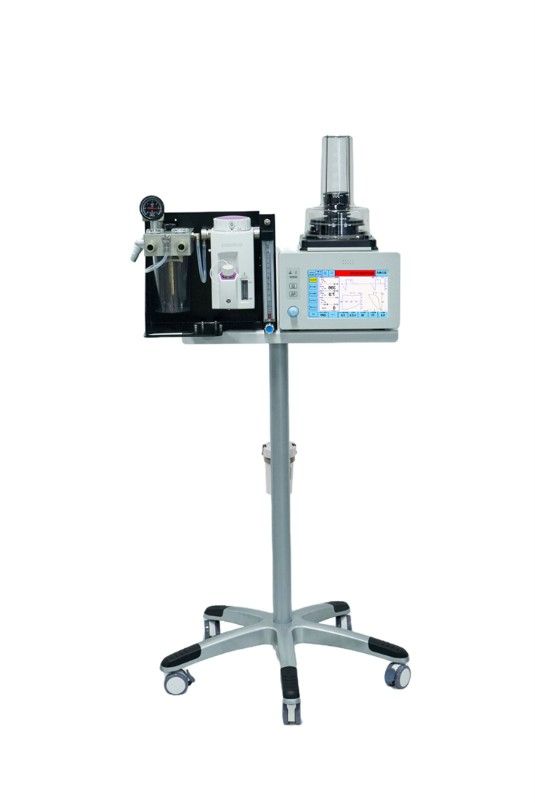

The H1200-2 is the HQS veterinary anaesthesia machine with a built-in anaesthesia ventilator, for animals from 0.5 to 100 kg in clinics, hospitals and laboratories. The pneumatic main unit supports open, closed, half-closed and half-open circuits, has an oxygen flowmeter scaled 0–5 L/min, oxygen flush of 25–75 L/min and works from an oxygen supply of 0.25–0.65 MPa. One vaporizer is included (isoflurane 0.2–5%, sevoflurane 0.2–8% or halothane; flow 0.2–15 L/min; 340 ml dry or 300 ml wet capacity; Selectatec or cage mount). The ventilator has a 9-inch touch screen with PCV, VCV, SPONT and DEMO modes, big-animal (300–1500 ml) and small-animal (50–300 ml) bellows, tidal volume 20–1600 ml in auto control or 5–1600 ml in manual control, 1–100 bpm, I:E 9.9:1 to 1:9.9, PEEP off or 3–20 cmH2O and pressure support 5–60 cmH2O, with pressure, flow and volume waveforms and PV, PF and FV loops. The soda lime canister holds 500–700 ml and the animal breathing circuit can be autoclaved at 134 °C. Compared with the H1200-1, which lists V-60V and V-80V ventilators as options, the H1200-2 has the ventilator in the standard configuration; the trolley is optional on both.
| Decision factor | Published for this model | Confirm before order |
|---|---|---|
| Patients and circuits | 0.5–100 kg animals; open, closed, half-closed and half-open ventilation; pneumatic drive; oxygen supply 0.25–0.65 MPa; oxygen flowmeter 0–5 L/min; oxygen flush 25–75 L/min | Tell us your smallest and largest patients and your oxygen source (cylinder or pipeline), so we can confirm circuits and hoses. |
| Vaporizer | One vaporizer: isoflurane 0.2–5%, sevoflurane 0.2–8% or halothane; flow 0.2–15 L/min; capacity 340 ml dry / 300 ml wet; Selectatec or cage mount | Choose the anaesthetic agent and mounting type; only one vaporizer is in the standard configuration. |
| Ventilator | 9-inch touch screen; PCV, VCV, SPONT, DEMO; bellows 300–1500 ml (big animal) and 50–300 ml (small animal); tidal volume auto 20–1600 ml, manual 5–1600 ml; 1–100 bpm; I:E 9.9:1 to 1:9.9; inspiratory time 0.1–10.0 s; inspiratory pause 0–50%; PEEP off, 3–20 cmH2O; pressure support 5–60 cmH2O; flow trigger 0.5–20 L/min; pressure trigger −1 to 20 cmH2O | Ask which bellows are supplied as standard and which tidal volume range applies to each bellows. |
| Monitoring and alarms | Monitors tidal volume, breathing rate, spontaneous breathing rate, I:E, minute ventilation, peak and average airway pressure, PEEP, plateau pressure and FiO2; alarms for tidal volume, minute volume, frequency, airway pressure, continuous airway pressure, negative pressure, apnea, gas supply failure, power and battery; FiO2 and FiCO2 alarms optional | Say whether you need the optional FiO2 or FiCO2 functions included in the quotation. |
| Absorber and configuration | Soda lime canister 500–700 ml with quick replacement; breathing circuit autoclavable at 134 °C; pop-off valve releases at 2 cmH2O when fully open; standard set: main unit, ventilator, one vaporizer, breathing circuit, gas source hose, exhaust gas absorption system, corrugated pipeline, test lung; power 220 V ± 10%, 50 Hz ± 1% | List any optional items you want quoted: trolley, non-rebreathing circuit, endotracheal tubes, laryngoscope, soda lime or active carbon. |
Prepared by HQS Medical Product Team · Documentation reviewed:
Source: H1200-2 Veterinary Anaesthesia Machine model brochure. Verify the final configuration, documents and destination-market requirements in the quotation and supplied manual.
